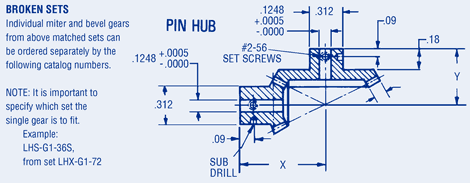

Miter & Bevel Gears-Pin Hub-Broken sets-72 Pitch
|
|
| NOTE: THIS IS A SPLIT SET - ONLY ONE GEAR WILL BE SUPPLIED. For a matched set remove S from p/n. For -30S specify what set this will be used with. | |
- T= Number of Teeth
- PD = Pitch Diameter
- M= Material
| Part | Number of Teeth | Pitch Diameter | Material | |
|---|---|---|---|---|
| Buy | View | |||
| LHA-G1-24S | 24 | .333 | Aluminum | |
| LHA-G1-36S | 36 | .500 | Aluminum | |
| LHA-G1-54S | 54 | .750 | Aluminum | |
| LHA-G1-72S | 72 | 1.000 | Aluminum | |
| LHA-G1-108S | 108 | 1.500 | Aluminum | |
| LHA-G1-144S | 144 | 2.000 | Aluminum | |
| LHS-G1-24S | 24 | .333 | 303 Stainless Steel | |
| LHS-G1-36S | 36 | .500 | 303 Stainless Steel | |
| LHS-G1-54S | 54 | .750 | 303 Stainless Steel | |
| LHS-G1-72S | 72 | 1.000 | 303 Stainless Steel | |
| LHS-G1-108S | 108 | 1.500 | 303 Stainless Steel | |
| LHS-G1-144S | 144 | 2.000 | 303 Stainless Steel | |
