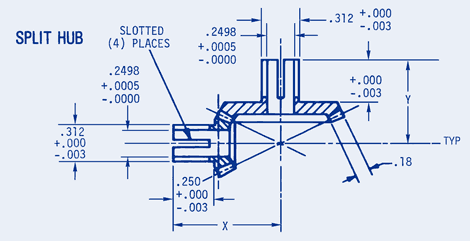

Miter & Bevel Gears-Split Hub-Broken sets-48 Pitch
|
|
| NOTE: THIS IS A SPLIT SET - ONLY ONE GEAR WILL BE SUPPLIED. To order a matched set remove S from p/n. For -30S specify what set this will be used with. Aluminum gears anodized before gear cutting. | |
- T= Number of Teeth
- PD = Pitch Diameter
- M= Material
| Part | Number of Teeth | Pitch Diameter | Material | |
|---|---|---|---|---|
| Buy | View | |||
| LHA-E5-30S | 30 | .625 | 2024-T4 Aluminum | |
| LHA-E5-45S | 45 | .937 | 2024-T4 Aluminum | |
| LHA-E5-60S | 60 | 1.250 | 2024-T4 Aluminum | |
| LHA-E5-90S | 90 | 1.875 | 2024-T4 Aluminum | |
| LHA-E5-120S | 120 | 2.500 | 2024-T4 Aluminum | |
| LHS-E5-30S | 30 | .625 | 303 Stainless Steel | |
| LHS-E5-45S | 45 | .937 | 303 Stainless Steel | |
| LHS-E5-60S | 60 | 1.250 | 303 Stainless Steel | |
| LHS-E5-90S | 90 | 1.875 | 303 Stainless Steel | |
| LHS-E5-120S | 120 | 2.500 | 303 Stainless Steel | |
