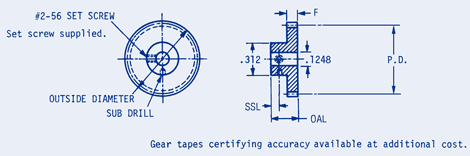

Spur Gear-Pin Hub-120 Pitch
|
|
| AGMA Quality 10 gears. 20 degree pressure angle. Aluminum gears are anodized before gear cutting. | |
- T= Number of Teeth
- PD = Pitch Diameter
- F = Face Width
- OD = Outside Diameter
- OAL = Overall Length
- SSL = Set Screw Length
- M= Material
| Part | Number of Teeth | Pitch Diameter | Face Width | Outside Diameter | Overall Length | Set Screw Length | Material | |
|---|---|---|---|---|---|---|---|---|
| Buy | View | .09000 | ||||||
| LAA-K1-30 | 30 | .2500 | .062 | .267 | .250 | .09 | 2024-T4 Aluminum | |
| LAA-K1-33 | 33 | .2750 | .062 | .292 | .250 | .09 | 2024-T4 Aluminum | |
| LAA-K1-36 | 35 | .3000 | .062 | .317 | .250 | .09 | 2024-T4 Aluminum | |
| LAA-K1-42 | 42 | .3500 | .062 | .367 | .250 | .09 | 2024-T4 Aluminum | |
| LAA-K1-45 | 45 | .3750 | .062 | .392 | .250 | .09 | 2024-T4 Aluminum | |
| LAA-K1-48 | 48 | .4000 | .062 | .417 | .250 | .09 | 2024-T4 Aluminum | |
| LAA-K1-54 | 54 | .4500 | .062 | .467 | .250 | .09 | 2024-T4 Aluminum | |
| LAA-K1-60 | 60 | .5000 | .062 | .517 | .250 | .09 | 2024-T4 Aluminum | |
| LAA-K1-66 | 66 | .5500 | .062 | .567 | .250 | .09 | 2024-T4 Aluminum | |
| LAA-K1-72 | 72 | .6000 | .062 | .617 | .250 | .09 | 2024-T4 Aluminum | |
| LAA-K1-78 | 78 | .6500 | .062 | .667 | .250 | .09 | 2024-T4 Aluminum | |
| LAA-K1-84 | 84 | .7000 | .062 | .717 | .250 | .09 | 2024-T4 Aluminum | |
| LAA-K1-90 | 90 | .7500 | .062 | .767 | .250 | .09 | 2024-T4 Aluminum | |
| LAA-K1-96 | 96 | .8000 | .062 | .817 | .250 | .09 | 2024-T4 Aluminum | |
| LAA-K1-102 | 102 | .8500 | .062 | .867 | .250 | .09 | 2024-T4 Aluminum | |
| LAA-K1-108 | 108 | .9000 | .062 | .916 | .250 | .09 | 2024-T4 Aluminum | |
| LAA-K1-114 | 114 | .9500 | .062 | .967 | .250 | .09 | 2024-T4 Aluminum | |
| LAA-K1-120 | 120 | 1.0000 | .062 | 1.017 | .250 | .09 | 2024-T4 Aluminum | |
| LAA-K1-126 | 126 | 1.0500 | .062 | 1.067 | .250 | .09 | 2024-T4 Aluminum | |
| LAA-K1-127 | 127 | 1.0583 | .062 | 1.075 | .250 | .09 | 2024-T4 Aluminum | |
| LAA-K1-132 | 132 | 1.1000 | .062 | 1.117 | .250 | .09 | 2024-T4 Aluminum | |
| LAA-K1-138 | 138 | 1.1500 | .062 | 1.167 | .250 | .09 | 2024-T4 Aluminum | |
| LAA-K1-144 | 144 | 1.2000 | .062 | 1.217 | .250 | .09 | 2024-T4 Aluminum | |
| LAA-K1-150 | 150 | 1.2500 | .062 | 1.267 | .250 | .09 | 2024-T4 Aluminum | |
| LAA-K1-156 | 156 | 1.3000 | .062 | 1.317 | .250 | .09 | 2024-T4 Aluminum | |
| LAA-K1-162 | 162 | 1.3500 | .062 | 1.367 | .250 | .09 | 2024-T4 Aluminum | |
| LAA-K2-28 | 28 | .2333 | .090 | .250 | .281 | .09 | 2024-T4 Aluminum | |
| LAA-K2-30 | 30 | .2500 | .090 | .267 | .281 | .09 | 2024-T4 Aluminum | |
| LAA-K2-36 | 36 | .3000 | .090 | .317 | .281 | .09 | 2024-T4 Aluminum | |
| LAA-K2-39 | 39 | .3250 | .090 | .342 | .281 | .09 | 2024-T4 Aluminum | |
| LAA-K2-42 | 42 | .3500 | .090 | .367 | .281 | .09 | 2024-T4 Aluminum | |
| LAA-K2-45 | 45 | .3750 | .090 | .392 | .281 | .09 | 2024-T4 Aluminum | |
| LAA-K2-48 | 48 | .4000 | .090 | .417 | .281 | .09 | 2024-T4 Aluminum | |
| LAA-K2-54 | 54 | .4500 | .090 | .467 | .281 | .09 | 2024-T4 Aluminum | |
| LAA-K2-60 | 60 | .5000 | .090 | .517 | .281 | .09 | 2024-T4 Aluminum | |
| LAA-K2-66 | 66 | .5500 | .090 | .567 | .281 | .09 | 2024-T4 Aluminum | |
| LAA-K2-72 | 72 | .6000 | .090 | .617 | .281 | .09 | 2024-T4 Aluminum | |
| LAA-K2-78 | 78 | .6500 | .090 | .667 | .281 | .09 | 2024-T4 Aluminum | |
| LAA-K2-84 | 84 | .7000 | .090 | .717 | .281 | .09 | 2024-T4 Aluminum | |
| LAA-K2-90 | 90 | .7500 | .090 | .767 | .281 | .09 | 2024-T4 Aluminum | |
| LAA-K2-96 | 96 | .8000 | .090 | .817 | .281 | .09 | 2024-T4 Aluminum | |
| LAA-K2-102 | 102 | .8500 | .090 | .867 | .281 | .09 | 2024-T4 Aluminum | |
| LAA-K2-108 | 108 | .9000 | .090 | .917 | .281 | .09 | 2024-T4 Aluminum | |
| LAA-K2-114 | 114 | .9500 | .090 | .967 | .281 | .09 | 2024-T4 Aluminum | |
| LAA-K2-120 | 120 | 1.0000 | .090 | 1.017 | .281 | .09 | 2024-T4 Aluminum | |
| LAA-K2-126 | 126 | 1.0500 | .090 | 1.067 | .281 | .09 | 2024-T4 Aluminum | |
| LAA-K2-127 | 127 | 1.0533 | .090 | 1.075 | .281 | .09 | 2024-T4 Aluminum | |
| LAA-K2-132 | 132 | 1.1000 | .090 | 1.117 | .281 | .09 | 2024-T4 Aluminum | |
| LAA-K2-138 | 138 | 1.1500 | .090 | 1.167 | .281 | .09 | 2024-T4 Aluminum | |
| LAA-K2-144 | 144 | 1.2000 | .090 | 1.217 | .281 | .09 | 2024-T4 Aluminum | |
| LAA-K2-150 | 150 | 1.2500 | .090 | 1.267 | .281 | .09 | 2024-T4 Aluminum | |
| LAA-K2-162 | 162 | 1.3500 | .090 | 1.367 | .281 | .09 | 2024-T4 Aluminum | |
| LAA-K2-168 | 168 | 1.4000 | .090 | 1.417 | .281 | .09 | 2024-T4 Aluminum | |
| LAA-K2-174 | 174 | 1.4500 | .090 | 1.467 | .281 | .09 | 2024-T4 Aluminum | |
| LAA-K2-180 | 180 | 1.5000 | .090 | 1.517 | .281 | .09 | 2024-T4 Aluminum | |
| LAA-K2-186 | 186 | 1.5500 | .090 | 1.567 | .281 | .09 | 2024-T4 Aluminum | |
| LAA-K2-192 | 192 | 1.6000 | .090 | 1.617 | .281 | .09 | 2024-T4 Aluminum | |
| LAA-K3-28 | 28 | .2333 | .125 | .250 | .312 | .09 | 2024-T4 Aluminum | |
| LAA-K3-30 | 30 | .2500 | .125 | .267 | .312 | .09 | 2024-T4 Aluminum | |
| LAA-K3-32 | 32 | .2667 | .125 | .283 | .312 | .09 | 2024-T4 Aluminum | |
| LAA-K3-36 | 36 | .3000 | .125 | .317 | .312 | .09 | 2024-T4 Aluminum | |
| LAA-K3-38 | 38 | .3167 | .125 | .333 | .312 | .09 | 2024-T4 Aluminum | |
| LAA-K3-40 | 40 | .3333 | .125 | .350 | .312 | .09 | 2024-T4 Aluminum | |
| LAA-K3-44 | 44 | .3667 | .125 | .383 | .312 | .09 | 2024-T4 Aluminum | |
| LAA-K3-45 | 45 | .3750 | .125 | .392 | .312 | .09 | 2024-T4 Aluminum | |
| LAA-K3-48 | 48 | .4000 | .125 | .417 | .312 | .09 | 2024-T4 Aluminum | |
| LAA-K3-50 | 50 | .4167 | .125 | .433 | .312 | .09 | 2024-T4 Aluminum | |
| LAA-K3-55 | 55 | .4583 | .125 | .475 | .312 | .09 | 2024-T4 Aluminum | |
| LAA-K3-60 | 60 | .5000 | .125 | .517 | .312 | .09 | 2024-T4 Aluminum | |
| LAA-K3-64 | 64 | .5333 | .125 | .550 | .312 | .09 | 2024-T4 Aluminum | |
| LAA-K3-65 | 65 | .5417 | .125 | .558 | .312 | .09 | 2024-T4 Aluminum | |
| LAA-K3-70 | 70 | .5833 | .125 | .600 | .312 | .09 | 2024-T4 Aluminum | |
| LAA-K3-72 | 72 | .6000 | .125 | .617 | .312 | .09 | 2024-T4 Aluminum | |
| LAA-K3-75 | 75 | .6250 | .125 | .642 | .312 | .09 | 2024-T4 Aluminum | |
| LAA-K3-80 | 80 | .6667 | .125 | .683 | .312 | .09 | 2024-T4 Aluminum | |
| LAA-K3-85 | 85 | .7083 | .125 | .725 | .312 | .09 | 2024-T4 Aluminum | |
| LAA-K3-90 | 90 | .7500 | .125 | .767 | .312 | .09 | 2024-T4 Aluminum | |
| LAA-K3-96 | 96 | .8000 | .125 | .817 | .312 | .09 | 2024-T4 Aluminum | |
| LAA-K3-100 | 100 | .8333 | .125 | .850 | .312 | .09 | 2024-T4 Aluminum | |
| LAA-K3-110 | 110 | .9167 | .125 | .933 | .312 | .09 | 2024-T4 Aluminum | |
| LAA-K3-120 | 120 | 1.0000 | .125 | 1.017 | .312 | .09 | 2024-T4 Aluminum | |
| LAA-K3-130 | 130 | 1.0830 | .125 | 1.100 | .312 | .09 | 2024-T4 Aluminum | |
| LAA-K3-140 | 140 | 1.1667 | .125 | 1.183 | .312 | .09 | 2024-T4 Aluminum | |
| LAA-K3-150 | 150 | 1.2500 | .125 | 1.267 | .312 | .09 | 2024-T4 Aluminum | |
| LAA-K3-160 | 160 | 1.3333 | .125 | 1.350 | .312 | .09 | 2024-T4 Aluminum | |
| LAA-K3-170 | 170 | 1.4167 | .125 | 1.433 | .312 | .09 | 2024-T4 Aluminum | |
| LAA-K3-180 | 180 | 1.5000 | .125 | 1.517 | .312 | .09 | 2024-T4 Aluminum | |
| LAS-K1-30 | 30 | .2500 | .062 | .267 | .250 | .09 | 303 Stainless Steel | |
| LAS-K1-33 | 33 | .2750 | .062 | .292 | .250 | .09 | 303 Stainless Steel | |
| LAS-K1-36 | 36 | .3000 | .062 | .317 | .250 | .09 | 303 Stainless Steel | |
| LAS-K1-42 | 42 | .3500 | .062 | .367 | .250 | .09 | 303 Stainless Steel | |
| LAS-K1-45 | 45 | .3750 | .062 | .392 | .250 | .09 | 303 Stainless Steel | |
| LAS-K1-48 | 48 | .4000 | .062 | .417 | .250 | .09 | 303 Stainless Steel | |
| LAS-K1-54 | 54 | .4500 | .062 | .467 | .250 | .09 | 303 Stainless Steel | |
| LAS-K1-60 | 60 | .5000 | .062 | .517 | .250 | .09 | 303 Stainless Steel | |
| LAS-K1-66 | 66 | .5500 | .062 | .567 | .250 | .09 | 303 Stainless Steel | |
| LAS-K1-72 | 72 | .6000 | .062 | .617 | .250 | .09 | 303 Stainless Steel | |
| LAS-K1-78 | 78 | .6500 | .062 | .667 | .250 | .09 | 303 Stainless Steel | |
| LAS-K1-84 | 84 | .7000 | .062 | .717 | .250 | .09 | 303 Stainless Steel | |
| LAS-K1-90 | 90 | .7500 | .062 | .767 | .250 | .09 | 303 Stainless Steel | |
| LAS-K1-96 | 96 | .8000 | .062 | .817 | .250 | .09 | 303 Stainless Steel | |
| LAS-K1-102 | 102 | .8500 | .062 | .867 | .250 | .09 | 303 Stainless Steel | |
| LAS-K1-108 | 108 | .9000 | .062 | .916 | .250 | .09 | 303 Stainless Steel | |
| LAS-K1-114 | 114 | .9500 | .062 | .967 | .250 | .09 | 303 Stainless Steel | |
| LAS-K1-120 | 120 | 1.0000 | .062 | 1.017 | .250 | .09 | 303 Stainless Steel | |
| LAS-K1-126 | 126 | 1.0500 | .062 | 1.067 | .250 | .09 | 303 Stainless Steel | |
| LAS-K1-127 | 127 | 1.0583 | .062 | 1.075 | .250 | .09 | 303 Stainless Steel | |
| LAS-K1-132 | 132 | 1.1000 | .062 | 1.117 | .250 | .09 | 303 Stainless Steel | |
| LAS-K1-138 | 138 | 1.1500 | .062 | 1.167 | .250 | .09 | 303 Stainless Steel | |
| LAS-K1-144 | 144 | 1.2000 | .062 | 1.217 | .250 | .09 | 303 Stainless Steel | |
| LAS-K1-150 | 150 | 1.2500 | .062 | 1.267 | .250 | .09 | 303 Stainless Steel | |
| LAS-K1-156 | 156 | 1.3000 | .062 | 1.317 | .250 | .09 | 303 Stainless Steel | |
| LAS-K1-162 | 162 | 1.3500 | .062 | 1.367 | .250 | .09 | 303 Stainless Steel | |
| LAS-K2-28 | 28 | .2333 | .090 | .250 | .281 | .09 | 303 Stainless Steel | |
| LAS-K2-30 | 30 | .2500 | .090 | .267 | .281 | .09 | 303 Stainless Steel | |
| LAS-K2-36 | 36 | .3000 | .090 | .317 | .281 | .09 | 303 Stainless Steel | |
| LAS-K2-39 | 39 | .3250 | .090 | .342 | .281 | .09 | 303 Stainless Steel | |
| LAS-K2-42 | 42 | .3500 | .090 | .367 | .281 | .09 | 303 Stainless Steel | |
| LAS-K2-45 | 45 | .3750 | .090 | .392 | .281 | .09 | 303 Stainless Steel | |
| LAS-K2-48 | 48 | .4000 | .090 | .417 | .281 | .09 | 303 Stainless Steel | |
| LAS-K2-54 | 54 | .4500 | .090 | .467 | .281 | .09 | 303 Stainless Steel | |
| LAS-K2-60 | 60 | .5000 | .090 | .517 | .281 | .09 | 303 Stainless Steel | |
| LAS-K2-66 | 66 | .5500 | .090 | .567 | .281 | .09 | 303 Stainless Steel | |
| LAS-K2-72 | 72 | .6000 | .090 | .617 | .281 | .09 | 303 Stainless Steel | |
| LAS-K2-78 | 78 | .6500 | .090 | .667 | .281 | .09 | 303 Stainless Steel | |
| LAS-K2-90 | 90 | .7500 | .090 | .767 | .281 | .09 | 303 Stainless Steel | |
| LAS-K2-96 | 96 | .8000 | .090 | .817 | .281 | .09 | 303 Stainless Steel | |
| LAS-K2-102 | 102 | .8500 | .090 | .867 | .281 | .09 | 303 Stainless Steel | |
| LAS-K2-108 | 108 | .9000 | .090 | .917 | .281 | .09 | 303 Stainless Steel | |
| LAS-K2-114 | 114 | .9500 | .090 | .967 | .281 | .09 | 303 Stainless Steel | |
| LAS-K2-120 | 120 | 1.0000 | .090 | 1.017 | .281 | .09 | 303 Stainless Steel | |
| LAS-K2-126 | 126 | 1.0500 | .090 | 1.067 | .281 | .09 | 303 Stainless Steel | |
| LAS-K2-127 | 127 | 1.0533 | .090 | 1.075 | .281 | .09 | 303 Stainless Steel | |
| LAS-K2-132 | 132 | 1.1000 | .090 | 1.117 | .281 | .09 | 303 Stainless Steel | |
| LAS-K2-138 | 138 | 1.1500 | .090 | 1.167 | .281 | .09 | 303 Stainless Steel | |
| LAS-K2-144 | 144 | 1.2000 | .090 | 1.217 | .281 | .09 | 303 Stainless Steel | |
| LAS-K2-150 | 150 | 1.2500 | .090 | 1.267 | .281 | .09 | 303 Stainless Steel | |
| LAS-K2-162 | 162 | 1.3500 | .090 | 1.367 | .281 | .09 | 303 Stainless Steel | |
| LAS-K2-168 | 168 | 1.4000 | .090 | 1.417 | .281 | .09 | 303 Stainless Steel | |
| LAS-K2-174 | 174 | 1.4500 | .090 | 1.467 | .281 | .09 | 303 Stainless Steel | |
| LAS-K2-180 | 180 | 1.5000 | .090 | 1.517 | .281 | .09 | 303 Stainless Steel | |
| LAS-K2-186 | 186 | 1.5500 | .090 | 1.567 | .281 | .09 | 303 Stainless Steel | |
| LAS-K2-192 | 192 | 1.6000 | .090 | 1.617 | .281 | .09 | 303 Stainless Steel | |
| LAS-K3-28 | 28 | .2333 | .125 | .250 | .312 | .09 | 303 Stainless Steel | |
| LAS-K3-30 | 30 | .2500 | .125 | .267 | .312 | .09 | 303 Stainless Steel | |
| LAS-K3-32 | 32 | .2667 | .125 | .283 | .312 | .09 | 303 Stainless Steel | |
| LAS-K3-36 | 36 | .3000 | .125 | .317 | .312 | .09 | 303 Stainless Steel | |
| LAS-K3-38 | 38 | .3167 | .125 | .333 | .312 | .09 | 303 Stainless Steel | |
| LAS-K3-40 | 40 | .3333 | .125 | .350 | .312 | .09 | 303 Stainless Steel | |
| LAS-K3-44 | 44 | .3667 | .125 | .383 | .312 | .09 | 303 Stainless Steel | |
| LAS-K3-45 | 45 | .3750 | .125 | .392 | .312 | .09 | 303 Stainless Steel | |
| LAS-K3-48 | 48 | .4000 | .125 | .417 | .312 | .09 | 303 Stainless Steel | |
| LAS-K3-50 | 50 | .4167 | .125 | .433 | .312 | .09 | 303 Stainless Steel | |
| LAS-K3-55 | 55 | .4583 | .125 | .475 | .312 | .09 | 303 Stainless Steel | |
| LAS-K3-60 | 60 | .5000 | .125 | .517 | .312 | .09 | 303 Stainless Steel | |
| LAS-K3-64 | 64 | .5333 | .125 | .550 | .312 | .09 | 303 Stainless Steel | |
| LAS-K3-65 | 65 | .5417 | .125 | .558 | .312 | .09 | 303 Stainless Steel | |
| LAS-K3-70 | 70 | .5833 | .125 | .600 | .312 | .09 | 303 Stainless Steel | |
| LAS-K3-72 | 72 | .6000 | .125 | .617 | .312 | .09 | 303 Stainless Steel | |
| LAS-K3-75 | 75 | .6250 | .125 | .642 | .312 | .09 | 303 Stainless Steel | |
| LAS-K3-80 | 80 | .6667 | .125 | .683 | .312 | .09 | 303 Stainless Steel | |
| LAS-K3-85 | 85 | .7083 | .125 | .725 | .312 | .09 | 303 Stainless Steel | |
| LAS-K3-90 | 90 | .7500 | .125 | .767 | .312 | .09 | 303 Stainless Steel | |
| LAS-K3-96 | 96 | .8000 | .125 | .817 | .312 | .09 | 303 Stainless Steel | |
| LAS-K3-100 | 100 | .8333 | .125 | .850 | .312 | .09 | 303 Stainless Steel | |
| LAS-K3-110 | 110 | .9167 | .125 | .933 | .312 | .09 | 303 Stainless Steel | |
| LAS-K3-120 | 120 | 1.0000 | .125 | 1.017 | .312 | .09 | 303 Stainless Steel | |
| LAS-K3-130 | 130 | 1.0830 | .125 | 1.100 | .312 | .09 | 303 Stainless Steel | |
| LAS-K3-140 | 140 | 1.1667 | .125 | 1.183 | .312 | .09 | 303 Stainless Steel | |
| LAS-K3-150 | 150 | 1.2500 | .125 | 1.267 | .312 | .09 | 303 Stainless Steel | |
| LAS-K3-160 | 160 | 1.3333 | .125 | 1.350 | .312 | .09 | 303 Stainless Steel | |
| LAS-K3-170 | 170 | 1.4167 | .125 | 1.433 | .312 | .09 | 303 Stainless Steel | |
| LAS-K3-180 | 180 | 1.5000 | .125 | 1.517 | .312 | .09 | 303 Stainless Steel | |
