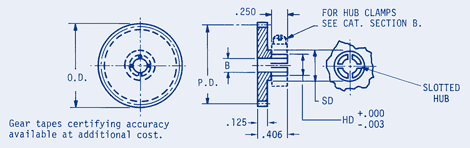

Spur Gear-Split Hub-72 Pitch, 1/8 face
|
|
| 20 Degree pressure angle. AGMA quality 10. Aluminum gears anodized before gear cutting. | |
- T= Number of Teeth
- PD = Pitch Diameter
- B = Bore
- OD = Outside Diameter
- HD = Hub Diameter
- M= Material
- SD = Step Diameter
| Part | Number of Teeth | Pitch Diameter | Bore | Outside Diameter | Hub Diameter | Material | Step Diameter | |
|---|---|---|---|---|---|---|---|---|
| Buy | View | |||||||
| LBA-G1-21 | 21 | .2916 | .1248 | .319 | .188 | 2024-T4 Aluminum | 1/4 | |
| LBA-G1-22 | 22 | .3055 | .1248 | .333 | .188 | 2024-T4 Aluminum | 1/4 | |
| LBA-G1-23 | 23 | .3194 | .1248 | .347 | .188 | 2024-T4 Aluminum | 1/4 | |
| LBA-G1-24 | 24 | .3333 | .1248 | .361 | .188 | 2024-T4 Aluminum | 1/4 | |
| LBA-G1-25 | 25 | .3471 | .1248 | .375 | .188 | 2024-T4 Aluminum | 1/4 | |
| LBA-G1-26 | 26 | .3610 | .1248 | .389 | .188 | 2024-T4 Aluminum | 1/4 | |
| LBA-G1-27 | 27 | .3750 | .1248 | .403 | .188 | 2024-T4 Aluminum | 1/4 | |
| LBA-G1-28 | 28 | .3888 | .1248 | .417 | .188 | 2024-T4 Aluminum | 1/4 | |
| LBA-G1-29 | 29 | .4027 | .1248 | .431 | .188 | 2024-T4 Aluminum | 1/4 | |
| LBA-G1-30 | 30 | .4166 | .1248 | .444 | .188 | 2024-T4 Aluminum | 1/4 | |
| LBA-G1-32 | 32 | .4444 | .1248 | .472 | .188 | 2024-T4 Aluminum | 1/4 | |
| LBA-G1-34 | 34 | .4722 | .1248 | .500 | .188 | 2024-T4 Aluminum | 1/4 | |
| LBA-G1-36 | 36 | .5000 | .1248 | .528 | .188 | 2024-T4 Aluminum | 1/4 | |
| LBA-G1-38 | 38 | .5277 | .1248 | .556 | .188 | 2024-T4 Aluminum | 1/4 | |
| LBA-G1-40 | 40 | .5555 | .1248 | .583 | .188 | 2024-T4 Aluminum | 1/4 | |
| LBA-G1-42 | 42 | .5833 | .1248 | .611 | .188 | 2024-T4 Aluminum | 1/4 | |
| LBA-G1-45 | 45 | .6250 | .1248 | .653 | .188 | 2024-T4 Aluminum | 1/4 | |
| LBA-G1-54 | 54 | .7500 | .1248 | .778 | .188 | 2024-T4 Aluminum | 1/4 | |
| LBA-G1-63 | 63 | .8750 | .1248 | .903 | .188 | 2024-T4 Aluminum | 1/4 | |
| LBA-G1-72 | 72 | 1.0000 | .1248 | 1.028 | .188 | 2024-T4 Aluminum | 1/4 | |
| LBA-G1-81 | 81 | 1.1250 | .1248 | 1.153 | .188 | 2024-T4 Aluminum | 1/4 | |
| LBA-G1-90 | 90 | 1.2500 | .1248 | 1.278 | .188 | 2024-T4 Aluminum | 1/4 | |
| LBA-G1-99 | 99 | 1.3750 | .1248 | 1.403 | .188 | 2024-T4 Aluminum | 1/4 | |
| LBA-G1-108 | 108 | 1.5000 | .1248 | 1.528 | .188 | 2024-T4 Aluminum | 1/4 | |
| LBA-G1-117 | 117 | 1.6249 | .1248 | 1.653 | .188 | 2024-T4 Aluminum | 1/4 | |
| LBA-G1-126 | 126 | 1.7499 | .1248 | 1.778 | .188 | 2024-T4 Aluminum | 1/4 | |
| LBA-G1-127 | 127 | 1.7638 | .1248 | 1.792 | .188 | 2024-T4 Aluminum | 1/4 | |
| LBA-G1-135 | 135 | 1.8749 | .1248 | 1.903 | .188 | 2024-T4 Aluminum | 1/4 | |
| LBA-G1-140 | 140 | 1.9444 | .1248 | 1.972 | .188 | 2024-T4 Aluminum | 1/4 | |
| LBA-G2-24 | 24 | .3333 | .1873 | .361 | .250 | 2024-T4 Aluminum | 5/16 | |
| LBA-G2-25 | 25 | .3471 | .1873 | .375 | .250 | 2024-T4 Aluminum | 5/16 | |
| LBA-G2-26 | 26 | .3610 | .1873 | .389 | .250 | 2024-T4 Aluminum | 5/16 | |
| LBA-G2-27 | 27 | .3750 | .1873 | .403 | .250 | 2024-T4 Aluminum | 5/16 | |
| LBA-G2-28 | 28 | .3888 | .1873 | .417 | .250 | 2024-T4 Aluminum | 5/16 | |
| LBA-G2-29 | 29 | .4027 | .1873 | .431 | .250 | 2024-T4 Aluminum | 5/16 | |
| LBA-G2-30 | 30 | .4166 | .1873 | .444 | .250 | 2024-T4 Aluminum | 5/16 | |
| LBA-G2-32 | 32 | .4444 | .1873 | .472 | .250 | 2024-T4 Aluminum | 5/16 | |
| LBA-G2-34 | 34 | .4722 | .1873 | .500 | .250 | 2024-T4 Aluminum | 5/16 | |
| LBA-G2-36 | 36 | .5000 | .1873 | .528 | .250 | 2024-T4 Aluminum | 5/16 | |
| LBA-G2-38 | 38 | .5277 | .1873 | .556 | .250 | 2024-T4 Aluminum | 5/16 | |
| LBA-G2-40 | 40 | .5555 | .1873 | .583 | .250 | 2024-T4 Aluminum | 5/16 | |
| LBA-G2-42 | 42 | .5833 | .1873 | .611 | .250 | 2024-T4 Aluminum | 5/16 | |
| LBA-G2-45 | 45 | .6250 | .1873 | .653 | .250 | 2024-T4 Aluminum | 5/16 | |
| LBA-G2-54 | 54 | .7500 | .1873 | .778 | .250 | 2024-T4 Aluminum | 5/16 | |
| LBA-G2-63 | 63 | .8750 | .1873 | .903 | .250 | 2024-T4 Aluminum | 5/16 | |
| LBA-G2-72 | 72 | 1.0000 | .1873 | 1.028 | .250 | 2024-T4 Aluminum | 5/16 | |
| LBA-G2-81 | 81 | 1.1250 | .1873 | 1.153 | .250 | 2024-T4 Aluminum | 5/16 | |
| LBA-G2-90 | 90 | 1.2500 | .1873 | 1.278 | .250 | 2024-T4 Aluminum | 5/16 | |
| LBA-G2-99 | 99 | 1.3750 | .1873 | 1.403 | .250 | 2024-T4 Aluminum | 5/16 | |
| LBA-G2-108 | 108 | 1.5000 | .1873 | 1.528 | .250 | 2024-T4 Aluminum | 5/16 | |
| LBA-G2-117 | 117 | 1.6249 | .1873 | 1.653 | .250 | 2024-T4 Aluminum | 5/16 | |
| LBA-G2-126 | 126 | 1.7499 | .1873 | 1.778 | .250 | 2024-T4 Aluminum | 5/16 | |
| LBA-G2-127 | 127 | 1.7638 | .1873 | 1.792 | .250 | 2024-T4 Aluminum | 5/16 | |
| LBA-G2-135 | 135 | 1.8749 | .1873 | 1.903 | .250 | 2024-T4 Aluminum | 5/16 | |
| LBA-G2-140 | 140 | 1.9444 | .1873 | 1.972 | .250 | 2024-T4 Aluminum | 5/16 | |
| LBA-G3-28 | 28 | .3888 | .2498 | .417 | .312 | 2024-T4 Aluminum | 3/8 | |
| LBA-G3-29 | 29 | .4027 | .2498 | .431 | .312 | 2024-T4 Aluminum | 3/8 | |
| LBA-G3-30 | 30 | .4166 | .2498 | .444 | .312 | 2024-T4 Aluminum | 3/8 | |
| LBA-G3-32 | 32 | .4444 | .2498 | .472 | .312 | 2024-T4 Aluminum | 3/8 | |
| LBA-G3-34 | 34 | .4722 | .2498 | .500 | .312 | 2024-T4 Aluminum | 3/8 | |
| LBA-G3-36 | 36 | .5000 | .2498 | .528 | .312 | 2024-T4 Aluminum | 3/8 | |
| LBA-G3-38 | 38 | .5277 | .2498 | .556 | .312 | 2024-T4 Aluminum | 3/8 | |
| LBA-G3-40 | 40 | .5555 | .2498 | .583 | .312 | 2024-T4 Aluminum | 3/8 | |
| LBA-G3-42 | 42 | .5833 | .2498 | .611 | .312 | 2024-T4 Aluminum | 3/8 | |
| LBA-G3-45 | 45 | .6250 | .2498 | .653 | .312 | 2024-T4 Aluminum | 3/8 | |
| LBA-G3-54 | 54 | .7500 | .2498 | .778 | .312 | 2024-T4 Aluminum | 3/8 | |
| LBA-G3-63 | 63 | .8750 | .2498 | .903 | .312 | 2024-T4 Aluminum | 3/8 | |
| LBA-G3-72 | 72 | 1.0000 | .2498 | 1.028 | .312 | 2024-T4 Aluminum | 3/8 | |
| LBA-G3-81 | 81 | 1.1250 | .2498 | 1.153 | .312 | 2024-T4 Aluminum | 3/8 | |
| LBA-G3-90 | 90 | 1.2500 | .2498 | 1.278 | .312 | 2024-T4 Aluminum | 3/8 | |
| LBA-G3-99 | 99 | 1.3750 | .2498 | 1.403 | .312 | 2024-T4 Aluminum | 3/8 | |
| LBA-G3-108 | 108 | 1.5000 | .2498 | 1.528 | .312 | 2024-T4 Aluminum | 3/8 | |
| LBA-G3-117 | 117 | 1.6249 | .2498 | 1.653 | .312 | 2024-T4 Aluminum | 3/8 | |
| LBA-G3-126 | 126 | 1.7499 | .2498 | 1.778 | .312 | 2024-T4 Aluminum | 3/8 | |
| LBA-G3-127 | 127 | 1.7638 | .2498 | 1.792 | .312 | 2024-T4 Aluminum | 3/8 | |
| LBA-G3-135 | 135 | 1.8749 | .2498 | 1.903 | .312 | 2024-T4 Aluminum | 3/8 | |
| LBA-G3-144 | 144 | 2.0000 | .2498 | 2.028 | .312 | 2024-T4 Aluminum | 3/8 | |
| LBA-G3-153 | 153 | 2.1249 | .2498 | 2.153 | .312 | 2024-T4 Aluminum | 3/8 | |
| LBA-G3-162 | 162 | 2.2499 | .2498 | 2.277 | .312 | 2024-T4 Aluminum | 3/8 | |
| LBA-G3-171 | 171 | 2.3749 | .2498 | 2.403 | .312 | 2024-T4 Aluminum | 3/8 | |
| LBA-G3-180 | 180 | 2.5000 | .2498 | 2.528 | .312 | 2024-T4 Aluminum | 3/8 | |
| LBA-G3-189 | 189 | 2.6249 | .2498 | 2.653 | .312 | 2024-T4 Aluminum | 3/8 | |
| LBA-G3-198 | 198 | 2.7499 | .2498 | 2.778 | .312 | 2024-T4 Aluminum | 3/8 | |
| LBA-G3-207 | 207 | 2.8750 | .2498 | 2.903 | .312 | 2024-T4 Aluminum | 3/8 | |
| LBA-G3-216 | 216 | 3.0000 | .2498 | 3.028 | .312 | 2024-T4 Aluminum | 3/8 | |
| LBA-G3-225 | 225 | 3.1250 | .2498 | 3.153 | .312 | 2024-T4 Aluminum | 3/8 | |
| LBA-G3-234 | 234 | 3.2500 | .2498 | 3.278 | .312 | 2024-T4 Aluminum | 3/8 | |
| LBA-G3-243 | 243 | 3.3750 | .2498 | 3.403 | .312 | 2024-T4 Aluminum | 3/8 | |
| LBA-G3-252 | 252 | 3.5000 | .2498 | 3.528 | .312 | 2024-T4 Aluminum | 3/8 | |
| LBA-G3-261 | 261 | 3.6250 | .2498 | 3.653 | .312 | 2024-T4 Aluminum | 3/8 | |
| LBA-G3-270 | 270 | 3.7500 | .2498 | 3.778 | .312 | 2024-T4 Aluminum | 3/8 | |
| LBA-G3-279 | 279 | 3.8750 | .2498 | 3.903 | .312 | 2024-T4 Aluminum | 3/8 | |
| LBA-G3-288 | 288 | 4.0000 | .2498 | 4.028 | .312 | 2024-T4 Aluminum | 3/8 | |
| LBA-G3-297 | 297 | 4.1250 | .2498 | 4.153 | .312 | 2024-T4 Aluminum | 3/8 | |
| LBS-G1-21 | 21 | .2916 | .1248 | .319 | .188 | 303 Stainless Steel | 1/4 | |
| LBS-G1-22 | 22 | .3055 | .1248 | .333 | .188 | 303 Stainless Steel | 1/4 | |
| LBS-G1-23 | 23 | .3194 | .1248 | .347 | .188 | 303 Stainless Steel | 1/4 | |
| LBS-G1-24 | 24 | .3333 | .1248 | .361 | .188 | 303 Stainless Steel | 1/4 | |
| LBS-G1-25 | 25 | .3471 | .1248 | .375 | .188 | 303 Stainless Steel | 1/4 | |
| LBS-G1-26 | 26 | .3610 | .1248 | .389 | .188 | 303 Stainless Steel | 1/4 | |
| LBS-G1-27 | 27 | .3750 | .1248 | .403 | .188 | 303 Stainless Steel | 1/4 | |
| LBS-G1-28 | 28 | .3888 | .1248 | .417 | .188 | 303 Stainless Steel | 1/4 | |
| LBS-G1-29 | 29 | .4027 | .1248 | .431 | .188 | 303 Stainless Steel | 1/4 | |
| LBS-G1-30 | 30 | .4166 | .1248 | .444 | .188 | 303 Stainless Steel | 1/4 | |
| LBS-G1-32 | 32 | .4444 | .1248 | .472 | .188 | 303 Stainless Steel | 1/4 | |
| LBS-G1-34 | 34 | .4722 | .1248 | .500 | .188 | 303 Stainless Steel | 1/4 | |
| LBS-G1-36 | 36 | .5000 | .1248 | .528 | .188 | 303 Stainless Steel | 1/4 | |
| LBS-G1-38 | 38 | .5277 | .1248 | .556 | .188 | 303 Stainless Steel | 1/4 | |
| LBS-G1-40 | 40 | .5555 | .1248 | .583 | .188 | 303 Stainless Steel | 1/4 | |
| LBS-G1-42 | 42 | .5833 | .1248 | .611 | .188 | 303 Stainless Steel | 1/4 | |
| LBS-G1-45 | 45 | .6250 | .1248 | .653 | .188 | 303 Stainless Steel | 1/4 | |
| LBS-G1-54 | 54 | .7500 | .1248 | .778 | .188 | 303 Stainless Steel | 1/4 | |
| LBS-G1-63 | 63 | .8750 | .1248 | .903 | .188 | 303 Stainless Steel | 1/4 | |
| LBS-G1-72 | 72 | 1.0000 | .1248 | 1.028 | .188 | 303 Stainless Steel | 1/4 | |
| LBS-G1-81 | 81 | 1.1250 | .1248 | 1.153 | .188 | 303 Stainless Steel | 1/4 | |
| LBS-G1-90 | 90 | 1.2500 | .1248 | 1.278 | .188 | 303 Stainless Steel | 1/4 | |
| LBS-G1-99 | 99 | 1.3750 | .1248 | 1.403 | .188 | 303 Stainless Steel | 1/4 | |
| LBS-G1-108 | 108 | 1.5000 | .1248 | 1.528 | .188 | 303 Stainless Steel | 1/4 | |
| LBS-G1-117 | 117 | 1.6249 | .1248 | 1.653 | .188 | 303 Stainless Steel | 1/4 | |
| LBS-G1-126 | 126 | 1.7499 | .1248 | 1.778 | .188 | 303 Stainless Steel | 1/4 | |
| LBS-G1-127 | 127 | 1.7638 | .1248 | 1.792 | .188 | 303 Stainless Steel | 1/4 | |
| LBS-G1-135 | 135 | 1.8749 | .1248 | 1.903 | .188 | 303 Stainless Steel | 1/4 | |
| LBS-G1-140 | 140 | 1.9444 | .1248 | 1.972 | .188 | 303 Stainless Steel | 1/4 | |
| LBS-G2-24 | 24 | .3333 | .1873 | .361 | .250 | 303 Stainless Steel | 5/16 | |
| LBS-G2-25 | 25 | .3471 | .1873 | .375 | .250 | 303 Stainless Steel | 5/16 | |
| LBS-G2-26 | 26 | .3610 | .1873 | .389 | .250 | 303 Stainless Steel | 5/16 | |
| LBS-G2-27 | 27 | .3750 | .1873 | .403 | .250 | 303 Stainless Steel | 5/16 | |
| LBS-G2-28 | 28 | .3888 | .1873 | .417 | .250 | 303 Stainless Steel | 5/16 | |
| LBS-G2-29 | 29 | .4027 | .1873 | .431 | .250 | 303 Stainless Steel | 5/16 | |
| LBS-G2-30 | 30 | .4166 | .1873 | .444 | .250 | 303 Stainless Steel | 5/16 | |
| LBS-G2-32 | 32 | .4444 | .1873 | .472 | .250 | 303 Stainless Steel | 5/16 | |
| LBS-G2-34 | 34 | .4722 | .1873 | .500 | .250 | 303 Stainless Steel | 5/16 | |
| LBS-G2-36 | 36 | .5000 | .1873 | .528 | .250 | 303 Stainless Steel | 5/16 | |
| LBS-G2-38 | 38 | .5277 | .1873 | .556 | .250 | 303 Stainless Steel | 5/16 | |
| LBS-G2-40 | 40 | .5555 | .1873 | .583 | .250 | 303 Stainless Steel | 5/16 | |
| LBS-G2-42 | 42 | .5833 | .1873 | .611 | .250 | 303 Stainless Steel | 5/16 | |
| LBS-G2-45 | 45 | .6250 | .1873 | .653 | .250 | 303 Stainless Steel | 5/16 | |
| LBS-G2-54 | 54 | .7500 | .1873 | .778 | .250 | 303 Stainless Steel | 5/16 | |
| LBS-G2-63 | 63 | .8750 | .1873 | .903 | .250 | 303 Stainless Steel | 5/16 | |
| LBS-G2-72 | 72 | 1.0000 | .1873 | 1.028 | .250 | 303 Stainless Steel | 5/16 | |
| LBS-G2-81 | 81 | 1.1250 | .1873 | 1.153 | .250 | 303 Stainless Steel | 5/16 | |
| LBS-G2-90 | 90 | 1.2500 | .1873 | 1.278 | .250 | 303 Stainless Steel | 5/16 | |
| LBS-G2-99 | 99 | 1.3750 | .1873 | 1.403 | .250 | 303 Stainless Steel | 5/16 | |
| LBS-G2-108 | 108 | 1.5000 | .1873 | 1.528 | .250 | 303 Stainless Steel | 5/16 | |
| LBS-G2-117 | 117 | 1.6249 | .1873 | 1.653 | .250 | 303 Stainless Steel | 5/16 | |
| LBS-G2-126 | 126 | 1.7499 | .1873 | 1.778 | .250 | 303 Stainless Steel | 5/16 | |
| LBS-G2-127 | 127 | 1.7638 | .1873 | 1.792 | .250 | 303 Stainless Steel | 5/16 | |
| LBS-G2-135 | 135 | 1.8749 | .1873 | 1.903 | .250 | 303 Stainless Steel | 5/16 | |
| LBS-G2-140 | 140 | 1.9444 | .1873 | 1.972 | .250 | 303 Stainless Steel | 5/16 | |
| LBS-G3-28 | 28 | .3888 | .2498 | .417 | .312 | 303 Stainless Steel | 3/8 | |
| LBS-G3-29 | 29 | .4027 | .2498 | .431 | .312 | 303 Stainless Steel | 3/8 | |
| LBS-G3-30 | 30 | .4166 | .2498 | .444 | .312 | 303 Stainless Steel | 3/8 | |
| LBS-G3-32 | 32 | .4444 | .2498 | .472 | .312 | 303 Stainless Steel | 3/8 | |
| LBS-G3-34 | 34 | .4722 | .2498 | .500 | .312 | 303 Stainless Steel | 3/8 | |
| LBS-G3-36 | 36 | .5000 | .2498 | .528 | .312 | 303 Stainless Steel | 3/8 | |
| LBS-G3-38 | 38 | .5277 | .2498 | .556 | .312 | 303 Stainless Steel | 3/8 | |
| LBS-G3-40 | 40 | .5555 | .2498 | .583 | .312 | 303 Stainless Steel | 3/8 | |
| LBS-G3-42 | 42 | .5833 | .2498 | .611 | .312 | 303 Stainless Steel | 3/8 | |
| LBS-G3-45 | 45 | .6250 | .2498 | .653 | .312 | 303 Stainless Steel | 3/8 | |
| LBS-G3-54 | 54 | .7500 | .2498 | .778 | .312 | 303 Stainless Steel | 3/8 | |
| LBS-G3-63 | 63 | .8750 | .2498 | .903 | .312 | 303 Stainless Steel | 3/8 | |
| LBS-G3-72 | 72 | 1.0000 | .2498 | 1.028 | .312 | 303 Stainless Steel | 3/8 | |
| LBS-G3-81 | 81 | 1.1250 | .2498 | 1.153 | .312 | 303 Stainless Steel | 3/8 | |
| LBS-G3-90 | 90 | 1.2500 | .2498 | 1.278 | .312 | 303 Stainless Steel | 3/8 | |
| LBS-G3-99 | 99 | 1.3750 | .2498 | 1.403 | .312 | 303 Stainless Steel | 3/8 | |
| LBS-G3-108 | 108 | 1.5000 | .2498 | 1.528 | .312 | 303 Stainless Steel | 3/8 | |
| LBS-G3-117 | 117 | 1.6249 | .2498 | 1.653 | .312 | 303 Stainless Steel | 3/8 | |
| LBS-G3-126 | 126 | 1.7499 | .2498 | 1.778 | .312 | 303 Stainless Steel | 3/8 | |
| LBS-G3-127 | 127 | 1.7638 | .2498 | 1.792 | .312 | 303 Stainless Steel | 3/8 | |
| LBS-G3-135 | 135 | 1.8749 | .2498 | 1.903 | .312 | 303 Stainless Steel | 3/8 | |
| LBS-G3-144 | 144 | 2.0000 | .2498 | 2.028 | .312 | 303 Stainless Steel | 3/8 | |
| LBS-G3-153 | 153 | 2.1249 | .2498 | 2.153 | .312 | 303 Stainless Steel | 3/8 | |
| LBS-G3-162 | 162 | 2.2499 | .2498 | 2.277 | .312 | 303 Stainless Steel | 3/8 | |
| LBS-G3-171 | 171 | 2.3749 | .2498 | 2.403 | .312 | 303 Stainless Steel | 3/8 | |
| LBS-G3-180 | 180 | 2.5000 | .2498 | 2.528 | .312 | 303 Stainless Steel | 3/8 | |
| LBS-G3-189 | 189 | 2.6249 | .2498 | 2.653 | .312 | 303 Stainless Steel | 3/8 | |
| LBS-G3-198 | 198 | 2.7499 | .2498 | 2.778 | .312 | 303 Stainless Steel | 3/8 | |
| LBS-G3-207 | 207 | 2.8750 | .2498 | 2.903 | .312 | 303 Stainless Steel | 3/8 | |
| LBS-G3-216 | 216 | 3.0000 | .2498 | 3.028 | .312 | 303 Stainless Steel | 3/8 | |
| LBS-G3-225 | 225 | 3.1250 | .2498 | 3.153 | .312 | 303 Stainless Steel | 3/8 | |
| LBS-G3-234 | 234 | 3.2500 | .2498 | 3.278 | .312 | 303 Stainless Steel | 3/8 | |
| LBS-G3-243 | 243 | 3.3750 | .2498 | 3.403 | .312 | 303 Stainless Steel | 3/8 | |
| LBS-G3-252 | 252 | 3.5000 | .2498 | 3.528 | .312 | 303 Stainless Steel | 3/8 | |
| LBS-G3-261 | 261 | 3.6250 | .2498 | 3.653 | .312 | 303 Stainless Steel | 3/8 | |
| LBS-G3-270 | 270 | 3.7500 | .2498 | 3.778 | .312 | 303 Stainless Steel | 3/8 | |
| LBS-G3-279 | 279 | 3.8750 | .2498 | 3.903 | .312 | 303 Stainless Steel | 3/8 | |
| LBS-G3-288 | 288 | 4.0000 | .2498 | 4.028 | .312 | 303 Stainless Steel | 3/8 | |
| LBS-G3-297 | 297 | 4.1250 | .2498 | 4.153 | .312 | 303 Stainless Steel | 3/8 | |
