Spur Gear-Pin Hub-64 Pitch

Spur Gear-Pin Hub-64 Pitch

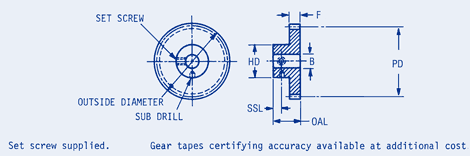

  • T= Number of Teeth
  • PD = Pitch Diameter
  • B = Bore
  • F = Face
  • OD = Outside Diameter
  • HD = Hub Diameter
  • OAL = Overall Length
  • SSL = Set Screw Location
  • M= Material
  • SS= Set Screw
20 Degree Pressure Angle. AGMA Quality 10. Aluminum gears are anodized before gear cutting.
  • T= Number of Teeth
  • PD = Pitch Diameter
  • B = Bore
  • F = Face
  • OD = Outside Diameter
  • HD = Hub Diameter
  • OAL = Overall Length
  • SSL = Set Screw Location
  • M= Material
  • SS= Set Screw
Part Number of Teeth Pitch Diameter Bore Face Outside Diameter Hub Diameter Overall Length Set Screw Location Material Set Screw
Buy View
LAA-F1-23 23 .3593 .1248 .125 .391 .312 .312 .09 2024-T4 Aluminum #2-56
LAA-F1-24 24 .3750 .1248 .125 .406 .312 .312 .09 2024-T4 Aluminum #2-56
LAA-F1-26 26 .4062 .1248 .125 .438 .312 .312 .09 2024-T4 Aluminum #2-56
LAA-F1-27 27 .4218 .1248 .125 .453 .312 .312 .09 2024-T4 Aluminum #2-56
LAA-F1-28 28 .4375 .1248 .125 .469 .312 .312 .09 2024-T4 Aluminum #2-56
LAA-F1-29 29 .4531 .1248 .125 .484 .312 .312 .09 2024-T4 Aluminum #2-56
LAA-F1-30 30 .4687 .1248 .125 .500 .312 .312 .09 2024-T4 Aluminum #2-56
LAA-F1-32 32 .5000 .1248 .125 .531 .312 .312 .09 2024-T4 Aluminum #2-56
LAA-F1-34 34 .5312 .1248 .125 .563 .312 .312 .09 2024-T4 Aluminum #2-56
LAA-F1-36 36 .5625 .1248 .125 .594 .312 .312 .09 2024-T4 Aluminum #2-56
LAA-F1-38 38 .5937 .1248 .125 .625 .312 .312 .09 2024-T4 Aluminum #2-56
LAA-F1-42 42 .6562 .1248 .125 .688 .312 .312 .09 2024-T4 Aluminum #2-56
LAA-F1-44 44 .6875 .1248 .125 .719 .312 .312 .09 2024-T4 Aluminum #2-56
LAA-F1-48 48 .7500 .1248 .125 .781 .312 .312 .09 2024-T4 Aluminum #2-56
LAA-F1-50 50 .7812 .1248 .125 .813 .312 .312 .09 2024-T4 Aluminum #2-56
LAA-F1-56 56 .8750 .1248 .125 .906 .312 .312 .09 2024-T4 Aluminum #2-56
LAA-F1-60 60 .9375 .1248 .125 .969 .312 .312 .09 2024-T4 Aluminum #2-56
LAA-F1-65 65 1.0156 .1248 .125 1.047 .312 .312 .09 2024-T4 Aluminum #2-56
LAA-F1-72 72 1.1250 .1248 .125 1.156 .312 .312 .09 2024-T4 Aluminum #2-56
LAA-F1-75 75 1.1718 .1248 .125 1.203 .312 .312 .09 2024-T4 Aluminum #2-56
LAA-F1-80 80 1.2500 .1248 .125 1.281 .312 .312 .09 2024-T4 Aluminum #2-56
LAA-F1-92 92 1.4375 .1248 .125 1.469 .312 .312 .09 2024-T4 Aluminum #2-56
LAA-F1-95 95 1.4843 .1248 .125 1.516 .312 .312 .09 2024-T4 Aluminum #2-56
LAA-F1-104 104 1.6250 .1248 .125 1.656 .312 .312 .09 2024-T4 Aluminum #2-56
LAA-F1-128 128 2.0000 .1248 .125 2.031 .312 .312 .09 2024-T4 Aluminum #2-56
LAA-F2-23 23 .3593 .1562 .125 .391 .312 .312 .09 2024-T4 Aluminum #2-56
LAA-F2-24 24 .3750 .1562 .125 .406 .312 .312 .09 2024-T4 Aluminum #2-56
LAA-F2-25 25 .3906 .1562 .125 .422 .312 .312 .09 2024-T4 Aluminum #2-56
LAA-F2-26 26 .4062 .1562 .125 .438 .312 .312 .09 2024-T4 Aluminum #2-56
LAA-F2-27 27 .4218 .1562 .125 .453 .312 .312 .09 2024-T4 Aluminum #2-56
LAA-F2-28 28 .4375 .1562 .125 .469 .312 .312 .09 2024-T4 Aluminum #2-56
LAA-F2-29 29 .4531 .1562 .125 .484 .312 .312 .09 2024-T4 Aluminum #2-56
LAA-F2-30 30 .4687 .1562 .125 .500 .312 .312 .09 2024-T4 Aluminum #2-56
LAA-F2-32 32 .5000 .1562 .125 .531 .312 .312 .09 2024-T4 Aluminum #2-56
LAA-F2-34 34 .5312 .1562 .125 .563 .312 .312 .09 2024-T4 Aluminum #2-56
LAA-F2-36 36 .5625 .1562 .125 .594 .312 .312 .09 2024-T4 Aluminum #2-56
LAA-F2-38 38 .5937 .1562 .125 .625 .312 .312 .09 2024-T4 Aluminum #2-56
LAA-F2-40 40 .6250 .1562 .125 .656 .312 .312 .09 2024-T4 Aluminum #2-56
LAA-F2-42 42 .6562 .1562 .125 .688 .312 .312 .09 2024-T4 Aluminum #2-56
LAA-F2-44 44 .6875 .1562 .125 .719 .312 .312 .09 2024-T4 Aluminum #2-56
LAA-F2-46 46 .7187 .1562 .125 .750 .312 .312 .09 2024-T4 Aluminum #2-56
LAA-F2-48 48 .7500 .1562 .125 .781 .312 .312 .09 2024-T4 Aluminum #2-56
LAA-F2-56 56 .8750 .1562 .125 .906 .312 .312 .09 2024-T4 Aluminum #2-56
LAA-F2-60 60 .9375 .1562 .125 .969 .312 .312 .09 2024-T4 Aluminum #2-56
LAA-F2-64 64 1.0000 .1562 .125 1.031 .312 .312 .09 2024-T4 Aluminum #2-56
LAA-F2-72 72 1.1250 .1562 .125 1.156 .312 .312 .09 2024-T4 Aluminum #2-56
LAA-F2-80 80 1.2500 .1562 .125 1.281 .312 .312 .09 2024-T4 Aluminum #2-56
LAA-F2-84 84 1.3125 .1562 .125 1.344 .312 .312 .09 2024-T4 Aluminum #2-56
LAA-F2-88 88 1.3750 .1562 .125 1.406 .312 .312 .09 2024-T4 Aluminum #2-56
LAA-F2-92 92 1.4375 .1562 .125 1.469 .312 .312 .09 2024-T4 Aluminum #2-56
LAA-F2-96 96 1.5000 .1562 .125 1.531 .312 .312 .09 2024-T4 Aluminum #2-56
LAA-F2-100 100 1.5625 .1562 .125 1.594 .312 .312 .09 2024-T4 Aluminum #2-56
LAA-F2-104 104 1.6250 .1562 .125 1.656 .312 .312 .09 2024-T4 Aluminum #2-56
LAA-F2-112 112 1.7500 .1562 .125 1.781 .312 .312 .09 2024-T4 Aluminum #2-56
LAA-F2-120 120 1.8750 .1562 .125 1.906 .312 .312 .09 2024-T4 Aluminum #2-56
LAA-F2-128 128 2.0000 .1562 .125 2.031 .312 .312 .09 2024-T4 Aluminum #2-56
LAA-F3-27 27 .4218 .1873 .125 .453 .375 .343 .11 2024-T4 Aluminum #4-40
LAA-F3-28 28 .4375 .1873 .125 .469 .375 .343 .11 2024-T4 Aluminum #4-40
LAA-F3-29 29 .4531 .1873 .125 .484 .375 .343 .11 2024-T4 Aluminum #4-40
LAA-F3-30 30 .4687 .1873 .125 .500 .375 .343 .11 2024-T4 Aluminum #4-40
LAA-F3-32 32 .5000 .1873 .125 .531 .375 .343 .11 2024-T4 Aluminum #4-40
LAA-F3-34 34 .5312 .1873 .125 .563 .375 .343 .11 2024-T4 Aluminum #4-40
LAA-F3-36 36 .5625 .1873 .125 .594 .375 .343 .11 2024-T4 Aluminum #4-40
LAA-F3-40 40 .6250 .1873 .125 .656 .375 .343 .11 2024-T4 Aluminum #4-40
LAA-F3-42 42 .6562 .1873 .125 .688 .375 .343 .11 2024-T4 Aluminum #4-40
LAA-F3-44 44 .6875 .1873 .125 .719 .375 .343 .11 2024-T4 Aluminum #4-40
LAA-F3-46 46 .7187 .1873 .125 .750 .375 .343 .11 2024-T4 Aluminum #4-40
LAA-F3-48 48 .7500 .1873 .125 .781 .375 .343 .11 2024-T4 Aluminum #4-40
LAA-F3-50 50 .7812 .1873 .125 .813 .375 .343 .11 2024-T4 Aluminum #4-40
LAA-F3-55 55 .8593 .1873 .125 .891 .375 .343 .11 2024-T4 Aluminum #4-40
LAA-F3-60 60 .9375 .1873 .125 .969 .375 .343 .11 2024-T4 Aluminum #4-40
LAA-F3-65 65 1.0156 .1873 .125 1.047 .375 .343 .11 2024-T4 Aluminum #4-40
LAA-F3-70 70 1.0937 .1873 .125 1.125 .375 .343 .11 2024-T4 Aluminum #4-40
LAA-F3-72 72 1.1250 .1873 .125 1.156 .375 .343 .11 2024-T4 Aluminum #4-40
LAA-F3-80 80 1.2500 .1873 .125 1.281 .375 .343 .11 2024-T4 Aluminum #4-40
LAA-F3-85 85 1.3281 .1873 .125 1.359 .375 .343 .11 2024-T4 Aluminum #4-40
LAA-F3-90 90 1.4062 .1873 .125 1.438 .375 .343 .11 2024-T4 Aluminum #4-40
LAA-F3-92 92 1.4375 .1873 .125 1.469 .375 .343 .11 2024-T4 Aluminum #4-40
LAA-F3-95 95 1.4843 .1873 .125 1.516 .375 .343 .11 2024-T4 Aluminum #4-40
LAA-F3-100 100 1.5625 .1873 .125 1.594 .375 .343 .11 2024-T4 Aluminum #4-40
LAA-F3-105 105 1.6406 .1873 .125 1.672 .375 .343 .11 2024-T4 Aluminum #4-40
LAA-F3-112 112 1.7500 .1873 .125 1.781 .375 .343 .11 2024-T4 Aluminum #4-40
LAA-F3-120 120 1.8750 .1873 .125 1.906 .375 .343 .11 2024-T4 Aluminum #4-40
LAA-F3-160 160 2.5000 .1873 .125 2.531 .375 .343 .11 2024-T4 Aluminum #4-40
LAA-F3-184 184 2.8750 .1873 .125 2.906 .375 .343 .11 2024-T4 Aluminum #4-40
LAA-F3-200 200 3.1250 .1873 .125 3.156 .375 .343 .11 2024-T4 Aluminum #4-40
LAA-F4-36 36 .5625 .2498 .125 .594 .500 .375 .12 2024-T4 Aluminum #6-32
LAA-F4-40 40 .6250 .2498 .125 .656 .500 .375 .12 2024-T4 Aluminum #6-32
LAA-F4-42 42 .6562 .2498 .125 .688 .500 .375 .12 2024-T4 Aluminum #6-32
LAA-F4-46 46 .7187 .2498 .125 .750 .500 .375 .12 2024-T4 Aluminum #6-32
LAA-F4-48 48 .7500 .2498 .125 .781 .500 .375 .12 2024-T4 Aluminum #6-32
LAA-F4-60 60 .9375 .2498 .125 .969 .500 .375 .12 2024-T4 Aluminum #6-32
LAA-F4-64 64 1.0000 .2498 .125 1.031 .500 .375 .12 2024-T4 Aluminum #6-32
LAA-F4-70 70 1.0937 .2498 .125 1.125 .500 .375 .12 2024-T4 Aluminum #6-32
LAA-F4-72 72 1.1250 .2498 .125 1.156 .500 .375 .12 2024-T4 Aluminum #6-32
LAA-F4-80 80 1.2500 .2498 .125 1.281 .500 .375 .12 2024-T4 Aluminum #6-32
LAA-F4-84 84 1.3125 .2498 .125 1.344 .500 .375 .12 2024-T4 Aluminum #6-32
LAA-F4-88 88 1.3750 .2498 .125 1.406 .500 .375 .12 2024-T4 Aluminum #6-32
LAA-F4-90 90 1.4062 .2498 .125 1.438 .500 .375 .12 2024-T4 Aluminum #6-32
LAA-F4-100 100 1.5625 .2498 .125 1.594 .500 .375 .12 2024-T4 Aluminum #6-32
LAA-F4-112 112 1.7500 .2498 .125 1.781 .500 .375 .12 2024-T4 Aluminum #6-32
LAA-F4-120 120 1.8750 .2498 .125 1.906 .500 .375 .12 2024-T4 Aluminum #6-32
LAA-F4-136 136 2.1250 .2498 .125 2.156 .500 .375 .12 2024-T4 Aluminum #6-32
LAA-F4-144 144 2.2500 .2498 .125 2.281 .500 .375 .12 2024-T4 Aluminum #6-32
LAA-F4-160 160 2.5000 .2498 .125 2.531 .500 .375 .12 2024-T4 Aluminum #6-32
LAA-F4-168 168 2.6250 .2498 .125 2.656 .500 .375 .12 2024-T4 Aluminum #6-32
LAA-F4-184 184 2.8750 .2498 .125 2.906 .500 .375 .12 2024-T4 Aluminum #6-32
LAA-F4-192 192 3.0000 .2498 .125 3.031 .500 .375 .12 2024-T4 Aluminum #6-32
LAA-F4-200 200 3.1250 .2498 .125 3.156 .500 .375 .12 2024-T4 Aluminum #6-32
LAA-F4-216 216 3.3750 .2498 .125 3.406 .500 .375 .12 2024-T4 Aluminum #6-32
LAA-F4-240 240 3.7500 .2498 .125 3.781 .500 .375 .12 2024-T4 Aluminum #6-32
LAA-F4-264 264 4.1250 .2498 .125 4.156 .500 .375 .12 2024-T4 Aluminum #6-32
LAA-F5-28 28 .4375 .1873 .187 .469 .375 .406 .11 2024-T4 Aluminum #4-40
LAA-F5-29 29 .4531 .1873 .187 .484 .375 .406 .11 2024-T4 Aluminum #4-40
LAA-F5-30 30 .4687 .1873 .187 .500 .375 .406 .11 2024-T4 Aluminum #4-40
LAA-F5-36 36 .5625 .1873 .187 .594 .375 .406 .11 2024-T4 Aluminum #4-40
LAA-F5-42 42 .6562 .1873 .187 .688 .375 .406 .11 2024-T4 Aluminum #4-40
LAA-F5-44 44 .6875 .1873 .187 .719 .375 .406 .11 2024-T4 Aluminum #4-40
LAA-F5-50 50 .7812 .1873 .187 .813 .375 .406 .11 2024-T4 Aluminum #4-40
LAA-F5-56 56 .8750 .1873 .187 .906 .375 .406 .11 2024-T4 Aluminum #4-40
LAA-F5-64 64 1.0000 .1873 .187 1.031 .375 .406 .11 2024-T4 Aluminum #4-40
LAA-F5-65 65 1.0156 .1873 .187 1.047 .375 .406 .11 2024-T4 Aluminum #4-40
LAA-F5-70 70 1.0937 .1873 .187 1.125 .375 .406 .11 2024-T4 Aluminum #4-40
LAA-F5-72 72 1.1250 .1873 .187 1.156 .375 .406 .11 2024-T4 Aluminum #4-40
LAA-F5-84 84 1.3125 .1873 .187 1.344 .375 .406 .11 2024-T4 Aluminum #4-40
LAA-F5-85 85 1.3281 .1873 .187 1.359 .375 .406 .11 2024-T4 Aluminum #4-40
LAA-F5-92 92 1.4375 .1873 .187 1.469 .375 .406 .11 2024-T4 Aluminum #4-40
LAA-F5-100 100 1.5625 .1873 .187 1.593 .375 .406 .11 2024-T4 Aluminum #4-40
LAA-F5-105 105 1.6406 .1873 .187 1.672 .375 .406 .11 2024-T4 Aluminum #4-40
LAA-F5-112 112 1.7500 .1873 .187 1.781 .375 .406 .11 2024-T4 Aluminum #4-40
LAA-F5-120 120 1.8750 .1873 .187 1.906 .375 .406 .11 2024-T4 Aluminum #4-40
LAA-F5-127 127 1.9843 .1873 .187 2.016 .375 .406 .11 2024-T4 Aluminum #4-40
LAA-F5-128 128 2.0000 .1873 .187 2.031 .375 .406 .11 2024-T4 Aluminum #4-40
LAA-F5-160 160 2.5000 .1873 .187 2.531 .375 .406 .11 2024-T4 Aluminum #4-40
LAA-F5-168 168 2.6250 .1873 .187 2.656 .375 .406 .11 2024-T4 Aluminum #4-40
LAA-F5-184 184 2.8750 .1873 .187 2.906 .375 .406 .11 2024-T4 Aluminum #4-40
LAA-F5-224 224 3.5000 .1873 .187 3.531 .375 .406 .11 2024-T4 Aluminum #4-40
LAA-F7-26 26 .4062 .2498 .187 .438 .500 .437 .12 2024-T4 Aluminum #6-32
LAA-F7-27 27 .4218 .2498 .187 .453 .500 .437 .12 2024-T4 Aluminum #6-32
LAA-F7-28 28 .4375 .2498 .187 .469 .500 .437 .12 2024-T4 Aluminum #6-32
LAA-F7-29 29 .4531 .2498 .187 .484 .500 .437 .12 2024-T4 Aluminum #6-32
LAA-F7-30 30 .4687 .2498 .187 .500 .500 .437 .12 2024-T4 Aluminum #6-32
LAA-F7-32 32 .5000 .2498 .187 .531 .500 .437 .12 2024-T4 Aluminum #6-32
LAA-F7-34 34 .5312 .2498 .187 .563 .500 .437 .12 2024-T4 Aluminum #6-32
LAA-F7-36 36 .5625 .2498 .187 .594 .500 .437 .12 2024-T4 Aluminum #6-32
LAA-F7-38 38 .5937 .2498 .187 .625 .500 .437 .12 2024-T4 Aluminum #6-32
LAA-F7-40 40 .6250 .2498 .187 .656 .500 .437 .12 2024-T4 Aluminum #6-32
LAA-F7-42 42 .6562 .2498 .187 .688 .500 .437 .12 2024-T4 Aluminum #6-32
LAA-F7-44 44 .6875 .2498 .187 .719 .500 .437 .12 2024-T4 Aluminum #6-32
LAA-F7-46 46 .7187 .2498 .187 .750 .500 .437 .12 2024-T4 Aluminum #6-32
LAA-F7-48 48 .7500 .2498 .187 .781 .500 .437 .12 2024-T4 Aluminum #6-32
LAA-F7-50 50 .7812 .2498 .187 .813 .500 .437 .12 2024-T4 Aluminum #6-32
LAA-F7-55 55 .8593 .2498 .187 .891 .500 .437 .12 2024-T4 Aluminum #6-32
LAA-F7-56 56 .8750 .2498 .187 .906 .500 .437 .12 2024-T4 Aluminum #6-32
LAA-F7-60 60 .9375 .2498 .187 .969 .500 .437 .12 2024-T4 Aluminum #6-32
LAA-F7-64 64 1.0000 .2498 .187 1.031 .500 .437 .12 2024-T4 Aluminum #6-32
LAA-F7-65 65 1.0156 .2498 .187 1.047 .500 .437 .12 2024-T4 Aluminum #6-32
LAA-F7-70 70 1.0937 .2498 .187 1.125 .500 .437 .12 2024-T4 Aluminum #6-32
LAA-F7-72 72 1.1250 .2498 .187 1.156 .500 .437 .12 2024-T4 Aluminum #6-32
LAA-F7-75 75 1.1718 .2498 .187 1.203 .500 .437 .12 2024-T4 Aluminum #6-32
LAA-F7-80 80 1.2500 .2498 .187 1.281 .500 .437 .12 2024-T4 Aluminum #6-32
LAA-F7-84 84 1.3125 .2498 .187 1.344 .500 .437 .12 2024-T4 Aluminum #6-32
LAA-F7-85 85 1.3281 .2498 .187 1.359 .500 .437 .12 2024-T4 Aluminum #6-32
LAA-F7-88 88 1.3750 .2498 .187 1.406 .500 .437 .12 2024-T4 Aluminum #6-32
LAA-F7-90 90 1.4062 .2498 .187 1.438 .500 .437 .12 2024-T4 Aluminum #6-32
LAA-F7-92 92 1.4375 .2498 .187 1.469 .500 .437 .12 2024-T4 Aluminum #6-32
LAA-F7-95 95 1.4843 .2498 .187 1.516 .500 .437 .12 2024-T4 Aluminum #6-32
LAA-F7-96 96 1.5000 .2498 .187 1.531 .500 .437 .12 2024-T4 Aluminum #6-32
LAA-F7-100 100 1.5625 .2498 .187 1.594 .500 .437 .12 2024-T4 Aluminum #6-32
LAA-F7-104 104 1.6250 .2498 .187 1.656 .500 .437 .12 2024-T4 Aluminum #6-32
LAA-F7-105 105 1.6406 .2498 .187 1.672 .500 .437 .12 2024-T4 Aluminum #6-32
LAA-F7-112 112 1.7500 .2498 .187 1.781 .500 .437 .12 2024-T4 Aluminum #6-32
LAA-F7-120 120 1.8750 .2498 .187 1.906 .500 .437 .12 2024-T4 Aluminum #6-32
LAA-F7-127 127 1.9843 .2498 .187 2.016 .500 .437 .12 2024-T4 Aluminum #6-32
LAA-F7-128 128 2.0000 .2498 .187 2.031 .500 .437 .12 2024-T4 Aluminum #6-32
LAA-F7-136 136 2.1250 .2498 .187 2.156 .500 .437 .12 2024-T4 Aluminum #6-32
LAA-F7-144 144 2.2500 .2498 .187 2.281 .500 .437 .12 2024-T4 Aluminum #6-32
LAA-F7-152 152 2.3750 .2498 .187 2.406 .500 .437 .12 2024-T4 Aluminum #6-32
LAA-F7-160 160 2.5000 .2498 .187 2.531 .500 .437 .12 2024-T4 Aluminum #6-32
LAA-F7-168 168 2.6250 .2498 .187 2.656 .500 .437 .12 2024-T4 Aluminum #6-32
LAA-F7-176 176 2.7500 .2498 .187 2.781 .500 .437 .12 2024-T4 Aluminum #6-32
LAA-F7-184 184 2.8750 .2498 .187 2.906 .500 .437 .12 2024-T4 Aluminum #6-32
LAA-F7-192 192 3.0000 .2498 .187 3.031 .500 .437 .12 2024-T4 Aluminum #6-32
LAA-F7-200 200 3.1250 .2498 .187 3.156 .500 .437 .12 2024-T4 Aluminum #6-32
LAA-F7-208 208 3.2500 .2498 .187 3.281 .500 .437 .12 2024-T4 Aluminum #6-32
LAA-F7-216 216 3.3750 .2498 .187 3.406 .500 .437 .12 2024-T4 Aluminum #6-32
LAA-F7-224 224 3.5000 .2498 .187 3.531 .500 .437 .12 2024-T4 Aluminum #6-32
LAA-F7-232 232 3.6250 .2498 .187 3.656 .500 .437 .12 2024-T4 Aluminum #6-32
LAA-F7-240 240 3.7500 .2498 .187 3.781 .500 .437 .12 2024-T4 Aluminum #6-32
LAA-F7-248 248 3.8750 .2498 .187 3.906 .500 .437 .12 2024-T4 Aluminum #6-32
LAA-F7-256 256 4.0000 .2498 .187 4.031 .500 .437 .12 2024-T4 Aluminum #6-32
LAA-F7-264 264 4.1250 .2498 .187 4.156 .500 .437 .12 2024-T4 Aluminum #6-32
LAS-F1-23 23 .3593 .1248 .125 .391 .312 .312 .09 303 Stainless Steel #2-56
LAS-F1-24 24 .3750 .1248 .125 .406 .312 .312 .09 303 Stainless Steel #2-56
LAS-F1-26 26 .4062 .1248 .125 .438 .312 .312 .09 303 Stainless Steel #2-56
LAS-F1-27 27 .4218 .1248 .125 .453 .312 .312 .09 303 Stainless Steel #2-56
LAS-F1-28 28 .4375 .1248 .125 .469 .312 .312 .09 303 Stainless Steel #2-56
LAS-F1-29 29 .4531 .1248 .125 .484 .312 .312 .09 303 Stainless Steel #2-56
LAS-F1-30 30 .4687 .1248 .125 .500 .312 .312 .09 303 Stainless Steel #2-56
LAS-F1-32 32 .5000 .1248 .125 .531 .312 .312 .09 303 Stainless Steel #2-56
LAS-F1-34 34 .5312 .1248 .125 .563 .312 .312 .09 303 Stainless Steel #2-56
LAS-F1-36 36 .5625 .1248 .125 .594 .312 .312 .09 303 Stainless Steel #2-56
LAS-F1-38 38 .5937 .1248 .125 .625 .312 .312 .09 303 Stainless Steel #2-56
LAS-F1-42 42 .6562 .1248 .125 .688 .312 .312 .09 303 Stainless Steel #2-56
LAS-F1-44 44 .6875 .1248 .125 .719 .312 .312 .09 303 Stainless Steel #2-56
LAS-F1-48 48 .7500 .1248 .125 .781 .312 .312 .09 303 Stainless Steel #2-56
LAS-F1-50 50 .7812 .1248 .125 .813 .312 .312 .09 303 Stainless Steel #2-56
LAS-F1-56 56 .8750 .1248 .125 .906 .312 .312 .09 303 Stainless Steel #2-56
LAS-F1-60 60 .9375 .1248 .125 .969 .312 .312 .09 303 Stainless Steel #2-56
LAS-F1-65 65 1.0156 .1248 .125 1.047 .312 .312 .09 303 Stainless Steel #2-56
LAS-F1-72 72 1.1250 .1248 .125 1.156 .312 .312 .09 303 Stainless Steel #2-56
LAS-F1-75 75 1.1718 .1248 .125 1.203 .312 .312 .09 303 Stainless Steel #2-56
LAS-F1-80 80 1.2500 .1248 .125 1.281 .312 .312 .09 303 Stainless Steel #2-56
LAS-F1-92 92 1.4375 .1248 .125 1.469 .312 .312 .09 303 Stainless Steel #2-56
LAS-F1-95 95 1.4843 .1248 .125 1.516 .312 .312 .09 303 Stainless Steel #2-56
LAS-F1-104 104 1.6250 .1248 .125 1.656 .312 .312 .09 303 Stainless Steel #2-56
LAS-F1-128 128 2.0000 .1248 .125 2.031 .312 .312 .09 303 Stainless Steel #2-56
LAS-F2-23 23 .3593 .1562 .125 .391 .312 .312 .09 303 Stainless Steel #2-56
LAS-F2-24 24 .3750 .1562 .125 .406 .312 .312 .09 303 Stainless Steel #2-56
LAS-F2-25 25 .3906 .1562 .125 .422 .312 .312 .09 303 Stainless Steel #2-56
LAS-F2-26 26 .4062 .1562 .125 .438 .312 .312 .09 303 Stainless Steel #2-56
LAS-F2-27 27 .4218 .1562 .125 .453 .312 .312 .09 303 Stainless Steel #2-56
LAS-F2-28 28 .4375 .1562 .125 .469 .312 .312 .09 303 Stainless Steel #2-56
LAS-F2-29 29 .4531 .1562 .125 .484 .312 .312 .09 303 Stainless Steel #2-56
LAS-F2-30 30 .4687 .1562 .125 .500 .312 .312 .09 303 Stainless Steel #2-56
LAS-F2-32 32 .5000 .1562 .125 .531 .312 .312 .09 303 Stainless Steel #2-56
LAS-F2-34 34 .5312 .1562 .125 .563 .312 .312 .09 303 Stainless Steel #2-56
LAS-F2-36 36 .5625 .1562 .125 .594 .312 .312 .09 303 Stainless Steel #2-56
LAS-F2-38 38 .5937 .1562 .125 .625 .312 .312 .09 303 Stainless Steel #2-56
LAS-F2-40 40 .6250 .1562 .125 .656 .312 .312 .09 303 Stainless Steel #2-56
LAS-F2-42 42 .6562 .1562 .125 .688 .312 .312 .09 303 Stainless Steel #2-56
LAS-F2-44 44 .6875 .1562 .125 .719 .312 .312 .09 303 Stainless Steel #2-56
LAS-F2-46 46 .7187 .1562 .125 .750 .312 .312 .09 303 Stainless Steel #2-56
LAS-F2-48 48 .7500 .1562 .125 .781 .312 .312 .09 303 Stainless Steel #2-56
LAS-F2-56 56 .8750 .1562 .125 .906 .312 .312 .09 303 Stainless Steel #2-56
LAS-F2-60 60 .9375 .1562 .125 .969 .312 .312 .09 303 Stainless Steel #2-56
LAS-F2-64 64 1.0000 .1562 .125 1.031 .312 .312 .09 303 Stainless Steel #2-56
LAS-F2-72 72 1.1250 .1562 .125 1.156 .312 .312 .09 303 Stainless Steel #2-56
LAS-F2-80 80 1.2500 .1562 .125 1.281 .312 .312 .09 303 Stainless Steel #2-56
LAS-F2-84 84 1.3125 .1562 .125 1.344 .312 .312 .09 303 Stainless Steel #2-56
LAS-F2-88 88 1.3750 .1562 .125 1.406 .312 .312 .09 303 Stainless Steel #2-56
LAS-F2-92 92 1.4375 .1562 .125 1.469 .312 .312 .09 303 Stainless Steel #2-56
LAS-F2-96 96 1.5000 .1562 .125 1.531 .312 .312 .09 303 Stainless Steel #2-56
LAS-F2-100 100 1.5625 .1562 .125 1.594 .312 .312 .09 303 Stainless Steel #2-56
LAS-F2-104 104 1.6250 .1562 .125 1.656 .312 .312 .09 303 Stainless Steel #2-56
LAS-F2-112 112 1.7500 .1562 .125 1.781 .312 .312 .09 303 Stainless Steel #2-56
LAS-F2-120 120 1.8750 .1562 .125 1.906 .312 .312 .09 303 Stainless Steel #2-56
LAS-F2-128 128 2.0000 .1562 .125 2.031 .312 .312 .09 303 Stainless Steel #2-56
LAS-F3-27 27 .4218 .1873 .125 .453 .375 .343 .11 303 Stainless Steel #4-40
LAS-F3-28 28 .4375 .1873 .125 .469 .375 .343 .11 303 Stainless Steel #4-40
LAS-F3-29 29 .4531 .1873 .125 .484 .375 .343 .11 303 Stainless Steel #4-40
LAS-F3-30 30 .4687 .1873 .125 .500 .375 .343 .11 303 Stainless Steel #4-40
LAS-F3-32 32 .5000 .1873 .125 .531 .375 .343 .11 303 Stainless Steel #4-40
LAS-F3-34 34 .5312 .1873 .125 .563 .375 .343 .11 303 Stainless Steel #4-40
LAS-F3-36 36 .5625 .1873 .125 .594 .375 .343 .11 303 Stainless Steel #4-40
LAS-F3-40 40 .6250 .1873 .125 .656 .375 .343 .11 303 Stainless Steel #4-40
LAS-F3-42 42 .6562 .1873 .125 .688 .375 .343 .11 303 Stainless Steel #4-40
LAS-F3-44 44 .6875 .1873 .125 .719 .375 .343 .11 303 Stainless Steel #4-40
LAS-F3-46 46 .7187 .1873 .125 .750 .375 .343 .11 303 Stainless Steel #4-40
LAS-F3-48 48 .7500 .1873 .125 .781 .375 .343 .11 303 Stainless Steel #4-40
LAS-F3-50 50 .7812 .1873 .125 .813 .375 .343 .11 303 Stainless Steel #4-40
LAS-F3-55 55 .8593 .1873 .125 .891 .375 .343 .11 303 Stainless Steel #4-40
LAS-F3-60 60 .9375 .1873 .125 .969 .375 .343 .11 303 Stainless Steel #4-40
LAS-F3-65 65 1.0156 .1873 .125 1.047 .375 .343 .11 303 Stainless Steel #4-40
LAS-F3-70 70 1.0937 .1873 .125 1.125 .375 .343 .11 303 Stainless Steel #4-40
LAS-F3-72 72 1.1250 .1873 .125 1.156 .375 .343 .11 303 Stainless Steel #4-40
LAS-F3-80 80 1.2500 .1873 .125 1.281 .375 .343 .11 303 Stainless Steel #4-40
LAS-F3-85 85 1.3281 .1873 .125 1.359 .375 .343 .11 303 Stainless Steel #4-40
LAS-F3-90 90 1.4062 .1873 .125 1.438 .375 .343 .11 303 Stainless Steel #4-40
LAS-F3-92 92 1.4375 .1873 .125 1.469 .375 .343 .11 303 Stainless Steel #4-40
LAS-F3-95 95 1.4843 .1873 .125 1.516 .375 .343 .11 303 Stainless Steel #4-40
LAS-F3-100 100 1.5625 .1873 .125 1.594 .375 .343 .11 303 Stainless Steel #4-40
LAS-F3-105 105 1.6406 .1873 .125 1.672 .375 .343 .11 303 Stainless Steel #4-40
LAS-F3-112 112 1.7500 .1873 .125 1.781 .375 .343 .11 303 Stainless Steel #4-40
LAS-F3-120 120 1.8750 .1873 .125 1.906 .375 .343 .11 303 Stainless Steel #4-40
LAS-F3-160 160 2.5000 .1873 .125 2.531 .375 .343 .11 303 Stainless Steel #4-40
LAS-F3-184 184 2.8750 .1873 .125 2.906 .375 .343 .11 303 Stainless Steel #4-40
LAS-F3-200 200 3.1250 .1873 .125 3.156 .375 .343 .11 303 Stainless Steel #4-40
LAS-F4-36 36 .5625 .2498 .125 .594 .500 .375 .12 303 Stainless Steel #6-32
LAS-F4-40 40 .6250 .2498 .125 .656 .500 .375 .12 303 Stainless Steel #6-32
LAS-F4-42 42 .6562 .2498 .125 .688 .500 .375 .12 303 Stainless Steel #6-32
LAS-F4-46 46 .7187 .2498 .125 .750 .500 .375 .12 303 Stainless Steel #6-32
LAS-F4-48 48 .7500 .2498 .125 .781 .500 .375 .12 303 Stainless Steel #6-32
LAS-F4-60 60 .9375 .2498 .125 .969 .500 .375 .12 303 Stainless Steel #6-32
LAS-F4-64 64 1.0000 .2498 .125 1.031 .500 .375 .12 303 Stainless Steel #6-32
LAS-F4-70 70 1.0937 .2498 .125 1.125 .500 .375 .12 303 Stainless Steel #6-32
LAS-F4-72 72 1.1250 .2498 .125 1.156 .500 .375 .12 303 Stainless Steel #6-32
LAS-F4-80 80 1.2500 .2498 .125 1.281 .500 .375 .12 2024-T4 Aluminum #6-32
LAS-F4-84 84 1.3125 .2498 .125 1.344 .500 .375 .12 303 Stainless Steel #6-32
LAS-F4-88 88 1.3750 .2498 .125 1.406 .500 .375 .12 303 Stainless Steel #6-32
LAS-F4-90 90 1.4062 .2498 .125 1.438 .500 .375 .12 303 Stainless Steel #6-32
LAS-F4-100 100 1.5625 .2498 .125 1.594 .500 .375 .12 303 Stainless Steel #6-32
LAS-F4-112 112 1.7500 .2498 .125 1.781 .500 .375 .12 303 Stainless Steel #6-32
LAS-F4-120 120 1.8750 .2498 .125 1.906 .500 .375 .12 303 Stainless Steel #6-32
LAS-F4-136 136 2.1250 .2498 .125 2.156 .500 .375 .12 303 Stainless Steel #6-32
LAS-F4-144 144 2.2500 .2498 .125 2.281 .500 .375 .12 303 Stainless Steel #6-32
LAS-F4-160 160 2.5000 .2498 .125 2.531 .500 .375 .12 303 Stainless Steel #6-32
LAS-F4-168 168 2.6250 .2498 .125 2.656 .500 .375 .12 303 Stainless Steel #6-32
LAS-F4-184 184 2.8750 .2498 .125 2.906 .500 .375 .12 303 Stainless Steel #6-32
LAS-F4-192 192 3.0000 .2498 .125 3.031 .500 .375 .12 303 Stainless Steel #6-32
LAS-F4-200 200 3.1250 .2498 .125 3.156 .500 .375 .12 303 Stainless Steel #6-32
LAS-F4-216 216 3.3750 .2498 .125 3.406 .500 .375 .12 303 Stainless Steel #6-32
LAS-F4-240 240 3.7500 .2498 .125 3.781 .500 .375 .12 303 Stainless Steel #6-32
LAS-F4-264 264 4.1250 .2498 .125 4.156 .500 .375 .12 303 Stainless Steel #6-32
LAS-F5-28 28 .4375 .1873 .187 .469 .375 .406 .11 303 Stainless Steel #4-40
LAS-F5-29 29 .4531 .1873 .187 .484 .375 .406 .11 303 Stainless Steel #4-40
LAS-F5-30 30 .4687 .1873 .187 .500 .375 .406 .11 303 Stainless Steel #4-40
LAS-F5-36 36 .5625 .1873 .187 .594 .375 .406 .11 303 Stainless Steel #4-40
LAS-F5-42 42 .6562 .1873 .187 .688 .375 .406 .11 303 Stainless Steel #4-40
LAS-F5-44 44 .6875 .1873 .187 .719 .375 .406 .11 303 Stainless Steel #4-40
LAS-F5-50 50 .7812 .1873 .187 .813 .375 .406 .11 303 Stainless Steel #4-40
LAS-F5-56 56 .8750 .1873 .187 .906 .375 .406 .11 303 Stainless Steel #4-40
LAS-F5-64 64 1.0000 .1873 .187 1.031 .375 .406 .11 303 Stainless Steel #4-40
LAS-F5-65 65 1.0156 .1873 .187 1.047 .375 .406 .11 303 Stainless Steel #4-40
LAS-F5-70 70 1.0937 .1873 .187 1.125 .375 .406 .11 303 Stainless Steel #4-40
LAS-F5-72 72 1.1250 .1873 .187 1.156 .375 .406 .11 303 Stainless Steel #4-40
LAS-F5-84 84 1.3125 .1873 .187 1.344 .375 .406 .11 303 Stainless Steel #4-40
LAS-F5-85 85 1.3281 .1873 .187 1.359 .375 .406 .11 303 Stainless Steel #4-40
LAS-F5-92 92 1.4375 .1873 .187 1.469 .375 .406 .11 303 Stainless Steel #4-40
LAS-F5-100 100 1.5625 .1873 .187 1.593 .375 .406 .11 303 Stainless Steel #4-40
LAS-F5-105 105 1.6406 .1873 .187 1.672 .375 .406 .11 303 Stainless Steel #4-40
LAS-F5-112 112 1.7500 .1873 .187 1.781 .375 .406 .11 303 Stainless Steel #4-40
LAS-F5-120 120 1.8750 .1873 .187 1.906 .375 .406 .11 303 Stainless Steel #4-40
LAS-F5-127 127 1.9843 .1873 .187 2.016 .375 .406 .11 303 Stainless Steel #4-40
LAS-F5-128 128 2.0000 .1873 .187 2.031 .375 .406 .11 303 Stainless Steel #4-40
LAS-F5-160 160 2.5000 .1873 .187 2.531 .375 .406 .11 303 Stainless Steel #4-40
LAS-F5-168 168 2.6250 .1873 .187 2.656 .375 .406 .11 303 Stainless Steel #4-40
LAS-F5-184 84 1.3281 .1873 .187 1.359 .375 .406 .11 303 Stainless Steel #4-40
LAS-F5-224 224 3.5000 .1873 .187 3.531 .375 .406 .11 303 Stainless Steel #4-40
LAS-F7-26 26 .4062 .2498 .187 .438 .500 .437 .12 303 Stainless Steel #6-32
LAS-F7-27 27 .4218 .2498 .187 .453 .500 .437 .12 303 Stainless Steel #6-32
LAS-F7-28 28 .4375 .2498 .187 .469 .500 .437 .12 303 Stainless Steel #6-32
LAS-F7-29 29 .4531 .2498 .187 .484 .500 .437 .12 303 Stainless Steel #6-32
LAS-F7-30 30 .4687 .2498 .187 .500 .500 .437 .12 303 Stainless Steel #6-32
LAS-F7-32 32 .5000 .2498 .187 .531 .500 .437 .12 303 Stainless Steel #6-32
LAS-F7-34 34 .5312 .2498 .187 .563 .500 .437 .12 303 Stainless Steel #6-32
LAS-F7-36 36 .5625 .2498 .187 .594 .500 .437 .12 303 Stainless Steel #6-32
LAS-F7-38 38 .5937 .2498 .187 .625 .500 .437 .12 303 Stainless Steel #6-32
LAS-F7-40 40 .6250 .2498 .187 .656 .500 .437 .12 303 Stainless Steel #6-32
LAS-F7-42 42 .6562 .2498 .187 .688 .500 .437 .12 303 Stainless Steel #6-32
LAS-F7-44 44 .6875 .2498 .187 .719 .500 .437 .12 303 Stainless Steel #6-32
LAS-F7-46 46 .7187 .2498 .187 .750 .500 .437 .12 303 Stainless Steel #6-32
LAS-F7-48 48 .7500 .2498 .187 .781 .500 .437 .12 303 Stainless Steel #6-32
LAS-F7-50 50 .7812 .2498 .187 .813 .500 .437 .12 303 Stainless Steel #6-32
LAS-F7-55 55 .8593 .2498 .187 .891 .500 .437 .12 303 Stainless Steel #6-32
LAS-F7-56 56 .8750 .2498 .187 .906 .500 .437 .12 303 Stainless Steel #6-32
LAS-F7-60 60 .9375 .2498 .187 .969 .500 .437 .12 303 Stainless Steel #6-32
LAS-F7-64 64 1.0000 .2498 .187 1.031 .500 .437 .12 303 Stainless Steel #6-32
LAS-F7-65 65 1.0156 .2498 .187 1.047 .500 .437 .12 303 Stainless Steel #6-32
LAS-F7-70 70 1.0937 .2498 .187 1.125 .500 .437 .12 303 Stainless Steel #6-32
LAS-F7-72 72 1.1250 .2498 .187 1.156 .500 .437 .12 303 Stainless Steel #6-32
LAS-F7-75 75 1.1718 .2498 .187 1.203 .500 .437 .12 303 Stainless Steel #6-32
LAS-F7-80 80 1.2500 .2498 .187 1.281 .500 .437 .12 303 Stainless Steel #6-32
LAS-F7-84 84 1.3125 .2498 .187 1.344 .500 .437 .12 303 Stainless Steel #6-32
LAS-F7-85 85 1.3281 .2498 .187 1.359 .500 .437 .12 303 Stainless Steel #6-32
LAS-F7-88 88 1.3750 .2498 .187 1.406 .500 .437 .12 303 Stainless Steel #6-32
LAS-F7-90 90 1.4062 .2498 .187 1.438 .500 .437 .12 303 Stainless Steel #6-32
LAS-F7-92 92 1.4375 .2498 .187 1.469 .500 .437 .12 303 Stainless Steel #6-32
LAS-F7-95 95 1.4843 .2498 .187 1.516 .500 .437 .12 303 Stainless Steel #6-32
LAS-F7-96 96 1.5000 .2498 .187 1.531 .500 .437 .12 303 Stainless Steel #6-32
LAS-F7-100 100 1.5625 .2498 .187 1.594 .500 .437 .12 303 Stainless Steel #6-32
LAS-F7-104 104 1.6250 .2498 .187 1.656 .500 .437 .12 303 Stainless Steel #6-32
LAS-F7-105 105 1.6406 .2498 .187 1.672 .500 .437 .12 303 Stainless Steel #6-32
LAS-F7-112 112 1.7500 .2498 .187 1.781 .500 .437 .12 303 Stainless Steel #6-32
LAS-F7-120 120 1.8750 .2498 .187 1.906 .500 .437 .12 303 Stainless Steel #6-32
LAS-F7-127 127 1.9843 .2498 .187 2.016 .500 .437 .12 303 Stainless Steel #6-32
LAS-F7-128 128 2.0000 .2498 .187 2.031 .500 .437 .12 303 Stainless Steel #6-32
LAS-F7-136 136 2.1250 .2498 .187 2.156 .500 .437 .12 303 Stainless Steel #6-32
LAS-F7-144 144 2.2500 .2498 .187 2.281 .500 .437 .12 303 Stainless Steel #6-32
LAS-F7-152 152 2.3750 .2498 .187 2.406 .500 .437 .12 303 Stainless Steel #6-32
LAS-F7-160 160 2.5000 .2498 .187 2.531 .500 .437 .12 303 Stainless Steel #6-32
LAS-F7-168 168 2.6250 .2498 .187 2.656 .500 .437 .12 303 Stainless Steel #6-32
LAS-F7-176 176 2.7500 .2498 .187 2.781 .500 .437 .12 303 Stainless Steel #6-32
LAS-F7-184 184 2.8750 .2498 .187 2.906 .500 .437 .12 303 Stainless Steel #6-32
LAS-F7-192 192 3.0000 .2498 .187 3.031 .500 .437 .12 303 Stainless Steel #6-32
LAS-F7-200 200 3.1250 .2498 .187 3.156 .500 .437 .12 303 Stainless Steel #6-32
LAS-F7-208 208 3.2500 .2498 .187 3.281 .500 .437 .12 303 Stainless Steel #6-32
LAS-F7-216 216 3.3750 .2498 .187 3.406 .500 .437 .12 303 Stainless Steel #6-32
LAS-F7-224 224 3.5000 .2498 .187 3.531 .500 .437 .12 303 Stainless Steel #6-32
LAS-F7-232 232 3.6250 .2498 .187 3.656 .500 .437 .12 303 Stainless Steel #6-32
LAS-F7-240 240 3.7500 .2498 .187 3.781 .500 .437 .12 303 Stainless Steel #6-32
LAS-F7-248 248 3.8750 .2498 .187 3.906 .500 .437 .12 303 Stainless Steel #6-32
LAS-F7-256 256 4.0000 .2498 .187 4.031 .500 .437 .12 303 Stainless Steel #6-32
LAS-F7-264 264 4.1250 .2498 .187 4.156 .500 .437 .12 303 Stainless Steel #6-32
