Spur Gear-Split Hub-48 Pitch

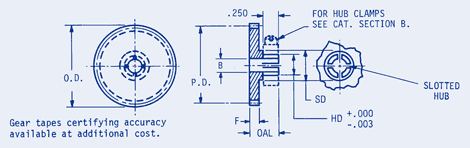

Spur Gear-Split Hub-48 Pitch
  • T = Number of Teeth
  • PD = Pitch Diameter
  • B = Bore
  • F = Face
  • OD = Outside Diameter
  • HD = Hub Diameter
  • OAL = Overall Length
  • M= Material
  • SD = Step Diameter
20 degree pressure angle, Quality AGMA 10. Aluminum gears are anodized before gear cutting.
  • T = Number of Teeth
  • PD = Pitch Diameter
  • B = Bore
  • F = Face
  • OD = Outside Diameter
  • HD = Hub Diameter
  • OAL = Overall Length
  • M= Material
  • SD = Step Diameter
Part Number of Teeth Pitch Diameter Bore Face Outside Diameter Hub Diameter Overall Length Material Step Diameter
Buy View
LBA-E1-16 16 .3333 .1248 .125 .375 .188 .406 2024-T4 Aluminum 1/4
LBA-E1-17 17 .3541 .1248 .125 .396 .188 .406 2024-T4 Aluminum 1/4
LBA-E1-18 18 .3750 .1248 .125 .417 .188 .406 2024-T4 Aluminum 1/4
LBA-E1-19 19 .3958 .1248 .125 .438 .188 .406 2024-T4 Aluminum 1/4
LBA-E1-20 20 .4167 .1248 .125 .458 .188 .406 2024-T4 Aluminum 1/4
LBA-E1-21 21 .4375 .1248 .125 .479 .188 .406 2024-T4 Aluminum 1/4
LBA-E1-22 22 .4583 .1248 .125 .500 .188 .406 2024-T4 Aluminum 1/4
LBA-E1-23 23 .4791 .1248 .125 .521 .188 .406 2024-T4 Aluminum 1/4
LBA-E1-24 24 .5000 .1248 .125 .542 .188 .406 2024-T4 Aluminum 1/4
LBA-E1-25 25 .5208 .1248 .125 .563 .188 .406 2024-T4 Aluminum 1/4
LBA-E1-26 26 .5416 .1248 .125 .583 .188 .406 2024-T4 Aluminum 1/4
LBA-E1-27 27 .5625 .1248 .125 .604 .188 .406 2024-T4 Aluminum 1/4
LBA-E1-28 28 .5833 .1248 .125 .625 .188 .406 2024-T4 Aluminum 1/4
LBA-E1-29 29 .6041 .1248 .125 .646 .188 .406 2024-T4 Aluminum 1/4
LBA-E1-30 30 .6250 .1248 .125 .667 .188 .406 2024-T4 Aluminum 1/4
LBA-E1-32 32 .6666 .1248 .125 .708 .188 .406 2024-T4 Aluminum 1/4
LBA-E1-34 34 .7083 .1248 .125 .750 .188 .406 2024-T4 Aluminum 1/4
LBA-E1-36 36 .7500 .1248 .125 .792 .188 .406 2024-T4 Aluminum 1/4
LBA-E1-38 38 .7916 .1248 .125 .833 .188 .406 2024-T4 Aluminum 1/4
LBA-E1-40 40 .8333 .1248 .125 .875 .188 .406 2024-T4 Aluminum 1/4
LBA-E1-42 42 .8750 .1248 .125 .917 .188 .406 2024-T4 Aluminum 1/4
LBA-E1-44 44 .9166 .1248 .125 .958 .188 .406 2024-T4 Aluminum 1/4
LBA-E1-46 46 .9583 .1248 .125 1.000 .188 .406 2024-T4 Aluminum 1/4
LBA-E1-48 48 1.0000 .1248 .125 1.042 .188 .406 2024-T4 Aluminum 1/4
LBA-E1-50 50 1.0416 .1248 .125 1.083 .188 .406 2024-T4 Aluminum 1/4
LBA-E1-55 55 1.1458 .1248 .125 1.188 .188 .406 2024-T4 Aluminum 1/4
LBA-E1-60 60 1.2500 .1248 .125 1.292 .188 .406 2024-T4 Aluminum 1/4
LBA-E1-66 66 1.3750 .1248 .125 1.417 .188 .406 2024-T4 Aluminum 1/4
LBA-E1-72 72 1.5000 .1248 .125 1.542 .188 .406 2024-T4 Aluminum 1/4
LBA-E1-90 90 1.8750 .1248 .125 1.917 .188 .406 2024-T4 Aluminum 1/4
LBA-E2-18 18 .3750 .1873 .125 .417 .250 .406 2024-T4 Aluminum 5/16
LBA-E2-19 19 .3958 .1873 .125 .438 .250 .406 2024-T4 Aluminum 5/16
LBA-E2-20 20 .4167 .1873 .125 .458 .250 .406 2024-T4 Aluminum 5/16
LBA-E2-21 21 .4375 .1873 .125 .479 .250 .406 2024-T4 Aluminum 5/16
LBA-E2-22 22 .4583 .1873 .125 .500 .250 .406 2024-T4 Aluminum 5/16
LBA-E2-23 23 .4791 .1873 .125 .521 .250 .406 2024-T4 Aluminum 5/16
LBA-E2-24 24 .5000 .1873 .125 .542 .250 .406 2024-T4 Aluminum 5/16
LBA-E2-25 25 .5208 .1873 .125 .563 .250 .406 2024-T4 Aluminum 5/16
LBA-E2-26 26 .5416 .1873 .125 .583 .250 .406 2024-T4 Aluminum 5/16
LBA-E2-27 27 .5625 .1873 .125 .604 .250 .406 2024-T4 Aluminum 5/16
LBA-E2-28 28 .5833 .1873 .125 .625 .250 .406 2024-T4 Aluminum 5/16
LBA-E2-29 29 .6041 .1873 .125 .646 .250 .406 2024-T4 Aluminum 5/16
LBA-E2-30 30 .6250 .1873 .125 .667 .250 .406 2024-T4 Aluminum 5/16
LBA-E2-32 32 .6666 .1873 .125 .708 .250 .406 2024-T4 Aluminum 5/16
LBA-E2-34 34 .7083 .1873 .125 .750 .250 .406 2024-T4 Aluminum 5/16
LBA-E2-36 36 .7500 .1873 .125 .792 .250 .406 2024-T4 Aluminum 5/16
LBA-E2-38 38 .7916 .1873 .125 .833 .250 .406 2024-T4 Aluminum 5/16
LBA-E2-40 40 .8333 .1873 .125 .875 .250 .406 2024-T4 Aluminum 5/16
LBA-E2-42 42 .8750 .1873 .125 .917 .250 .406 2024-T4 Aluminum 5/16
LBA-E2-44 44 .9166 .1873 .125 .958 .250 .406 2024-T4 Aluminum 5/16
LBA-E2-46 46 .9583 .1873 .125 1.000 .250 .406 2024-T4 Aluminum 5/16
LBA-E2-48 48 1.0000 .1873 .125 1.042 .250 .406 2024-T4 Aluminum 5/16
LBA-E2-50 50 1.0416 .1873 .125 1.083 .250 .406 2024-T4 Aluminum 5/16
LBA-E2-55 55 1.1458 .1873 .125 1.188 .250 .406 2024-T4 Aluminum 5/16
LBA-E2-56 56 1.1666 .1873 .125 1.208 .250 .406 2024-T4 Aluminum 5/16
LBA-E2-60 60 1.2500 .1873 .125 1.292 .250 .406 2024-T4 Aluminum 5/16
LBA-E2-66 66 1.3750 .1873 .125 1.417 .250 .406 2024-T4 Aluminum 5/16
LBA-E2-72 72 1.5000 .1873 .125 1.542 .250 .406 2024-T4 Aluminum 5/16
LBA-E2-78 78 1.6250 .1873 .125 1.667 .250 .406 2024-T4 Aluminum 5/16
LBA-E2-84 84 1.7500 .1873 .125 1.792 .250 .406 2024-T4 Aluminum 5/16
LBA-E3-20 20 .4166 .2498 .125 .458 .312 .406 2024-T4 Aluminum 3/8
LBA-E3-21 21 .4375 .2498 .125 .479 .312 .406 2024-T4 Aluminum 3/8
LBA-E3-22 22 .4583 .2498 .125 .500 .312 .406 2024-T4 Aluminum 3/8
LBA-E3-23 23 .4791 .2498 .125 .521 .312 .406 2024-T4 Aluminum 3/8
LBA-E3-24 24 .5000 .2498 .125 .542 .312 .406 2024-T4 Aluminum 3/8
LBA-E3-25 25 .5208 .2498 .125 .563 .312 .406 2024-T4 Aluminum 3/8
LBA-E3-26 26 .5416 .2498 .125 .583 .312 .406 2024-T4 Aluminum 3/8
LBA-E3-27 27 .5625 .2498 .125 .604 .312 .406 2024-T4 Aluminum 3/8
LBA-E3-28 28 .5833 .2498 .125 .625 .312 .406 2024-T4 Aluminum 3/8
LBA-E3-29 29 .6041 .2498 .125 .646 .312 .406 2024-T4 Aluminum 3/8
LBA-E3-30 30 .6250 .2498 .125 .667 .312 .406 2024-T4 Aluminum 3/8
LBA-E3-32 32 .6666 .2498 .125 .708 .312 .406 2024-T4 Aluminum 3/8
LBA-E3-34 34 .7083 .2498 .125 .750 .312 .406 2024-T4 Aluminum 3/8
LBA-E3-36 36 .7500 .2498 .125 .792 .312 .406 2024-T4 Aluminum 3/8
LBA-E3-38 38 .7916 .2498 .125 .833 .312 .406 2024-T4 Aluminum 3/8
LBA-E3-40 40 .8333 .2498 .125 .875 .312 .406 2024-T4 Aluminum 3/8
LBA-E3-42 42 .8750 .2498 .125 .917 .312 .406 2024-T4 Aluminum 3/8
LBA-E3-44 44 .9166 .2498 .125 .958 .312 .406 2024-T4 Aluminum 3/8
LBA-E3-46 46 .9583 .2498 .125 1.000 .312 .406 2024-T4 Aluminum 3/8
LBA-E3-48 48 1.0000 .2498 .125 1.042 .312 .406 2024-T4 Aluminum 3/8
LBA-E3-50 50 1.0416 .2498 .125 1.083 .312 .406 2024-T4 Aluminum 3/8
LBA-E3-55 55 1.1458 .2498 .125 1.188 .312 .406 2024-T4 Aluminum 3/8
LBA-E3-56 56 1.1666 .2498 .125 1.208 .312 .406 2024-T4 Aluminum 3/8
LBA-E3-60 60 1.2500 .2498 .125 1.292 .312 .406 2024-T4 Aluminum 3/8
LBA-E3-66 66 1.3750 .2498 .125 1.417 .312 .406 2024-T4 Aluminum 3/8
LBA-E3-72 72 1.5000 .2498 .125 1.542 .312 .406 2024-T4 Aluminum 3/8
LBA-E3-78 78 1.6250 .2498 .125 1.667 .312 .406 2024-T4 Aluminum 3/8
LBA-E3-84 84 1.7500 .2498 .125 1.792 .312 .406 2024-T4 Aluminum 3/8
LBA-E3-90 90 1.8750 .2498 .125 1.917 .312 .406 2024-T4 Aluminum 3/8
LBA-E3-96 96 2.0000 .2498 .125 2.042 .312 .406 2024-T4 Aluminum 3/8
LBA-E3-102 102 2.1250 .2498 .125 2.167 .312 .406 2024-T4 Aluminum 3/8
LBA-E3-108 108 2.2500 .2498 .125 2.292 .312 .406 2024-T4 Aluminum 3/8
LBA-E3-114 114 2.3750 .2498 .125 2.417 .312 .406 2024-T4 Aluminum 3/8
LBA-E3-120 120 2.5000 .2498 .125 2.542 .312 .406 2024-T4 Aluminum 3/8
LBA-E3-127 127 2.6458 .2498 .125 2.688 .312 .406 2024-T4 Aluminum 3/8
LBA-E3-132 132 2.7500 .2498 .125 2.792 .312 .406 2024-T4 Aluminum 3/8
LBA-E3-144 144 3.0000 .2498 .125 3.042 .312 .406 2024-T4 Aluminum 3/8
LBA-E3-156 156 3.2500 .2498 .125 3.292 .312 .406 2024-T4 Aluminum 3/8
LBA-E3-168 168 3.5000 .2498 .125 3.542 .312 .406 2024-T4 Aluminum 3/8
LBA-E3-180 180 3.7500 .2498 .125 3.792 .312 .406 2024-T4 Aluminum 3/8
LBA-E3-192 192 4.0000 .2498 .125 4.042 .312 .406 2024-T4 Aluminum 3/8
LBA-E4-24 24 .5000 .2498 .187 .542 .312 .500 2024-T4 Aluminum .406
LBA-E4-28 28 .5833 .2498 .187 .625 .312 .500 2024-T4 Aluminum .406
LBA-E4-30 30 .6250 .2498 .187 .667 .312 .500 2024-T4 Aluminum .406
LBA-E4-32 32 .6666 .2498 .187 .708 .312 .500 2024-T4 Aluminum .406
LBA-E4-36 36 .7500 .2498 .187 .792 .312 .500 2024-T4 Aluminum .406
LBA-E4-40 40 .8333 .2498 .187 .875 .312 .500 2024-T4 Aluminum .406
LBA-E4-42 42 .8750 .2498 .187 .917 .312 .500 2024-T4 Aluminum .406
LBA-E4-48 48 1.0000 .2498 .187 1.042 .312 .500 2024-T4 Aluminum .406
LBA-E4-50 50 1.0416 .2498 .187 1.083 .312 .500 2024-T4 Aluminum .406
LBA-E4-54 54 1.1250 .2498 .187 1.167 .312 .500 2024-T4 Aluminum .406
LBA-E4-60 60 1.2500 .2498 .187 1.292 .312 .500 2024-T4 Aluminum .406
LBA-E4-70 70 1.4583 .2498 .187 1.500 .312 .500 2024-T4 Aluminum .406
LBA-E4-72 72 1.5000 .2498 .187 1.542 .312 .500 2024-T4 Aluminum .406
LBA-E4-78 78 1.6250 .2498 .187 1.667 .312 .500 2024-T4 Aluminum .406
LBA-E4-80 80 1.6666 .2498 .187 1.708 .312 .500 2024-T4 Aluminum .406
LBA-E4-84 84 1.7500 .2498 .187 1.792 .312 .500 2024-T4 Aluminum .406
LBA-E4-88 88 1.8333 .2498 .187 1.875 .312 .500 2024-T4 Aluminum .406
LBA-E4-90 90 1.8750 .2498 .187 1.917 .312 .500 2024-T4 Aluminum .406
LBA-E4-96 96 2.0000 .2498 .187 2.042 .312 .500 2024-T4 Aluminum .406
LBA-E4-100 100 2.0833 .2498 .187 2.125 .312 .500 2024-T4 Aluminum .406
LBA-E4-108 108 2.2500 .2498 .187 2.292 .312 .500 2024-T4 Aluminum .406
LBA-E4-112 112 2.3333 .2498 .187 2.375 .312 .500 2024-T4 Aluminum .406
LBA-E4-120 120 2.5000 .2498 .187 2.542 .312 .500 2024-T4 Aluminum .406
LBA-E4-128 128 2.6667 .2498 .187 2.708 .312 .500 2024-T4 Aluminum .406
LBA-E4-132 132 2.7500 .2498 .187 2.792 .312 .500 2024-T4 Aluminum .406
LBA-E4-144 144 3.0000 .2498 .187 3.042 .312 .500 2024-T4 Aluminum .406
LBA-E4-150 150 3.1250 .2498 .187 3.167 .312 .500 2024-T4 Aluminum .406
LBA-E4-162 162 3.3750 .2498 .187 3.417 .312 .500 2024-T4 Aluminum .406
LBA-E4-168 168 3.5000 .2498 .187 3.542 .312 .500 2024-T4 Aluminum .406
LBA-E4-180 180 3.7500 .2498 .187 3.792 .312 .500 2024-T4 Aluminum .406
LBS-E1-16 16 .3333 .1248 .125 .375 .188 .406 303 Stainless Steel 1/4
LBS-E1-17 17 .3541 .1248 .125 .396 .188 .406 303 Stainless Steel 1/4
LBS-E1-18 18 .3750 .1248 .125 .417 .188 .406 303 Stainless Steel 1/4
LBS-E1-19 19 .3958 .1248 .125 .438 .188 .406 303 Stainless Steel 1/4
LBS-E1-20 20 .4167 .1248 .125 .458 .188 .406 303 Stainless Steel 1/4
LBS-E1-21 21 .4375 .1248 .125 .479 .188 .406 303 Stainless Steel 1/4
LBS-E1-22 22 .4583 .1248 .125 .500 .188 .406 303 Stainless Steel 1/4
LBS-E1-23 23 .4791 .1248 .125 .521 .188 .406 303 Stainless Steel 1/4
LBS-E1-24 24 .5000 .1248 .125 .542 .188 .406 303 Stainless Steel 1/4
LBS-E1-25 25 .5208 .1248 .125 .563 .188 .406 303 Stainless Steel 1/4
LBS-E1-26 26 .5416 .1248 .125 .583 .188 .406 303 Stainless Steel 1/4
LBS-E1-27 27 .5625 .1248 .125 .604 .188 .406 303 Stainless Steel 1/4
LBS-E1-28 28 .5833 .1248 .125 .625 .188 .406 303 Stainless Steel 1/4
LBS-E1-29 29 .6041 .1248 .125 .646 .188 .406 303 Stainless Steel 1/4
LBS-E1-30 30 .6250 .1248 .125 .667 .188 .406 303 Stainless Steel 1/4
LBS-E1-32 32 .6666 .1248 .125 .708 .188 .406 303 Stainless Steel 1/4
LBS-E1-34 34 .7083 .1248 .125 .750 .188 .406 303 Stainless Steel 1/4
LBS-E1-36 36 .7500 .1248 .125 .792 .188 .406 303 Stainless Steel 1/4
LBS-E1-38 38 .7916 .1248 .125 .833 .188 .406 303 Stainless Steel 1/4
LBS-E1-40 40 .8333 .1248 .125 .875 .188 .406 303 Stainless Steel 1/4
LBS-E1-42 42 .8750 .1248 .125 .917 .188 .406 303 Stainless Steel 1/4
LBS-E1-44 44 .9166 .1248 .125 .958 .188 .406 303 Stainless Steel 1/4
LBS-E1-46 46 .9583 .1248 .125 1.000 .188 .406 303 Stainless Steel 1/4
LBS-E1-48 48 1.0000 .1248 .125 1.042 .188 .406 303 Stainless Steel 1/4
LBS-E1-50 50 1.0416 .1248 .125 1.083 .188 .406 303 Stainless Steel 1/4
LBS-E1-55 55 1.1458 .1248 .125 1.188 .188 .406 303 Stainless Steel 1/4
LBS-E1-60 60 1.2500 .1248 .125 1.292 .188 .406 303 Stainless Steel 1/4
LBS-E1-66 66 1.3750 .1248 .125 1.417 .188 .406 303 Stainless Steel 1/4
LBS-E1-72 72 1.5000 .1248 .125 1.542 .188 .406 303 Stainless Steel 1/4
LBS-E1-90 90 1.8750 .1248 .125 1.917 .188 .406 303 Stainless Steel 1/4
LBS-E2-18 18 .3750 .1873 .125 .417 .250 .406 303 Stainless Steel 5/16
LBS-E2-19 19 .3958 .1873 .125 .438 .250 .406 303 Stainless Steel 5/16
LBS-E2-20 20 .4167 .1873 .125 .458 .250 .406 303 Stainless Steel 5/16
LBS-E2-21 21 .4375 .1873 .125 .479 .250 .406 303 Stainless Steel 5/16
LBS-E2-22 22 .4583 .1873 .125 .500 .250 .406 303 Stainless Steel 5/16
LBS-E2-23 23 .4791 .1873 .125 .521 .250 .406 303 Stainless Steel 5/16
LBS-E2-24 24 .5000 .1873 .125 .542 .250 .406 303 Stainless Steel 5/16
LBS-E2-25 25 .5208 .1873 .125 .563 .250 .406 303 Stainless Steel 5/16
LBS-E2-26 26 .5416 .1873 .125 .583 .250 .406 303 Stainless Steel 5/16
LBS-E2-27 27 .5625 .1873 .125 .604 .250 .406 303 Stainless Steel 5/16
LBS-E2-28 28 .5833 .1873 .125 .625 .250 .406 303 Stainless Steel 5/16
LBS-E2-29 29 .6041 .1873 .125 .646 .250 .406 303 Stainless Steel 5/16
LBS-E2-30 30 .6250 .1873 .125 .667 .250 .406 303 Stainless Steel 5/16
LBS-E2-32 32 .6666 .1873 .125 .708 .250 .406 303 Stainless Steel 5/16
LBS-E2-34 34 .7083 .1873 .125 .750 .250 .406 303 Stainless Steel 5/16
LBS-E2-36 36 .7500 .1873 .125 .792 .250 .406 303 Stainless Steel 5/16
LBS-E2-38 38 .7916 .1873 .125 .833 .250 .406 303 Stainless Steel 5/16
LBS-E2-40 40 .8333 .1873 .125 .875 .250 .406 303 Stainless Steel 5/16
LBS-E2-42 42 .8750 .1873 .125 .917 .250 .406 303 Stainless Steel 5/16
LBS-E2-44 44 .9166 .1873 .125 .958 .250 .406 303 Stainless Steel 5/16
LBS-E2-46 46 .9583 .1873 .125 1.000 .250 .406 303 Stainless Steel 5/16
LBS-E2-48 48 1.0000 .1873 .125 1.042 .250 .406 303 Stainless Steel 5/16
LBS-E2-50 50 1.0416 .1873 .125 1.083 .250 .406 303 Stainless Steel 5/16
LBS-E2-55 55 1.1458 .1873 .125 1.188 .250 .406 303 Stainless Steel 5/16
LBS-E2-56 56 1.1666 .1873 .125 1.208 .250 .406 303 Stainless Steel 5/16
LBS-E2-60 60 1.2500 .1873 .125 1.292 .250 .406 303 Stainless Steel 5/16
LBS-E2-66 66 1.3750 .1873 .125 1.417 .250 .406 303 Stainless Steel 5/16
LBS-E2-72 72 1.5000 .1873 .125 1.542 .250 .406 303 Stainless Steel 5/16
LBS-E2-78 78 1.6250 .1873 .125 1.667 .250 .406 303 Stainless Steel 5/16
LBS-E2-84 84 1.7500 .1873 .125 1.792 .250 .406 303 Stainless Steel 5/16
LBS-E3-20 20 .4166 .2498 .125 .458 .312 .406 303 Stainless Steel 3/8
LBS-E3-21 21 .4375 .2498 .125 .479 .312 .406 303 Stainless Steel 3/8
LBS-E3-22 22 .4583 .2498 .125 .500 .312 .406 303 Stainless Steel 3/8
LBS-E3-23 23 .4791 .2498 .125 .521 .312 .406 303 Stainless Steel 3/8
LBS-E3-24 24 .5000 .2498 .125 .542 .312 .406 303 Stainless Steel 3/8
LBS-E3-25 25 .5208 .2498 .125 .563 .312 .406 303 Stainless Steel 3/8
LBS-E3-26 26 .5416 .2498 .125 .583 .312 .406 303 Stainless Steel 3/8
LBS-E3-27 27 .5625 .2498 .125 .604 .312 .406 303 Stainless Steel 3/8
LBS-E3-28 28 .5833 .2498 .125 .625 .312 .406 303 Stainless Steel 3/8
LBS-E3-29 29 .6041 .2498 .125 .646 .312 .406 303 Stainless Steel 3/8
LBS-E3-30 30 .6250 .2498 .125 .667 .312 .406 303 Stainless Steel 3/8
LBS-E3-32 32 .6666 .2498 .125 .708 .312 .406 303 Stainless Steel 3/8
LBS-E3-34 34 .7083 .2498 .125 .750 .312 .406 303 Stainless Steel 3/8
LBS-E3-36 36 .7500 .2498 .125 .792 .312 .406 303 Stainless Steel 3/8
LBS-E3-38 38 .7916 .2498 .125 .833 .312 .406 303 Stainless Steel 3/8
LBS-E3-40 40 .8333 .2498 .125 .875 .312 .406 303 Stainless Steel 3/8
LBS-E3-42 42 .8750 .2498 .125 .917 .312 .406 303 Stainless Steel 3/8
LBS-E3-44 44 .9166 .2498 .125 .958 .312 .406 303 Stainless Steel 3/8
LBS-E3-46 46 .9583 .2498 .125 1.000 .312 .406 303 Stainless Steel 3/8
LBS-E3-48 48 1.0000 .2498 .125 1.042 .312 .406 303 Stainless Steel 3/8
LBS-E3-50 50 1.0416 .2498 .125 1.083 .312 .406 303 Stainless Steel 3/8
LBS-E3-55 55 1.1458 .2498 .125 1.188 .312 .406 303 Stainless Steel 3/8
LBS-E3-56 56 1.1666 .2498 .125 1.208 .312 .406 303 Stainless Steel 3/8
LBS-E3-60 60 1.2500 .2498 .125 1.292 .312 .406 303 Stainless Steel 3/8
LBS-E3-66 66 1.3750 .2498 .125 1.417 .312 .406 303 Stainless Steel 3/8
LBS-E3-72 72 1.5000 .2498 .125 1.542 .312 .406 303 Stainless Steel 3/8
LBS-E3-78 78 1.6250 .2498 .125 1.667 .312 .406 303 Stainless Steel 3/8
LBS-E3-84 84 1.7500 .2498 .125 1.792 .312 .406 303 Stainless Steel 3/8
LBS-E3-90 90 1.8750 .2498 .125 1.917 .312 .406 303 Stainless Steel 3/8
LBS-E3-96 96 2.0000 .2498 .125 2.042 .312 .406 303 Stainless Steel 3/8
LBS-E3-102 102 2.1250 .2498 .125 2.167 .312 .406 303 Stainless Steel 3/8
LBS-E3-108 108 2.2500 .2498 .125 2.292 .312 .406 303 Stainless Steel 3/8
LBS-E3-114 114 2.3750 .2498 .125 2.417 .312 .406 303 Stainless Steel 3/8
LBS-E3-120 120 2.5000 .2498 .125 2.542 .312 .406 303 Stainless Steel 3/8
LBS-E3-127 127 2.6458 .2498 .125 2.688 .312 .406 303 Stainless Steel 3/8
LBS-E3-132 132 2.7500 .2498 .125 2.792 .312 .406 303 Stainless Steel 3/8
LBS-E3-144 144 3.0000 .2498 .125 3.042 .312 .406 303 Stainless Steel 3/8
LBS-E3-156 156 3.2500 .2498 .125 3.292 .312 .406 303 Stainless Steel 3/8
LBS-E3-168 168 3.5000 .2498 .125 3.542 .312 .406 303 Stainless Steel 3/8
LBS-E3-180 180 3.7500 .2498 .125 3.792 .312 .406 303 Stainless Steel 3/8
LBS-E3-192 192 4.0000 .2498 .125 4.042 .312 .406 303 Stainless Steel 3/8
LBS-E4-24 24 .5000 .2498 .187 .542 .312 .500 303 Stainless Steel .406
LBS-E4-28 28 .5833 .2498 .187 .625 .312 .500 303 Stainless Steel .406
LBS-E4-30 30 .6250 .2498 .187 .667 .312 .500 303 Stainless Steel .406
LBS-E4-32 32 .6666 .2498 .187 .708 .312 .500 303 Stainless Steel .406
LBS-E4-36 36 .7500 .2498 .187 .792 .312 .500 303 Stainless Steel .406
LBS-E4-40 40 .8333 .2498 .187 .875 .312 .500 303 Stainless Steel .406
LBS-E4-42 42 .8750 .2498 .187 .917 .312 .500 303 Stainless Steel .406
LBS-E4-48 48 1.0000 .2498 .187 1.042 .312 .500 303 Stainless Steel .406
LBS-E4-50 50 1.0416 .2498 .187 1.083 .312 .500 303 Stainless Steel .406
LBS-E4-54 54 1.1250 .2498 .187 1.167 .312 .500 303 Stainless Steel .406
LBS-E4-60 60 1.2500 .2498 .187 1.292 .312 .500 303 Stainless Steel .406
LBS-E4-70 70 1.4583 .2498 .187 1.500 .312 .500 303 Stainless Steel .406
LBS-E4-72 72 1.5000 .2498 .187 1.542 .312 .500 303 Stainless Steel .406
LBS-E4-78 78 1.6250 .2498 .187 1.667 .312 .500 303 Stainless Steel .406
LBS-E4-80 80 1.6666 .2498 .187 1.708 .312 .500 303 Stainless Steel .406
LBS-E4-84 84 1.7500 .2498 .187 1.792 .312 .500 303 Stainless Steel .406
LBS-E4-88 88 1.8333 .2498 .187 1.875 .312 .500 303 Stainless Steel .406
LBS-E4-90 90 1.8750 .2498 .187 1.917 .312 .500 303 Stainless Steel .406
LBS-E4-96 96 2.0000 .2498 .187 2.042 .312 .500 303 Stainless Steel .406
LBS-E4-100 100 2.0833 .2498 .187 2.125 .312 .500 303 Stainless Steel .406
LBS-E4-108 108 2.2500 .2498 .187 2.292 .312 .500 303 Stainless Steel .406
LBS-E4-112 112 2.3333 .2498 .187 2.375 .312 .500 303 Stainless Steel .406
LBS-E4-120 120 2.5000 .2498 .187 2.542 .312 .500 303 Stainless Steel .406
LBS-E4-128 128 2.6667 .2498 .187 2.708 .312 .500 303 Stainless Steel .406
LBS-E4-132 132 2.7500 .2498 .187 2.792 .312 .500 303 Stainless Steel .406
LBS-E4-144 144 3.0000 .2498 .187 3.042 .312 .500 303 Stainless Steel .406
LBS-E4-150 150 3.1250 .2498 .187 3.167 .312 .500 303 Stainless Steel .406
LBS-E4-162 162 3.3750 .2498 .187 3.417 .312 .500 303 Stainless Steel .406
LBS-E4-168 168 3.5000 .2498 .187 3.542 .312 .500 303 Stainless Steel .406
LBS-E4-180 180 3.7500 .2498 .187 3.792 .312 .500 303 Stainless Steel .406
