Spur Gear-Pin Hub-48 Pitch

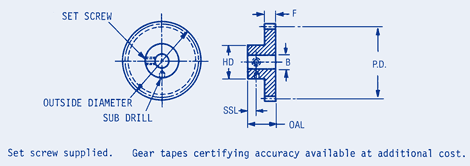

Spur Gear-Pin Hub-48 Pitch
  • T= Number of Teeth
  • PD = Pitch Diameter
  • B = Bore
  • F = Face Width
  • OD = Outside Diameter
  • HD = Hub Diameter
  • OAL = Overall Length
  • SSL = Set Screw Location
  • M= Material
20 degree pressure angle, Quality AGMA 10. Aluminum gears are anodized before gear cutting.
  • T= Number of Teeth
  • PD = Pitch Diameter
  • B = Bore
  • F = Face Width
  • OD = Outside Diameter
  • HD = Hub Diameter
  • OAL = Overall Length
  • SSL = Set Screw Location
  • M= Material
Part Number of Teeth Pitch Diameter Bore Face Width Outside Diameter Hub Diameter Overall Length Set Screw Location Material
Buy View
LAA-E1-18 18 .3750 .1248 .125 .417 .312 .312 .09 2024-T4 Aluminum
LAA-E1-19 19 .3958 .1248 .125 .438 .312 .312 .09 2024-T4 Aluminum
LAA-E1-20 20 .4167 .1248 .125 .458 .312 .312 .09 2024-T4 Aluminum
LAA-E1-22 22 .4583 .1248 .125 .500 .312 .312 .09 2024-T4 Aluminum
LAA-E1-25 25 .5208 .1248 .125 .563 .312 .312 .09 2024-T4 Aluminum
LAA-E1-28 28 .5833 .1248 .125 .625 .312 .312 .09 2024-T4 Aluminum
LAA-E1-30 30 .6250 .1248 .125 .667 .312 .312 .09 2024-T4 Aluminum
LAA-E1-32 32 .6666 .1248 .125 .709 .312 .312 .09 2024-T4 Aluminum
LAA-E1-36 36 .7500 .1248 .125 .792 .312 .312 .09 2024-T4 Aluminum
LAA-E1-38 38 .7916 .1248 .125 .833 .312 .312 .09 2024-T4 Aluminum
LAA-E1-40 40 .8333 .1248 .125 .875 .312 .312 .09 2024-T4 Aluminum
LAA-E1-44 44 .9166 .1248 .125 .958 .312 .312 .09 2024-T4 Aluminum
LAA-E1-46 46 .9583 .1248 .125 1.000 .312 .312 .09 2024-T4 Aluminum
LAA-E1-48 48 1.0000 .1248 .125 1.042 .312 .312 .09 2024-T4 Aluminum
LAA-E1-50 50 1.0416 .1248 .125 1.083 .312 .312 .09 2024-T4 Aluminum
LAA-E1-55 55 1.1458 .1248 .125 1.187 .312 .312 .09 2024-T4 Aluminum
LAA-E1-56 56 1.1666 .1248 .125 1.208 .312 .312 .09 2024-T4 Aluminum
LAA-E1-60 60 1.2500 .1248 .125 1.292 .312 .312 .09 2024-T4 Aluminum
LAA-E1-64 64 1.3333 .1248 .125 1.375 .312 .312 .09 2024-T4 Aluminum
LAA-E1-70 70 1.4583 .1248 .125 1.500 .312 .312 .09 2024-T4 Aluminum
LAA-E1-72 72 1.5000 .1248 .125 1.542 .312 .312 .09 2024-T4 Aluminum
LAA-E1-75 75 1.5625 .1248 .125 1.604 .312 .312 .09 2024-T4 Aluminum
LAA-E1-80 80 1.6666 .1248 .125 1.708 .312 .312 .09 2024-T4 Aluminum
LAA-E1-96 96 2.0000 .1248 .125 2.042 .312 .312 .09 2024-T4 Aluminum
LAA-E1-100 100 2.0833 .1248 .125 2.125 .312 .312 .09 2024-T4 Aluminum
LAA-E2-22 22 .4583 .1873 .125 .500 .375 .343 .11 2024-T4 Aluminum
LAA-E2-23 23 .4791 .1873 .125 .521 .375 .343 .11 2024-T4 Aluminum
LAA-E2-24 24 .5000 .1873 .125 .542 .375 .343 .11 2024-T4 Aluminum
LAA-E2-27 27 .5625 .1873 .125 .604 .375 .343 .11 2024-T4 Aluminum
LAA-E2-29 29 .6041 .1873 .125 .646 .375 .343 .11 2024-T4 Aluminum
LAA-E2-30 30 .6250 .1873 .125 .667 .375 .343 .11 2024-T4 Aluminum
LAA-E2-36 36 .7500 .1873 .125 .792 .375 .343 .11 2024-T4 Aluminum
LAA-E2-40 40 .8333 .1873 .125 .875 .375 .343 .11 2024-T4 Aluminum
LAA-E2-42 42 .8750 .1873 .125 .917 .375 .343 .11 2024-T4 Aluminum
LAA-E2-44 44 .9166 .1873 .125 .958 .375 .343 .11 2024-T4 Aluminum
LAA-E2-46 46 .9583 .1873 .125 1.000 .375 .343 .11 2024-T4 Aluminum
LAA-E2-48 48 1.0000 .1873 .125 1.042 .375 .343 .11 2024-T4 Aluminum
LAA-E2-50 50 1.0416 .1873 .125 1.083 .375 .343 .11 2024-T4 Aluminum
LAA-E2-55 55 1.1458 .1873 .125 1.188 .375 .343 .11 2024-T4 Aluminum
LAA-E2-56 56 1.1666 .1873 .125 1.208 .375 .343 .11 2024-T4 Aluminum
LAA-E2-60 60 1.2500 .1873 .125 1.292 .375 .343 .11 2024-T4 Aluminum
LAA-E2-65 65 1.3541 .1873 .125 1.396 .375 .343 .11 2024-T4 Aluminum
LAA-E2-70 70 1.4583 .1873 .125 1.500 .375 .343 .11 2024-T4 Aluminum
LAA-E2-72 72 1.5000 .1873 .125 1.542 .375 .343 .11 2024-T4 Aluminum
LAA-E2-84 84 1.7500 .1873 .125 1.792 .375 .343 .11 2024-T4 Aluminum
LAA-E2-90 90 1.8750 .1873 .125 1.917 .375 .343 .11 2024-T4 Aluminum
LAA-E2-96 96 2.0000 .1873 .125 2.042 .375 .343 .11 2024-T4 Aluminum
LAA-E2-100 100 2.0833 .1873 .125 2.125 .375 .343 .11 2024-T4 Aluminum
LAA-E2-110 110 2.2916 .1873 .125 2.333 .375 .343 .11 2024-T4 Aluminum
LAA-E2-120 120 2.5000 .1873 .125 2.542 .375 .343 .11 2024-T4 Aluminum
LAA-E3-24 24 .5000 .2498 .125 .542 .500 .375 .12 2024-T4 Aluminum
LAA-E3-27 27 .5625 .2498 .125 .604 .500 .375 .12 2024-T4 Aluminum
LAA-E3-28 28 .5833 .2498 .125 .625 .500 .375 .12 2024-T4 Aluminum
LAA-E3-30 30 .6250 .2498 .125 .667 .500 .375 .12 2024-T4 Aluminum
LAA-E3-36 36 .7500 .2498 .125 .792 .500 .375 .12 2024-T4 Aluminum
LAA-E3-40 40 .8333 .2498 .125 .875 .500 .375 .12 2024-T4 Aluminum
LAA-E3-42 42 .8750 .2498 .125 .917 .500 .375 .12 2024-T4 Aluminum
LAA-E3-48 48 1.0000 .2498 .125 1.042 .500 .375 .12 2024-T4 Aluminum
LAA-E3-56 56 1.1666 .2498 .125 1.208 .500 .375 .12 2024-T4 Aluminum
LAA-E3-60 60 1.2500 .2498 .125 1.292 .500 .375 .12 2024-T4 Aluminum
LAA-E3-70 70 1.4583 .2498 .125 1.500 .500 .375 .12 2024-T4 Aluminum
LAA-E3-72 72 1.5000 .2498 .125 1.542 .500 .375 .12 2024-T4 Aluminum
LAA-E3-75 75 1.5625 .2498 .125 1.604 .500 .375 .12 2024-T4 Aluminum
LAA-E3-84 84 1.7500 .2498 .125 1.792 .500 .375 .12 2024-T4 Aluminum
LAA-E3-90 90 1.8750 .2498 .125 1.917 .500 .375 .12 2024-T4 Aluminum
LAA-E3-96 96 2.0000 .2498 .125 2.042 .500 .375 .12 2024-T4 Aluminum
LAA-E3-105 105 2.1875 .2498 .125 2.229 .500 .375 .12 2024-T4 Aluminum
LAA-E3-108 108 2.2500 .2498 .125 2.292 .500 .375 .12 2024-T4 Aluminum
LAA-E3-120 120 2.5000 .2498 .125 2.542 .500 .375 .12 2024-T4 Aluminum
LAA-E3-132 132 2.7500 .2498 .125 2.792 .500 .375 .12 2024-T4 Aluminum
LAA-E3-144 144 3.0000 .2498 .125 3.042 .500 .375 .12 2024-T4 Aluminum
LAA-E3-150 150 3.1250 .2498 .125 3.167 .500 .375 .12 2024-T4 Aluminum
LAA-E3-168 168 3.5000 .2498 .125 3.542 .500 .375 .12 2024-T4 Aluminum
LAA-E3-180 180 3.7500 .2498 .125 3.792 .500 .375 .12 2024-T4 Aluminum
LAA-E3-192 192 4.0000 .2498 .125 4.042 .500 .375 .12 2024-T4 Aluminum
LAA-E4-20 20 .4167 .1873 .187 .458 .375 .406 .11 2024-T4 Aluminum
LAA-E4-22 22 .4583 .1873 .187 .500 .375 .406 .11 2024-T4 Aluminum
LAA-E4-23 23 .4791 .1873 .187 .521 .375 .406 .11 2024-T4 Aluminum
LAA-E4-25 25 .5208 .1873 .187 .562 .375 .406 .11 2024-T4 Aluminum
LAA-E4-30 30 .6250 .1873 .187 .667 .375 .406 .11 2024-T4 Aluminum
LAA-E4-40 40 .8333 .1873 .187 .875 .375 .406 .11 2024-T4 Aluminum
LAA-E4-44 44 .9166 .1873 .187 .958 .375 .406 .11 2024-T4 Aluminum
LAA-E4-46 46 .9583 .1873 .187 1.000 .375 .406 .11 2024-T4 Aluminum
LAA-E4-50 50 1.0416 .1873 .187 1.083 .375 .406 .11 2024-T4 Aluminum
LAA-E4-55 55 1.1458 .1873 .187 1.187 .375 .406 .11 2024-T4 Aluminum
LAA-E4-60 60 1.2500 .1873 .187 1.292 .375 .406 .11 2024-T4 Aluminum
LAA-E4-65 65 1.3541 .1873 .187 1.396 .375 .406 .11 2024-T4 Aluminum
LAA-E4-70 70 1.4583 .1873 .187 1.500 .375 .406 .11 2024-T4 Aluminum
LAA-E4-80 80 1.6666 .1873 .187 1.708 .375 .406 .11 2024-T4 Aluminum
LAA-E4-85 85 1.7708 .1873 .187 1.812 .375 .406 .11 2024-T4 Aluminum
LAA-E4-90 90 1.8750 .1873 .187 1.917 .375 .406 .11 2024-T4 Aluminum
LAA-E4-95 95 1.9791 .1873 .187 2.021 .375 .406 .11 2024-T4 Aluminum
LAA-E4-100 100 2.0833 .1873 .187 2.125 .375 .406 .11 2024-T4 Aluminum
LAA-E4-105 105 2.1875 .1873 .187 2.229 .375 .406 .11 2024-T4 Aluminum
LAA-E4-110 110 2.2916 .1873 .187 2.333 .375 .406 .11 2024-T4 Aluminum
LAA-E4-115 115 2.3958 .1873 .187 2.437 .375 .406 .11 2024-T4 Aluminum
LAA-E4-120 120 2.5000 .1873 .187 2.542 .375 .406 .11 2024-T4 Aluminum
LAA-E4-132 132 2.7500 .1873 .187 2.792 .375 .406 .11 2024-T4 Aluminum
LAA-E4-150 150 3.1250 .1873 .187 3.167 .375 .406 .11 2024-T4 Aluminum
LAA-E4-180 180 3.7500 .1873 .187 3.792 .375 .406 .11 2024-T4 Aluminum
LAA-E5-24 24 .5000 .2498 .187 .542 .500 .437 .12 2024-T4 Aluminum
LAA-E5-25 25 .5208 .2498 .187 .563 .500 .437 .12 2024-T4 Aluminum
LAA-E5-26 26 .5416 .2498 .187 .583 .500 .437 .12 2024-T4 Aluminum
LAA-E5-27 27 .5625 .2498 .187 .604 .500 .437 .12 2024-T4 Aluminum
LAA-E5-28 28 .5833 .2498 .187 .625 .500 .437 .12 2024-T4 Aluminum
LAA-E5-29 29 .6041 .2498 .187 .646 .500 .437 .12 2024-T4 Aluminum
LAA-E5-30 30 .6250 .2498 .187 .667 .500 .437 .12 2024-T4 Aluminum
LAA-E5-32 32 .6666 .2498 .187 .708 .500 .437 .12 2024-T4 Aluminum
LAA-E5-34 34 .7083 .2498 .187 .750 .500 .437 .12 2024-T4 Aluminum
LAA-E5-36 36 .7500 .2498 .187 .792 .500 .437 .12 2024-T4 Aluminum
LAA-E5-38 38 .7916 .2498 .187 .833 .500 .437 .12 2024-T4 Aluminum
LAA-E5-40 40 .8333 .2498 .187 .875 .500 .437 .12 2024-T4 Aluminum
LAA-E5-42 42 .8750 .2498 .187 .917 .500 .437 .12 2024-T4 Aluminum
LAA-E5-44 44 .9166 .2498 .187 .958 .500 .437 .12 2024-T4 Aluminum
LAA-E5-46 46 .9583 .2498 .187 1.000 .500 .437 .12 2024-T4 Aluminum
LAA-E5-48 48 1.0000 .2498 .187 1.042 .500 .437 .12 2024-T4 Aluminum
LAA-E5-50 50 1.0416 .2498 .187 1.083 .500 .437 .12 2024-T4 Aluminum
LAA-E5-55 55 1.1458 .2498 .187 1.188 .500 .437 .12 2024-T4 Aluminum
LAA-E5-56 56 1.1666 .2498 .187 1.208 .500 .437 .12 2024-T4 Aluminum
LAA-E5-60 60 1.2500 .2498 .187 1.292 .500 .437 .12 2024-T4 Aluminum
LAA-E5-64 64 1.3333 .2498 .187 1.375 .500 .437 .12 2024-T4 Aluminum
LAA-E5-65 65 1.3541 .2498 .187 1.396 .500 .437 .12 2024-T4 Aluminum
LAA-E5-70 70 1.4583 .2498 .187 1.500 .500 .437 .12 2024-T4 Aluminum
LAA-E5-72 72 1.5000 .2498 .187 1.542 .500 .437 .12 2024-T4 Aluminum
LAA-E5-75 75 1.5625 .2498 .187 1.604 .500 .437 .12 2024-T4 Aluminum
LAA-E5-80 80 1.6666 .2498 .187 1.708 .500 .437 .12 2024-T4 Aluminum
LAA-E5-84 84 1.7500 .2498 .187 1.792 .500 .437 .12 2024-T4 Aluminum
LAA-E5-85 85 1.7708 .2498 .187 1.813 .500 .437 .12 2024-T4 Aluminum
LAA-E5-90 90 1.8750 .2498 .187 1.917 .500 .437 .12 2024-T4 Aluminum
LAA-E5-92 92 1.9166 .2498 .187 1.958 .500 .437 .12 2024-T4 Aluminum
LAA-E5-95 95 1.9791 .2498 .187 2.021 .500 .437 .12 2024-T4 Aluminum
LAA-E5-96 96 2.0000 .2498 .187 2.042 .500 .437 .12 2024-T4 Aluminum
LAA-E5-100 100 2.0833 .2498 .187 2.125 .500 .437 .12 2024-T4 Aluminum
LAA-E5-102 102 2.1250 .2498 .187 2.167 .500 .437 .12 2024-T4 Aluminum
LAA-E5-105 105 2.1875 .2498 .187 2.229 .500 .437 .12 2024-T4 Aluminum
LAA-E5-108 108 2.2500 .2498 .187 2.292 .500 .437 .12 2024-T4 Aluminum
LAA-E5-110 110 2.2916 .2498 .187 2.333 .500 .437 .12 2024-T4 Aluminum
LAA-E5-115 115 2.3958 .2498 .187 2.438 .500 .437 .12 2024-T4 Aluminum
LAA-E5-120 120 2.5000 .2498 .187 2.542 .500 .437 .12 2024-T4 Aluminum
LAA-E5-126 126 2.6250 .2498 .187 2.667 .500 .437 .12 2024-T4 Aluminum
LAA-E5-127 127 2.6458 .2498 .187 2.688 .500 .437 .12 2024-T4 Aluminum
LAA-E5-132 132 2.7500 .2498 .187 2.792 .500 .437 .12 2024-T4 Aluminum
LAA-E5-138 138 2.8750 .2498 .187 2.917 .500 .437 .12 2024-T4 Aluminum
LAA-E5-144 144 3.0000 .2498 .187 3.042 .500 .437 .12 2024-T4 Aluminum
LAA-E5-150 150 3.1250 .2498 .187 3.167 .500 .437 .12 2024-T4 Aluminum
LAA-E5-156 156 3.2500 .2498 .187 3.292 .500 .437 .12 2024-T4 Aluminum
LAA-E5-162 162 3.3750 .2498 .187 3.417 .500 .437 .12 2024-T4 Aluminum
LAA-E5-168 168 3.5000 .2498 .187 3.542 .500 .437 .12 2024-T4 Aluminum
LAA-E5-174 174 3.6250 .2498 .187 3.667 .500 .437 .12 2024-T4 Aluminum
LAA-E5-180 180 3.7500 .2498 .187 3.792 .500 .437 .12 2024-T4 Aluminum
LAA-E5-186 186 3.8750 .2498 .187 3.917 .500 .437 .12 2024-T4 Aluminum
LAA-E5-192 192 4.0000 .2498 .187 4.042 .500 .437 .12 2024-T4 Aluminum
LAA-E5-198 198 4.1250 .2498 .187 4.167 .500 .437 .12 2024-T4 Aluminum
LAS-E1-18 18 .3750 .1248 .125 .417 .312 .312 .09 303 Stainless Steel
LAS-E1-19 19 .3958 .1248 .125 .438 .312 .312 .09 303 Stainless Steel
LAS-E1-20 20 .4167 .1248 .125 .458 .312 .312 .09 303 Stainless Steel
LAS-E1-22 22 .4583 .1248 .125 .500 .312 .312 .09 303 Stainless Steel
LAS-E1-25 25 .5208 .1248 .125 .563 .312 .312 .09 303 Stainless Steel
LAS-E1-28 28 .5833 .1248 .125 .625 .312 .312 .09 303 Stainless Steel
LAS-E1-30 30 .6250 .1248 .125 .667 .312 .312 .09 303 Stainless Steel
LAS-E1-32 32 .6666 .1248 .125 .709 .312 .312 .09 303 Stainless Steel
LAS-E1-36 36 .7500 .1248 .125 .792 .312 .312 .09 303 Stainless Steel
LAS-E1-38 38 .7916 .1248 .125 .833 .312 .312 .09 303 Stainless Steel
LAS-E1-40 40 .8333 .1248 .125 .875 .312 .312 .09 303 Stainless Steel
LAS-E1-44 44 .9166 .1248 .125 .958 .312 .312 .09 303 Stainless Steel
LAS-E1-46 46 .9583 .1248 .125 1.000 .312 .312 .09 303 Stainless Steel
LAS-E1-48 48 1.0000 .1248 .125 1.042 .312 .312 .09 303 Stainless Steel
LAS-E1-50 50 1.0416 .1248 .125 1.083 .312 .312 .09 303 Stainless Steel
LAS-E1-56 56 1.1666 .1248 .125 1.208 .312 .312 .09 303 Stainless Steel
LAS-E1-60 60 1.2500 .1248 .125 1.292 .312 .312 .09 303 Stainless Steel
LAS-E1-64 64 1.3333 .1248 .125 1.375 .312 .312 .09 303 Stainless Steel
LAS-E1-70 70 1.4583 .1248 .125 1.500 .312 .312 .09 303 Stainless Steel
LAS-E1-72 72 1.5000 .1248 .125 1.542 .312 .312 .09 303 Stainless Steel
LAS-E1-75 75 1.5625 .1248 .125 1.604 .312 .312 .09 303 Stainless Steel
LAS-E1-80 80 1.6666 .1248 .125 1.708 .312 .312 .09 303 Stainless Steel
LAS-E1-96 96 2.0000 .1248 .125 2.042 .312 .312 .09 303 Stainless Steel
LAS-E1-100 100 2.0833 .1248 .125 2.125 .312 .312 .09 303 Stainless Steel
LAS-E2-22 22 .4583 .1873 .125 .500 .375 .343 .11 303 Stainless Steel
LAS-E2-23 23 .4791 .1873 .125 .521 .375 .343 .11 303 Stainless Steel
LAS-E2-24 24 .5000 .1873 .125 .542 .375 .343 .11 303 Stainless Steel
LAS-E2-27 27 .5625 .1873 .125 .604 .375 .343 .11 303 Stainless Steel
LAS-E2-29 29 .6041 .1873 .125 .646 .375 .343 .11 303 Stainless Steel
LAS-E2-30 30 .6250 .1873 .125 .667 .375 .343 .11 303 Stainless Steel
LAS-E2-36 36 .7500 .1873 .125 .792 .375 .343 .11 303 Stainless Steel
LAS-E2-40 40 .8333 .1873 .125 .875 .375 .343 .11 303 Stainless Steel
LAS-E2-42 42 .8750 .1873 .125 .917 .375 .343 .11 303 Stainless Steel
LAS-E2-44 44 .9166 .1873 .125 .958 .375 .343 .11 303 Stainless Steel
LAS-E2-46 46 .9583 .1873 .125 1.000 .375 .343 .11 303 Stainless Steel
LAS-E2-48 48 1.0000 .1873 .125 1.042 .375 .343 .11 303 Stainless Steel
LAS-E2-50 50 1.0416 .1873 .125 1.083 .375 .343 .11 303 Stainless Steel
LAS-E2-56 56 1.1666 .1873 .125 1.208 .375 .343 .11 303 Stainless Steel
LAS-E2-60 60 1.2500 .1873 .125 1.292 .375 .343 .11 303 Stainless Steel
LAS-E2-65 65 1.3541 .1873 .125 1.396 .375 .343 .11 303 Stainless Steel
LAS-E2-70 70 1.4583 .1873 .125 1.500 .375 .343 .11 303 Stainless Steel
LAS-E2-72 72 1.5000 .1873 .125 1.542 .375 .343 .11 303 Stainless Steel
LAS-E2-84 84 1.7500 .1873 .125 1.792 .375 .343 .11 303 Stainless Steel
LAS-E2-90 90 1.8750 .1873 .125 1.917 .375 .343 .11 303 Stainless Steel
LAS-E2-96 96 2.0000 .1873 .125 2.042 .375 .343 .11 303 Stainless Steel
LAS-E2-100 100 2.0833 .1873 .125 2.125 .375 .343 .11 303 Stainless Steel
LAS-E2-110 110 2.2916 .1873 .125 2.333 .375 .343 .11 303 Stainless Steel
LAS-E2-120 120 2.5000 .1873 .125 2.542 .375 .343 .11 303 Stainless Steel
LAS-E3-24 24 .5000 .2498 .125 .542 .500 .375 .12 303 Stainless Steel
LAS-E3-27 27 .5625 .2498 .125 .604 .500 .375 .12 303 Stainless Steel
LAS-E3-28 28 .5833 .2498 .125 .625 .500 .375 .12 303 Stainless Steel
LAS-E3-30 30 .6250 .2498 .125 .667 .500 .375 .12 303 Stainless Steel
LAS-E3-36 36 .7500 .2498 .125 .792 .500 .375 .12 303 Stainless Steel
LAS-E3-40 40 .8333 .2498 .125 .875 .500 .375 .12 303 Stainless Steel
LAS-E3-42 42 .8750 .2498 .125 .917 .500 .375 .12 303 Stainless Steel
LAS-E3-48 48 1.0000 .2498 .125 1.042 .500 .375 .12 303 Stainless Steel
LAS-E3-56 56 1.1666 .2498 .125 1.208 .500 .375 .12 303 Stainless Steel
LAS-E3-60 60 1.2500 .2498 .125 1.292 .500 .375 .12 303 Stainless Steel
LAS-E3-70 70 1.4583 .2498 .125 1.500 .500 .375 .12 303 Stainless Steel
LAS-E3-72 72 1.5000 .2498 .125 1.542 .500 .375 .12 303 Stainless Steel
LAS-E3-75 75 1.5625 .2498 .125 1.604 .500 .375 .12 303 Stainless Steel
LAS-E3-84 84 1.7500 .2498 .125 1.792 .500 .375 .12 303 Stainless Steel
LAS-E3-90 90 1.8750 .2498 .125 1.917 .500 .375 .12 303 Stainless Steel
LAS-E3-96 96 2.0000 .2498 .125 2.042 .500 .375 .12 303 Stainless Steel
LAS-E3-105 105 2.1875 .2498 .125 2.229 .500 .375 .12 303 Stainless Steel
LAS-E3-108 108 2.2500 .2498 .125 2.292 .500 .375 .12 303 Stainless Steel
LAS-E3-120 120 2.5000 .2498 .125 2.542 .500 .375 .12 303 Stainless Steel
LAS-E3-132 132 2.7500 .2498 .125 2.792 .500 .375 .12 303 Stainless Steel
LAS-E3-144 144 3.0000 .2498 .125 3.042 .500 .375 .12 303 Stainless Steel
LAS-E3-150 150 3.1250 .2498 .125 3.167 .500 .375 .12 303 Stainless Steel
LAS-E3-168 168 3.5000 .2498 .125 3.542 .500 .375 .12 303 Stainless Steel
LAS-E3-180 180 3.7500 .2498 .125 3.792 .500 .375 .12 303 Stainless Steel
LAS-E3-192 192 4.0000 .2498 .125 4.042 .500 .375 .12 303 Stainless Steel
LAS-E4-20 20 .4167 .1873 .187 .458 .375 .406 .11 303 Stainless Steel
LAS-E4-22 22 .4583 .1873 .187 .500 .375 .406 .11 303 Stainless Steel
LAS-E4-23 23 .4791 .1873 .187 .521 .375 .406 .11 303 Stainless Steel
LAS-E4-25 25 .5208 .1873 .187 .562 .375 .406 .11 303 Stainless Steel
LAS-E4-28 28 .5830 .1873 .187 .625 .375 .406 .11 303 Stainless Steel
LAS-E4-30 30 .6250 .1873 .187 .667 .375 .406 .11 303 Stainless Steel
LAS-E4-40 40 .8333 .1873 .187 .875 .375 .406 .11 303 Stainless Steel
LAS-E4-44 44 .9166 .1873 .187 .958 .375 .406 .11 303 Stainless Steel
LAS-E4-46 46 .9583 .1873 .187 1.000 .375 .406 .11 303 Stainless Steel
LAS-E4-50 50 1.0416 .1873 .187 1.083 .375 .406 .11 303 Stainless Steel
LAS-E4-55 55 1.1458 .1873 .187 1.187 .375 .406 .11 303 Stainless Steel
LAS-E4-60 60 1.2500 .1873 .187 1.292 .375 .406 .11 303 Stainless Steel
LAS-E4-65 65 1.3541 .1873 .187 1.396 .375 .406 .11 303 Stainless Steel
LAS-E4-70 70 1.4583 .1873 .187 1.500 .375 .406 .11 303 Stainless Steel
LAS-E4-80 80 1.6666 .1873 .187 1.708 .375 .406 .11 303 Stainless Steel
LAS-E4-85 85 1.7708 .1873 .187 1.812 .375 .406 .11 303 Stainless Steel
LAS-E4-90 90 1.8750 .1873 .187 1.917 .375 .406 .11 303 Stainless Steel
LAS-E4-95 95 1.9791 .1873 .187 2.021 .375 .406 .11 303 Stainless Steel
LAS-E4-100 100 2.0833 .1873 .187 2.125 .375 .406 .11 303 Stainless Steel
LAS-E4-105 105 2.1875 .1873 .187 2.229 .375 .406 .11 303 Stainless Steel
LAS-E4-110 110 2.2916 .1873 .187 2.333 .375 .406 .11 303 Stainless Steel
LAS-E4-115 115 2.3958 .1873 .187 2.437 .375 .406 .11 303 Stainless Steel
LAS-E4-120 120 2.5000 .1873 .187 2.542 .375 .406 .11 303 Stainless Steel
LAS-E4-132 132 2.7500 .1873 .187 2.792 .375 .406 .11 303 Stainless Steel
LAS-E4-150 150 3.1250 .1873 .187 3.167 .375 .406 .11 303 Stainless Steel
LAS-E4-180 180 3.7500 .1873 .187 3.792 .375 .406 .11 303 Stainless Steel
LAS-E5-18 18 .3750 .2498 .187 .417 .500 .437 .12 303 Stainless Steel
LAS-E5-20 20 .4167 .2498 .187 .458 .500 .437 .12 303 STAINLESS STEEL
LAS-E5-22 22 .4583 .2498 .187 .500 .500 .437 .12 303 Stainless Steel
LAS-E5-24 24 .5000 .2498 .187 .542 .500 .437 .12 303 Stainless Steel
LAS-E5-25 25 .5208 .2498 .187 .563 .500 .437 .12 303 Stainless Steel
LAS-E5-26 26 .5416 .2498 .187 .583 .500 .437 .12 303 Stainless Steel
LAS-E5-27 27 .5625 .2498 .187 .604 .500 .437 .12 303 Stainless Steel
LAS-E5-28 28 .5833 .2498 .187 .625 .500 .437 .12 303 Stainless Steel
LAS-E5-29 29 .6041 .2498 .187 .646 .500 .437 .12 303 Stainless Steel
LAS-E5-30 30 .6250 .2498 .187 .667 .500 .437 .12 303 Stainless Steel
LAS-E5-32 32 .6666 .2498 .187 .708 .500 .437 .12 303 Stainless Steel
LAS-E5-34 34 .7083 .2498 .187 .750 .500 .437 .12 303 Stainless Steel
LAS-E5-36 36 .7500 .2498 .187 .792 .500 .437 .12 303 Stainless Steel
LAS-E5-38 38 .7916 .2498 .187 .833 .500 .437 .12 303 Stainless Steel
LAS-E5-40 40 .8333 .2498 .187 .875 .500 .437 .12 303 Stainless Steel
LAS-E5-42 42 .8750 .2498 .187 .917 .500 .437 .12 303 Stainless Steel
LAS-E5-44 44 .9166 .2498 .187 .958 .500 .437 .12 303 Stainless Steel
LAS-E5-46 46 .9583 .2498 .187 1.000 .500 .437 .12 303 Stainless Steel
LAS-E5-48 48 1.0000 .2498 .187 1.042 .500 .437 .12 303 Stainless Steel
LAS-E5-50 50 1.0416 .2498 .187 1.083 .500 .437 .12 303 Stainless Steel
LAS-E5-55 55 1.1458 .2498 .187 1.188 .500 .437 .12 303 Stainless Steel
LAS-E5-56 56 1.1666 .2498 .187 1.208 .500 .437 .12 303 Stainless Steel
LAS-E5-60 60 1.2500 .2498 .187 1.292 .500 .437 .12 303 Stainless Steel
LAS-E5-64 64 1.3333 .2498 .187 1.375 .500 .437 .12 303 Stainless Steel
LAS-E5-65 65 1.3541 .2498 .187 1.396 .500 .437 .12 303 Stainless Steel
LAS-E5-70 70 1.4583 .2498 .187 1.500 .500 .437 .12 303 Stainless Steel
LAS-E5-72 72 1.5000 .2498 .187 1.542 .500 .437 .12 303 Stainless Steel
LAS-E5-75 75 1.5625 .2498 .187 1.604 .500 .437 .12 303 Stainless Steel
LAS-E5-80 80 1.6666 .2498 .187 1.708 .500 .437 .12 303 Stainless Steel
LAS-E5-84 84 1.7500 .2498 .187 1.792 .500 .437 .12 303 Stainless Steel
LAS-E5-85 85 1.7708 .2498 .187 1.813 .500 .437 .12 303 Stainless Steel
LAS-E5-90 90 1.8750 .2498 .187 1.917 .500 .437 .12 303 Stainless Steel
LAS-E5-92 92 1.9166 .2498 .187 1.958 .500 .437 .12 303 Stainless Steel
LAS-E5-95 95 1.9791 .2498 .187 2.021 .500 .437 .12 303 Stainless Steel
LAS-E5-96 96 2.0000 .2498 .187 2.042 .500 .437 .12 303 Stainless Steel
LAS-E5-100 100 2.0833 .2498 .187 2.125 .500 .437 .12 303 Stainless Steel
LAS-E5-102 102 2.1250 .2498 .187 2.167 .500 .437 .12 303 Stainless Steel
LAS-E5-105 105 2.1875 .2498 .187 2.229 .500 .437 .12 303 Stainless Steel
LAS-E5-108 108 2.2500 .2498 .187 2.292 .500 .437 .12 303 Stainless Steel
LAS-E5-110 110 2.2916 .2498 .187 2.333 .500 .437 .12 303 Stainless Steel
LAS-E5-115 115 2.3958 .2498 .187 2.438 .500 .437 .12 303 Stainless Steel
LAS-E5-120 120 2.5000 .2498 .187 2.542 .500 .437 .12 303 Stainless Steel
LAS-E5-126 126 2.6250 .2498 .187 2.667 .500 .437 .12 303 Stainless Steel
LAS-E5-127 127 2.6458 .2498 .187 2.688 .500 .437 .12 303 Stainless Steel
LAS-E5-132 132 2.7500 .2498 .187 2.792 .500 .437 .12 303 Stainless Steel
LAS-E5-138 138 2.8750 .2498 .187 2.917 .500 .437 .12 303 Stainless Steel
LAS-E5-144 144 3.0000 .2498 .187 3.042 .500 .437 .12 303 Stainless Steel
LAS-E5-150 150 3.1250 .2498 .187 3.167 .500 .437 .12 303 Stainless Steel
LAS-E5-156 156 3.2500 .2498 .187 3.292 .500 .437 .12 303 Stainless Steel
LAS-E5-162 162 3.3750 .2498 .187 3.417 .500 .437 .12 303 Stainless Steel
LAS-E5-168 168 3.5000 .2498 .187 3.542 .500 .437 .12 303 Stainless Steel
LAS-E5-174 174 3.6250 .2498 .187 3.667 .500 .437 .12 303 Stainless Steel
LAS-E5-180 180 3.7500 .2498 .187 3.792 .500 .437 .12 303 Stainless Steel
LAS-E5-186 186 3.8750 .2498 .187 3.917 .500 .437 .12 303 Stainless Steel
LAS-E5-192 192 4.0000 .2498 .187 4.042 .500 .437 .12 303 Stainless Steel
LAS-E5-198 198 4.1250 .2498 .187 4.167 .500 .437 .12 303 Stainless Steel
