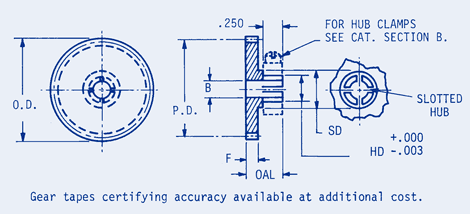

Spur Gear-Split Hub 32 Pitch,1/8 Face & 3/16 Face	T = Number of Teeth PD = Pitch Diameter B = Bore F = Face Width OD = Outside Diameter HD = Hub Diameter OAL = Overall Length M= Material SD = Step Diameter
20 degree pressure angle, Quality AGMA 10. Aluminum gears are anodized before gear cutting.

T = Number of Teeth
PD = Pitch Diameter
B = Bore
F = Face Width
OD = Outside Diameter
HD = Hub Diameter
OAL = Overall Length
M= Material
SD = Step Diameter

Part		Number of Teeth	Pitch Diameter	Bore	Face Width	Outside Diameter	Hub Diameter	Overall Length	Material	Step Diameter
Buy	View
	LBA-D1-14	14	.4375	.1248	.125	.500	.188	.406	2024-T4 Aluminum	1/4
	LBA-D1-15	15	.4688	.1248	.125	.531	.188	.406	2024-T4 Aluminum	1/4
	LBA-D1-16	16	.5000	.1248	.125	.563	.188	.406	2024-T4 Aluminum	1/4
	LBA-D1-17	17	.5313	.1248	.125	.594	.188	.406	2024-T4 Aluminum	1/4
	LBA-D1-18	18	.5625	.1248	.125	.625	.188	.406	2024-T4 Aluminum	1/4
	LBA-D1-19	19	.5938	.1248	.125	.656	.188	.406	2024-T4 Aluminum	1/4
	LBA-D1-20	20	.6250	.1248	.125	.688	.188	.406	2024-T4 Aluminum	1/4
	LBA-D1-22	22	.6875	.1248	.125	.750	.188	.406	2024-T4 Aluminum	1/4
	LBA-D1-24	24	.7500	.1248	.125	.813	.188	.406	2024-T4 Aluminum	1/4
	LBA-D1-26	26	.8125	.1248	.125	.875	.188	.406	2024-T4 Aluminum	1/4
	LBA-D1-28	28	.8750	.1248	.125	.938	.188	.406	2024-T4 Aluminum	1/4
	LBA-D1-30	30	.9375	.1248	.125	1.000	.188	.406	2024-T4 Aluminum	1/4
	LBA-D1-32	32	1.0000	.1248	.125	1.063	.188	.406	2024-T4 Aluminum	1/4
	LBA-D1-36	36	1.1250	.1248	.125	1.188	.188	.406	2024-T4 Aluminum	1/4
	LBA-D1-40	40	1.2500	.1248	.125	1.313	.188	.406	2024-T4 Aluminum	1/4
	LBA-D1-48	48	1.5000	.1248	.125	1.563	.188	.406	2024-T4 Aluminum	1/4
	LBA-D1-56	56	1.7500	.1248	.125	1.813	.188	.406	2024-T4 Aluminum	1/4
	LBA-D2-14	14	.4375	.2498	.125	.500	.312	.406	2024-T4 Aluminum	3/8
	LBA-D2-15	15	.4688	.2498	.125	.531	.312	.406	2024-T4 Aluminum	3/8
	LBA-D2-16	16	.5000	.2498	.125	.563	.312	.406	2024-T4 Aluminum	3/8
	LBA-D2-17	17	.5313	.2498	.125	.594	.312	.406	2024-T4 Aluminum	3/8
	LBA-D2-18	18	.5625	.2498	.125	.625	.312	.406	2024-T4 Aluminum	3/8
	LBA-D2-19	19	.5938	.2498	.125	.656	.312	.406	2024-T4 Aluminum	3/8
	LBA-D2-20	20	.6250	.2498	.125	.688	.312	.406	2024-T4 Aluminum	3/8
	LBA-D2-22	22	.6875	.2498	.125	.750	.312	.406	2024-T4 Aluminum	3/8
	LBA-D2-24	24	.7500	.2498	.125	.813	.312	.406	2024-T4 Aluminum	3/8
	LBA-D2-26	26	.8125	.2498	.125	.875	.312	.406	2024-T4 Aluminum	3/8
	LBA-D2-28	28	.8750	.2498	.125	.938	.312	.406	2024-T4 Aluminum	3/8
	LBA-D2-30	30	.9375	.2498	.125	1.000	.312	.406	2024-T4 Aluminum	3/8
	LBA-D2-32	32	1.0000	.2498	.125	1.063	.312	.406	2024-T4 Aluminum	3/8
	LBA-D2-36	36	1.1250	.2498	.125	1.188	.312	.406	2024-T4 Aluminum	3/8
	LBA-D2-40	40	1.2500	.2498	.125	1.313	.312	.406	2024-T4 Aluminum	3/8
	LBA-D2-48	48	1.5000	.2498	.125	1.563	.312	.406	2024-T4 Aluminum	3/8
	LBA-D2-56	56	1.7500	.2498	.125	1.813	.312	.406	2024-T4 Aluminum	3/8
	LBA-D2-64	64	2.0000	.2498	.125	2.063	.312	.406	2024-T4 Aluminum	3/8
	LBA-D2-72	72	2.2500	.2498	.125	2.313	.312	.406	2024-T4 Aluminum	3/8
	LBA-D2-80	80	2.5000	.2498	.125	2.563	.312	.406	2024-T4 Aluminum	3/8
	LBA-D2-88	88	2.7500	.2498	.125	2.813	.312	.406	2024-T4 Aluminum	3/8
	LBA-D2-96	96	3.0000	.2498	.125	3.063	.312	.406	2024-T4 Aluminum	3/8
	LBA-D2-112	112	3.5000	.2498	.125	3.563	.312	.406	2024-T4 Aluminum	3/8
	LBA-D2-127	127	3.9688	.2498	.125	4.031	.312	.406	2024-T4 Aluminum	3/8
	LBA-D2-128	128	4.0000	.2498	.125	4.063	.312	.406	2024-T4 Aluminum	3/8
	LBA-D2-132	132	4.1250	.2498	.125	4.188	.312	.406	2024-T4 Aluminum	3/8
	LBA-D3-20	20	.6250	.2498	.187	.688	.312	.500	2024-T4 Aluminum	.406
	LBA-D3-21	21	.6563	.2498	.187	.719	.312	.500	2024-T4 Aluminum	.406
	LBA-D3-22	22	.6875	.2498	.187	.750	.312	.500	2024-T4 Aluminum	.406
	LBA-D3-23	23	.7188	.2498	.187	.781	.312	.500	2024-T4 Aluminum	.406
	LBA-D3-24	24	.7500	.2498	.187	.813	.312	.500	2024-T4 Aluminum	.406
	LBA-D3-25	25	.7813	.2498	.187	.844	.312	.500	2024-T4 Aluminum	.406
	LBA-D3-26	26	.8125	.2498	.187	.875	.312	.500	2024-T4 Aluminum	.406
	LBA-D3-28	28	.8750	.2498	.187	.938	.312	.500	2024-T4 Aluminum	.406
	LBA-D3-30	30	.9375	.2498	.187	1.000	.312	.500	2024-T4 Aluminum	.406
	LBA-D3-32	32	1.0000	.2498	.187	1.063	.312	.500	2024-T4 Aluminum	.406
	LBA-D3-34	34	1.0625	.2498	.187	1.125	.312	.500	2024-T4 Aluminum	.406
	LBA-D3-36	36	1.1250	.2498	.187	1.188	.312	.500	2024-T4 Aluminum	.406
	LBA-D3-38	38	1.1875	.2498	.187	1.250	.312	.500	2024-T4 Aluminum	.406
	LBA-D3-40	40	1.2500	.2498	.187	1.313	.312	.500	2024-T4 Aluminum	.406
	LBA-D3-44	44	1.3750	.2498	.187	1.438	.312	.500	2024-T4 Aluminum	.406
	LBA-D3-48	48	1.5000	.2498	.187	1.563	.312	.500	2024-T4 Aluminum	.406
	LBA-D3-52	52	1.6250	.2498	.187	1.688	.312	.500	2024-T4 Aluminum	.406
	LBA-D3-56	56	1.7500	.2498	.187	1.813	.312	.500	2024-T4 Aluminum	.406
	LBA-D3-60	60	1.8750	.2498	.187	1.938	.312	.500	2024-T4 Aluminum	.406
	LBA-D3-64	64	2.0000	.2498	.187	2.063	.312	.500	2024-T4 Aluminum	.406
	LBA-D3-68	68	2.1250	.2498	.187	2.188	.312	.500	2024-T4 Aluminum	.406
	LBA-D3-72	72	2.2500	.2498	.187	2.313	.312	.500	2024-T4 Aluminum	.406
	LBA-D3-76	76	2.3750	.2498	.187	2.438	.312	.500	2024-T4 Aluminum	.406
	LBA-D3-80	80	2.5000	.2498	.187	2.563	.312	.500	2024-T4 Aluminum	.406
	LBA-D3-90	90	2.8125	.2498	.187	2.875	.312	.500	2024-T4 Aluminum	.406
	LBA-D3-96	96	3.0000	.2498	.187	3.063	.312	.500	2024-T4 Aluminum	.406
	LBA-D3-112	112	3.5000	.2498	.187	3.563	.312	.500	2024-T4 Aluminum	.406
	LBA-D3-120	120	3.7500	.2498	.187	3.813	.312	.500	2024-T4 Aluminum	.406
	LBA-D3-128	128	4.0000	.2498	.187	4.063	.312	.500	2024-T4 Aluminum	.406
	LBA-D3-132	132	4.1250	.2498	.187	4.188	.312	.500	2024-T4 Aluminum	.406
	LBS-D1-14	14	.4375	.1248	.125	.500	.188	.406	303 Stainless Steel	1/4
	LBS-D1-15	15	.4688	.1248	.125	.531	.188	.406	303 Stainless Steel	1/4
	LBS-D1-16	16	.5000	.1248	.125	.563	.188	.406	303 Stainless Steel	1/4
	LBS-D1-17	17	.5313	.1248	.125	.594	.188	.406	303 Stainless Steel	1/4
	LBS-D1-18	18	.5625	.1248	.125	.625	.188	.406	303 Stainless Steel	1/4
	LBS-D1-19	19	.5938	.1248	.125	.656	.188	.406	303 Stainless Steel	1/4
	LBS-D1-20	20	.6250	.1248	.125	.688	.188	.406	303 Stainless Steel	1/4
	LBS-D1-22	22	.6875	.1248	.125	.750	.188	.406	303 Stainless Steel	1/4
	LBS-D1-24	24	.7500	.1248	.125	.813	.188	.406	303 Stainless Steel	1/4
	LBS-D1-26	26	.8125	.1248	.125	.875	.188	.406	303 Stainless Steel	1/4
	LBS-D1-28	28	.8750	.1248	.125	.938	.188	.406	303 Stainless Steel	1/4
	LBS-D1-30	30	.9375	.1248	.125	1.000	.188	.406	303 Stainless Steel	1/4
	LBS-D1-32	32	1.0000	.1248	.125	1.063	.188	.406	303 Stainless Steel	1/4
	LBS-D1-36	36	1.1250	.1248	.125	1.188	.188	.406	303 Stainless Steel	1/4
	LBS-D1-40	40	1.2500	.1248	.125	1.313	.188	.406	303 Stainless Steel	1/4
	LBS-D1-48	48	1.5000	.1248	.125	1.563	.188	.406	303 Stainless Steel	1/4
	LBS-D1-56	56	1.7500	.1248	.125	1.813	.188	.406	303 Stainless Steel	1/4
	LBS-D2-14	14	.4375	.2498	.125	.500	.312	.406	303 Stainless Steel	3/8
	LBS-D2-15	15	.4688	.2498	.125	.531	.312	.406	303 Stainless Steel	3/8
	LBS-D2-16	16	.5000	.2498	.125	.563	.312	.406	303 Stainless Steel	3/8
	LBS-D2-17	17	.5313	.2498	.125	.594	.312	.406	303 Stainless Steel	3/8
	LBS-D2-18	18	.5625	.2498	.125	.625	.312	.406	303 Stainless Steel	3/8
	LBS-D2-19	19	.5938	.2498	.125	.656	.312	.406	303 Stainless Steel	3/8
	LBS-D2-20	20	.6250	.2498	.125	.688	.312	.406	303 Stainless Steel	3/8
	LBS-D2-22	22	.6875	.2498	.125	.750	.312	.406	303 Stainless Steel	3/8
	LBS-D2-24	24	.7500	.2498	.125	.813	.312	.406	303 Stainless Steel	3/8
	LBS-D2-26	26	.8125	.2498	.125	.875	.312	.406	303 Stainless Steel	3/8
	LBS-D2-28	28	.8750	.2498	.125	.938	.312	.406	303 Stainless Steel	3/8
	LBS-D2-30	30	.9375	.2498	.125	1.000	.312	.406	303 Stainless Steel	3/8
	LBS-D2-32	32	1.0000	.2498	.125	1.063	.312	.406	303 Stainless Steel	3/8
	LBS-D2-36	36	1.1250	.2498	.125	1.188	.312	.406	303 Stainless Steel	3/8
	LBS-D2-40	40	1.2500	.2498	.125	1.313	.312	.406	303 Stainless Steel	3/8
	LBS-D2-48	48	1.5000	.2498	.125	1.563	.312	.406	303 Stainless Steel	3/8
	LBS-D2-56	56	1.7500	.2498	.125	1.813	.312	.406	303 Stainless Steel	3/8
	LBS-D2-64	64	2.0000	.2498	.125	2.063	.312	.406	303 Stainless Steel	3/8
	LBS-D2-72	72	2.2500	.2498	.125	2.313	.312	.406	303 Stainless Steel	3/8
	LBS-D2-80	80	2.5000	.2498	.125	2.563	.312	.406	303 Stainless Steel	3/8
	LBS-D2-88	88	2.7500	.2498	.125	2.813	.312	.406	303 Stainless Steel	3/8
	LBS-D2-96	96	3.0000	.2498	.125	3.063	.312	.406	303 Stainless Steel	3/8
	LBS-D2-112	112	3.5000	.2498	.125	3.563	.312	.406	303 Stainless Steel	3/8
	LBS-D2-127	127	3.9688	.2498	.125	4.031	.312	.406	303 Stainless Steel	3/8
	LBS-D2-128	128	4.0000	.2498	.125	4.063	.312	.406	303 Stainless Steel	3/8
	LBS-D2-132	132	4.1250	.2498	.125	4.188	.312	.406	303 Stainless Steel	3/8
	LBS-D3-20	20	.6250	.2498	.187	.688	.312	.500	303 Stainless Steel	.406
	LBS-D3-21	21	.6563	.2498	.187	.719	.312	.500	303 Stainless Steel	.406
	LBS-D3-22	22	.6875	.2498	.187	.750	.312	.500	303 Stainless Steel	.406
	LBS-D3-23	23	.7188	.2498	.187	.781	.312	.500	303 Stainless Steel	.406
	LBS-D3-24	24	.7500	.2498	.187	.813	.312	.500	303 Stainless Steel	.406
	LBS-D3-25	25	.7813	.2498	.187	.844	.312	.500	303 Stainless Steel	.406
	LBS-D3-26	26	.8125	.2498	.187	.875	.312	.500	303 Stainless Steel	.406
	LBS-D3-28	28	.8750	.2498	.187	.938	.312	.500	303 Stainless Steel	.406
	LBS-D3-30	30	.9375	.2498	.187	1.000	.312	.500	303 Stainless Steel	.406
	LBS-D3-32	32	1.0000	.2498	.187	1.063	.312	.500	303 Stainless Steel	.406
	LBS-D3-34	34	1.0625	.2498	.187	1.125	.312	.500	303 Stainless Steel	.406
	LBS-D3-36	36	1.1250	.2498	.187	1.188	.312	.500	303 Stainless Steel	.406
	LBS-D3-38	38	1.1875	.2498	.187	1.250	.312	.500	303 Stainless Steel	.406
	LBS-D3-40	40	1.2500	.2498	.187	1.313	.312	.500	303 Stainless Steel	.406
	LBS-D3-44	44	1.3750	.2498	.187	1.438	.312	.500	303 Stainless Steel	.406
	LBS-D3-48	48	1.5000	.2498	.187	1.563	.312	.500	303 Stainless Steel	.406
	LBS-D3-52	52	1.6250	.2498	.187	1.688	.312	.500	303 Stainless Steel	.406
	LBS-D3-56	56	1.7500	.2498	.187	1.813	.312	.500	303 Stainless Steel	.406
	LBS-D3-60	60	1.8750	.2498	.187	1.938	.312	.500	303 Stainless Steel	.406
	LBS-D3-64	64	2.0000	.2498	.187	2.063	.312	.500	303 Stainless Steel	.406
	LBS-D3-68	68	2.1250	.2498	.187	2.188	.312	.500	303 Stainless Steel	.406
	LBS-D3-72	72	2.2500	.2498	.187	2.313	.312	.500	303 Stainless Steel	.406
	LBS-D3-76	76	2.3750	.2498	.187	2.438	.312	.500	303 Stainless Steel	.406
	LBS-D3-80	80	2.5000	.2498	.187	2.563	.312	.500	303 Stainless Steel	.406
	LBS-D3-90	90	2.8125	.2498	.187	2.875	.312	.500	303 Stainless Steel	.406
	LBS-D3-96	96	3.0000	.2498	.187	3.063	.312	.500	303 Stainless Steel	.406
	LBS-D3-112	112	3.5000	.2498	.187	3.563	.312	.500	303 Stainless Steel	.406
	LBS-D3-120	120	3.7500	.2498	.187	3.813	.312	.500	303 Stainless Steel	.406
	LBS-D3-128	128	4.0000	.2498	.187	4.063	.312	.500	303 Stainless Steel	.406
	LBS-D3-132	132	4.1250	.2498	.187	4.188	.312	.500	303 Stainless Steel	.406

Machining

Custom Machining Solutions

Engineering & Design

World-class Engineering

Quality

Premiere Quality

Gearing

Gears for every application

Testing

Complete Quality Testing

Product Capabilities

Unparalleled Ability

Find what you are looking for

Search our Products

Cross-Reference

Nordex.com

Search our Products:

Spur Gear-Split Hub 32 Pitch,1/8 Face & 3/16 Face
