Spur Gear Pin Hub 32 Pitch

Spur Gear Pin Hub 32 Pitch

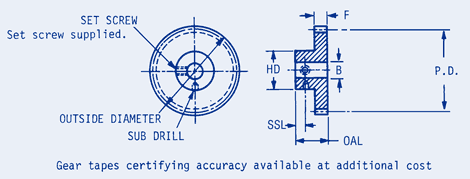

  • T = Number of Teeth
  • PD = Pitch Diameter
  • B = Bore
  • F = Face Width
  • OD = Outside Diameter
  • HD = Hub Diameter
  • OAL = Overall Length
  • SSL = Set Screw Location
  • M= Material
  • SS = Set Screw
20 degree pressure angle, Quality AGMA 10. Aluminum gears are anodized before gear cutting.
  • T = Number of Teeth
  • PD = Pitch Diameter
  • B = Bore
  • F = Face Width
  • OD = Outside Diameter
  • HD = Hub Diameter
  • OAL = Overall Length
  • SSL = Set Screw Location
  • M= Material
  • SS = Set Screw
Part Number of Teeth Pitch Diameter Bore Face Width Outside Diameter Hub Diameter Overall Length Set Screw Location Material Set Screw
Buy View
LAA-D1-15 15 .4688 .1873 .187 .531 .375 .406 .11 2024-T4 Aluminum #4-40
LAA-D1-16 16 .5000 .1873 .187 .562 .375 .406 .11 2024-T4 Aluminum #4-40
LAA-D1-17 17 .5313 .1873 .187 .594 .375 .406 .11 2024-T4 Aluminum #4-40
LAA-D1-18 18 .5625 .1873 .187 .625 .375 .406 .11 2024-T4 Aluminum #4-40
LAA-D1-20 20 .6250 .1873 .187 .687 .375 .406 .11 2024-T4 Aluminum #4-40
LAA-D1-22 22 .6875 .1873 .187 .750 .375 .406 .11 2024-T4 Aluminum #4-40
LAA-D1-24 24 .7500 .1873 .187 .812 .375 .406 .11 2024-T4 Aluminum #4-40
LAA-D1-26 26 .8125 .1873 .187 .875 .375 .406 .11 2024-T4 Aluminum #4-40
LAA-D1-28 28 .8750 .1873 .187 .937 .375 .406 .11 2024-T4 Aluminum #4-40
LAA-D1-30 30 .9375 .1873 .187 1.000 .375 .406 .11 2024-T4 Aluminum #4-40
LAA-D1-32 32 1.0000 .1873 .187 1.062 .375 .406 .11 2024-T4 Aluminum #4-40
LAA-D1-36 36 1.1250 .1873 .187 1.188 .375 .406 .11 2024-T4 Aluminum #4-40
LAA-D1-40 40 1.2500 .1873 .187 1.312 .375 .406 .11 2024-T4 Aluminum #4-40
LAA-D1-48 48 1.5000 .1873 .187 1.562 .375 .406 .11 2024-T4 Aluminum #4-40
LAA-D1-56 56 1.7500 .1873 .187 1.812 .375 .406 .11 2024-T4 Aluminum #4-40
LAA-D1-64 64 2.0000 .1873 .187 2.062 .375 .406 .11 2024-T4 Aluminum #4-40
LAA-D1-72 72 2.2500 .1873 .187 2.312 .375 .406 .11 2024-T4 Aluminum #4-40
LAA-D1-80 80 2.5000 .1873 .187 2.562 .375 .406 .11 2024-T4 Aluminum #4-40
LAA-D1-88 88 2.7500 .1873 .187 2.812 .375 .406 .11 2024-T4 Aluminum #4-40
LAA-D1-96 96 3.0000 .1873 .187 3.062 .375 .406 .11 2024-T4 Aluminum #4-40
LAA-D1-104 104 3.2500 .1873 .187 3.312 .375 .406 .11 2024-T4 Aluminum #4-40
LAA-D1-112 112 3.5000 .1873 .187 3.562 .375 .406 .11 2024-T4 Aluminum #4-40
LAA-D1-120 120 3.7500 .1873 .187 3.812 .375 .406 .11 2024-T4 Aluminum #4-40
LAA-D1-128 128 4.0000 .1873 .187 4.062 .375 .406 .11 2024-T4 Aluminum #4-40
LAA-D2-20 20 .6250 .2498 .187 .687 .500 .437 .12 2024-T4 Aluminum #6-32
LAA-D2-22 22 .6875 .2498 .187 .750 .500 .437 .12 2024-T4 Aluminum #6-32
LAA-D2-24 24 .7500 .2498 .187 .812 .500 .437 .12 2024-T4 Aluminum #6-32
LAA-D2-26 26 .8125 .2498 .187 .875 .500 .437 .12 2024-T4 Aluminum #6-32
LAA-D2-28 28 .8750 .2498 .187 .937 .500 .437 .12 2024-T4 Aluminum #6-32
LAA-D2-30 30 .9375 .2498 .187 1.000 .500 .437 .12 2024-T4 Aluminum #6-32
LAA-D2-32 32 1.0000 .2498 .187 1.062 .500 .437 .12 2024-T4 Aluminum #6-32
LAA-D2-36 36 1.1250 .2498 .187 1.187 .500 .437 .12 2024-T4 Aluminum #6-32
LAA-D2-38 38 1.1875 .2498 .187 1.250 .500 .437 .12 2024-T4 Aluminum #6-32
LAA-D2-40 40 1.2500 .2498 .187 1.312 .500 .437 .12 2024-T4 Aluminum #6-32
LAA-D2-48 48 1.5000 .2498 .187 1.562 .500 .437 .12 2024-T4 Aluminum #6-32
LAA-D2-52 52 1.6250 .2498 .187 1.687 .500 .437 .12 2024-T4 Aluminum #6-32
LAA-D2-56 56 1.7500 .2498 .187 1.812 .500 .437 .12 2024-T4 Aluminum #6-32
LAA-D2-60 60 1.8750 .2498 .187 1.937 .500 .437 .12 2024-T4 Aluminum #6-32
LAA-D2-64 64 2.0000 .2498 .187 2.062 .500 .437 .12 2024-T4 Aluminum #6-32
LAA-D2-72 72 2.2500 .2498 .187 2.312 .500 .437 .12 2024-T4 Aluminum #6-32
LAA-D2-80 80 2.5000 .2498 .187 2.562 .500 .437 .12 2024-T4 Aluminum #6-32
LAA-D2-88 88 2.7500 .2498 .187 2.812 .500 .437 .12 2024-T4 Aluminum #6-32
LAA-D2-96 96 3.0000 .2498 .187 3.062 .500 .437 .12 2024-T4 Aluminum #6-32
LAA-D2-104 104 3.2500 .2498 .187 3.312 .500 .437 .12 2024-T4 Aluminum #6-32
LAA-D2-108 108 3.3750 .2498 .187 3.437 .500 .437 .12 2024-T4 Aluminum #6-32
LAA-D2-112 112 3.5000 .2498 .187 3.562 .500 .437 .12 2024-T4 Aluminum #6-32
LAA-D2-120 120 3.7500 .2498 .187 3.812 .500 .437 .12 2024-T4 Aluminum #6-32
LAA-D2-128 128 4.0000 .2498 .187 4.062 .500 .437 .12 2024-T4 Aluminum #6-32
LAA-D2-132 132 4.1250 .2498 .187 4.187 .500 .437 .12 2024-T4 Aluminum #6-32
LAA-D4-18 18 .5625 .2498 .125 .625 .500 .375 .12 2024-T4 Aluminum #6-32
LAA-D4-20 20 .6250 .2498 .125 .687 .500 .375 .12 2024-T4 Aluminum #6-32
LAA-D4-22 22 .6875 .2498 .125 .750 .500 .375 .12 2024-T4 Aluminum #6-32
LAA-D4-24 24 .7500 .2498 .125 .812 .500 .375 .12 2024-T4 Aluminum #6-32
LAA-D4-25 25 .7813 .2498 .125 .844 .500 .375 .12 2024-T4 Aluminum #6-32
LAA-D4-26 26 .8125 .2498 .125 .875 .500 .375 .12 2024-T4 Aluminum #6-32
LAA-D4-28 28 .8750 .2498 .125 .937 .500 .375 .12 2024-T4 Aluminum #6-32
LAA-D4-30 30 .9375 .2498 .125 1.000 .500 .375 .12 2024-T4 Aluminum #6-32
LAA-D4-32 32 1.0000 .2498 .125 1.062 .500 .375 .12 2024-T4 Aluminum #6-32
LAA-D4-36 36 1.1250 .2498 .125 1.188 .500 .375 .12 2024-T4 Aluminum #6-32
LAA-D4-40 40 1.2500 .2498 .125 1.312 .500 .375 .12 2024-T4 Aluminum #6-32
LAA-D4-42 42 1.3125 .2498 .125 1.375 .500 .375 .12 2024-T4 Aluminum #6-32
LAA-D4-45 45 1.4063 .2498 .125 1.469 .500 .375 .12 2024-T4 Aluminum #6-32
LAA-D4-48 48 1.5000 .2498 .125 1.562 .500 .375 .12 2024-T4 Aluminum #6-32
LAA-D4-50 50 1.5625 .2498 .125 1.625 .500 .375 .12 2024-T4 Aluminum #6-32
LAA-D4-54 54 1.6875 .2498 .125 1.750 .500 .375 .12 2024-T4 Aluminum #6-32
LAA-D4-56 56 1.7500 .2498 .125 1.812 .500 .375 .12 2024-T4 Aluminum #6-32
LAA-D4-60 60 1.8750 .2498 .125 1.938 .500 .375 .12 2024-T4 Aluminum #6-32
LAA-D4-64 64 2.0000 .2498 .125 2.062 .500 .375 .12 2024-T4 Aluminum #6-32
LAA-D4-70 70 2.1875 .2498 .125 2.250 .500 .375 .12 2024-T4 Aluminum #6-32
LAA-D4-72 72 2.2500 .2498 .125 2.312 .500 .375 .12 2024-T4 Aluminum #6-32
LAA-D4-75 75 2.3438 .2498 .125 2.406 .500 .375 .12 2024-T4 Aluminum #6-32
LAA-D4-76 76 2.3750 .2498 .125 2.438 .500 .375 .12 2024-T4 Aluminum #6-32
LAA-D4-80 80 2.5000 .2498 .125 2.562 .500 .375 .12 2024-T4 Aluminum #6-32
LAA-D4-88 88 2.7500 .2498 .125 2.812 .500 .375 .12 2024-T4 Aluminum #6-32
LAA-D4-90 90 2.8125 .2498 .125 2.875 .500 .375 .12 2024-T4 Aluminum #6-32
LAA-D4-96 96 3.0000 .2498 .125 3.062 .500 .375 .12 2024-T4 Aluminum #6-32
LAA-D4-100 100 3.1250 .2498 .125 3.188 .500 .375 .12 2024-T4 Aluminum #6-32
LAA-D4-110 110 3.4375 .2498 .125 3.500 .500 .375 .12 2024-T4 Aluminum #6-32
LAA-D4-120 120 3.7500 .2498 .125 3.812 .500 .375 .12 2024-T4 Aluminum #6-32
LAS-D1-15 15 .4688 .1873 .187 .531 .375 .406 .11 303 Stainless Steel #4-40
LAS-D1-16 16 .5000 .1873 .187 .562 .375 .406 .11 303 Stainless Steel #4-40
LAS-D1-17 17 .5313 .1873 .187 .594 .375 .406 .11 303 Stainless Steel #4-40
LAS-D1-18 18 .5625 .1873 .187 .625 .375 .406 .11 303 Stainless Steel #4-40
LAS-D1-20 20 .6250 .1873 .187 .687 .375 .406 .11 303 Stainless Steel #4-40
LAS-D1-22 22 .6875 .1873 .187 .750 .375 .406 .11 303 Stainless Steel #4-40
LAS-D1-24 24 .7500 .1873 .187 .812 .375 .406 .11 303 Stainless Steel #4-40
LAS-D1-26 26 .8125 .1873 .187 .875 .375 .406 .11 303 Stainless Steel #4-40
LAS-D1-28 28 .8750 .1873 .187 .937 .375 .406 .11 303 Stainless Steel #4-40
LAS-D1-30 30 .9375 .1873 .187 1.000 .375 .406 .11 303 Stainless Steel #4-40
LAS-D1-32 32 1.0000 .1873 .187 1.062 .375 .406 .11 303 Stainless Steel #4-40
LAS-D1-36 36 1.1250 .1873 .187 1.188 .375 .406 .11 303 Stainless Steel #4-40
LAS-D1-40 40 1.2500 .1873 .187 1.312 .375 .406 .11 303 Stainless Steel #4-40
LAS-D1-48 48 1.5000 .1873 .187 1.562 .375 .406 .11 303 Stainless Steel #4-40
LAS-D1-56 56 1.7500 .1873 .187 1.812 .375 .406 .11 303 Stainless Steel #4-40
LAS-D1-64 64 2.0000 .1873 .187 2.062 .375 .406 .11 303 Stainless Steel #4-40
LAS-D1-72 72 2.2500 .1873 .187 2.312 .375 .406 .11 303 Stainless Steel #4-40
LAS-D1-80 80 2.5000 .1873 .187 2.562 .375 .406 .11 303 Stainless Steel #4-40
LAS-D1-88 88 2.7500 .1873 .187 2.812 .375 .406 .11 303 Stainless Steel #4-40
LAS-D1-96 96 3.0000 .1873 .187 3.062 .375 .406 .11 303 Stainless Steel #4-40
LAS-D1-104 104 3.2500 .1873 .187 3.312 .375 .406 .11 303 Stainless Steel #4-40
LAS-D1-112 112 3.5000 .1873 .187 3.562 .375 .406 .11 303 Stainless Steel #4-40
LAS-D1-120 120 3.7500 .1873 .187 3.812 .375 .406 .11 303 Stainless Steel #4-40
LAS-D1-128 128 4.0000 .1873 .187 4.062 .375 .406 .11 303 Stainless Steel #4-40
LAS-D2-20 20 .6250 .2498 .187 .687 .500 .437 .12 303 Stainless Steel #6-32
LAS-D2-22 22 .6875 .2498 .187 .750 .500 .437 .12 303 Stainless Steel #6-32
LAS-D2-24 24 .7500 .2498 .187 .812 .500 .437 .12 303 Stainless Steel #6-32
LAS-D2-26 26 .8125 .2498 .187 .875 .500 .437 .12 303 Stainless Steel #6-32
LAS-D2-28 28 .8750 .2498 .187 .937 .500 .437 .12 303 Stainless Steel #6-32
LAS-D2-30 30 .9375 .2498 .187 1.000 .500 .437 .12 303 Stainless Steel #6-32
LAS-D2-32 32 1.0000 .2498 .187 1.062 .500 .437 .12 303 Stainless Steel #6-32
LAS-D2-36 36 1.1250 .2498 .187 1.187 .500 .437 .12 303 Stainless Steel #6-32
LAS-D2-38 38 1.1875 .2498 .187 1.250 .500 .437 .12 303 Stainless Steel #6-32
LAS-D2-40 40 1.2500 .2498 .187 1.312 .500 .437 .12 303 Stainless Steel #6-32
LAS-D2-48 48 1.5000 .2498 .187 1.562 .500 .437 .12 303 Stainless Steel #6-32
LAS-D2-52 52 1.6250 .2498 .187 1.687 .500 .437 .12 303 Stainless Steel #6-32
LAS-D2-56 56 1.7500 .2498 .187 1.812 .500 .437 .12 303 Stainless Steel #6-32
LAS-D2-60 60 1.8750 .2498 .187 1.937 .500 .437 .12 303 Stainless Steel #6-32
LAS-D2-64 64 2.0000 .2498 .187 2.062 .500 .437 .12 303 Stainless Steel #6-32
LAS-D2-72 72 2.2500 .2498 .187 2.312 .500 .437 .12 303 Stainless Steel #6-32
LAS-D2-80 80 2.5000 .2498 .187 2.562 .500 .437 .12 303 Stainless Steel #6-32
LAS-D2-88 88 2.7500 .2498 .187 2.812 .500 .437 .12 303 Stainless Steel #6-32
LAS-D2-96 96 3.0000 .2498 .187 3.062 .500 .437 .12 303 Stainless Steel #6-32
LAS-D2-104 104 3.2500 .2498 .187 3.312 .500 .437 .12 303 Stainless Steel #6-32
LAS-D2-108 108 3.3750 .2498 .187 3.437 .500 .437 .12 303 Stainless Steel #6-32
LAS-D2-112 112 3.5000 .2498 .187 3.562 .500 .437 .12 303 Stainless Steel #6-32
LAS-D2-120 120 3.7500 .2498 .187 3.812 .500 .437 .12 303 Stainless Steel #6-32
LAS-D2-128 128 4.0000 .2498 .187 4.062 .500 .437 .12 303 Stainless Steel #6-32
LAS-D2-132 132 4.1250 .2498 .187 4.187 .500 .437 .12 303 Stainless Steel #6-32
LAS-D3-20 20 .6250 .3750 .375 .688 .750 .750 .19 303 Stainless Steel #10-32
LAS-D3-22 22 .6875 .3750 .375 .750 .750 .750 .19 303 Stainless Steel #10-32
LAS-D3-24 24 .7500 .3750 .375 .813 .750 .750 .19 303 Stainless Steel #10-32
LAS-D3-26 26 .8125 .3750 .375 .875 .750 .750 .19 303 Stainless Steel #10-32
LAS-D3-28 28 .8750 .3750 .375 .938 .750 .750 .19 303 Stainless Steel #10-32
LAS-D3-30 30 .9375 .3750 .375 1.000 .750 .750 .19 303 Stainless Steel #10-32
LAS-D3-32 32 1.0000 .3750 .375 1.063 .750 .750 .19 303 Stainless Steel #10-32
LAS-D3-34 34 1.0625 .3750 .375 1.125 .750 .750 .19 303 Stainless Steel #10-32
LAS-D3-36 36 1.1250 .3750 .375 1.188 .750 .750 .19 303 Stainless Steel #10-32
LAS-D3-38 38 1.1875 .3750 .375 1.250 .750 .750 .19 303 Stainless Steel #10-32
LAS-D3-40 40 1.2500 .3750 .375 1.313 .750 .750 .19 303 Stainless Steel #10-32
LAS-D3-44 44 1.3750 .3750 .375 1.438 .750 .750 .19 303 Stainless Steel #10-32
LAS-D3-48 48 1.5000 .3750 .375 1.563 .750 .750 .19 303 Stainless Steel #10-32
LAS-D3-52 52 1.6250 .3750 .375 1.688 .750 .750 .19 303 Stainless Steel #10-32
LAS-D3-56 56 1.7500 .3750 .375 1.813 .750 .750 .19 303 Stainless Steel #10-32
LAS-D3-60 60 1.8750 .3750 .375 1.938 .750 .750 .19 303 Stainless Steel #10-32
LAS-D4-18 18 .5625 .2498 .125 .625 .500 .375 .12 303 Stainless Steel #6-32
LAS-D4-20 20 .6250 .2498 .125 .687 .500 .375 .12 303 Stainless Steel #6-32
LAS-D4-22 22 .6875 .2498 .125 .750 .500 .375 .12 303 Stainless Steel #6-32
LAS-D4-24 24 .7500 .2498 .125 .812 .500 .375 .12 303 Stainless Steel #6-32
LAS-D4-25 25 .7813 .2498 .125 .844 .500 .375 .12 303 Stainless Steel #6-32
LAS-D4-26 26 .8125 .2498 .125 .875 .500 .375 .12 303 Stainless Steel #6-32
LAS-D4-28 28 .8750 .2498 .125 .937 .500 .375 .12 303 Stainless Steel #6-32
LAS-D4-30 30 .9375 .2498 .125 1.000 .500 .375 .12 303 Stainless Steel #6-32
LAS-D4-32 32 1.0000 .2498 .125 1.062 .500 .375 .12 303 Stainless Steel #6-32
LAS-D4-36 36 1.1250 .2498 .125 1.188 .500 .375 .12 303 Stainless Steel #6-32
LAS-D4-40 40 1.2500 .2498 .125 1.312 .500 .375 .12 303 Stainless Steel #6-32
LAS-D4-42 42 1.3125 .2498 .125 1.375 .500 .375 .12 303 Stainless Steel #6-32
LAS-D4-45 45 1.4063 .2498 .125 1.469 .500 .375 .12 303 Stainless Steel #6-32
LAS-D4-48 48 1.5000 .2498 .125 1.562 .500 .375 .12 303 Stainless Steel #6-32
LAS-D4-50 50 1.5625 .2498 .125 1.625 .500 .375 .12 303 Stainless Steel #6-32
LAS-D4-54 54 1.6875 .2498 .125 1.750 .500 .375 .12 303 Stainless Steel #6-32
LAS-D4-56 56 1.7500 .2498 .125 1.812 .500 .375 .12 303 Stainless Steel #6-32
LAS-D4-60 60 1.8750 .2498 .125 1.938 .500 .375 .12 303 Stainless Steel #6-32
LAS-D4-64 64 2.0000 .2498 .125 2.062 .500 .375 .12 303 Stainless Steel #6-32
LAS-D4-70 70 2.1875 .2498 .125 2.250 .500 .375 .12 303 Stainless Steel #6-32
LAS-D4-72 72 2.2500 .2498 .125 2.312 .500 .375 .12 303 Stainless Steel #6-32
LAS-D4-75 75 2.3438 .2498 .125 2.406 .500 .375 .12 303 Stainless Steel #6-32
LAS-D4-76 76 2.3750 .2498 .125 2.438 .500 .375 .12 303 Stainless Steel #6-32
LAS-D4-80 80 2.5000 .2498 .125 2.562 .500 .375 .12 303 Stainless Steel #6-32
LAS-D4-88 88 2.7500 .2498 .125 2.812 .500 .375 .12 303 Stainless Steel #6-32
LAS-D4-90 90 2.8125 .2498 .125 2.875 .500 .375 .12 303 Stainless Steel #6-32
LAS-D4-96 96 3.0000 .2498 .125 3.062 .500 .375 .12 303 Stainless Steel #6-32
LAS-D4-100 100 3.1250 .2498 .125 3.188 .500 .375 .12 303 Stainless Steel #6-32
LAS-D4-110 110 3.4375 .2498 .125 3.500 .500 .375 .12 303 Stainless Steel #6-32
LAS-D4-120 120 3.7500 .2498 .125 3.812 .500 .375 .12 303 Stainless Steel #6-32
LAX-D3-20 20 .6250 .3750 .375 .688 .750 .750 .19 Bronze #10-32
LAX-D3-22 22 .6875 .3750 .375 .750 .750 .750 .19 Bronze #10-32
LAX-D3-24 24 .7500 .3750 .375 .813 .750 .750 .19 Bronze #10-32
LAX-D3-26 26 .8125 .3750 .375 .875 .750 .750 .19 Bronze #10-32
LAX-D3-28 28 .8750 .3750 .375 .938 .750 .750 .19 Bronze #10-32
LAX-D3-30 30 .9375 .3750 .375 1.000 .750 .750 .19 Bronze #10-32
LAX-D3-32 32 1.0000 .3750 .375 1.063 .750 .750 .19 Bronze #10-32
LAX-D3-34 34 1.0625 .3750 .375 1.125 .750 .750 .19 Bronze #10-32
LAX-D3-36 36 1.1250 .3750 .375 1.188 .750 .750 .19 Bronze #10-32
LAX-D3-38 38 1.1875 .3750 .375 1.250 .750 .750 .19 Bronze #10-32
LAX-D3-40 40 1.2500 .3750 .375 1.313 .750 .750 .19 Bronze #10-32
LAX-D3-44 44 1.3750 .3750 .375 1.438 .750 .750 .19 Bronze #10-32
LAX-D3-48 48 1.5000 .3750 .375 1.563 .750 .750 .19 Bronze #10-32
LAX-D3-52 52 1.6250 .3750 .375 1.688 .750 .750 .19 Bronze #10-32
LAX-D3-56 56 1.7500 .3750 .375 1.813 .750 .750 .19 Bronze #10-32
LAX-D3-60 60 1.8750 .3750 .375 1.938 .750 .750 .19 Bronze #10-32
