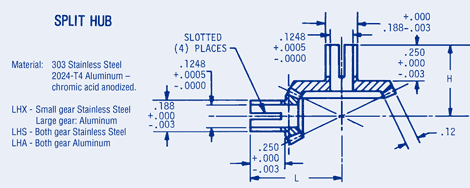

Miter and Bevel Gears 72 Pitch Split Hub .12 Face,.1248 Bore

Miter and Bevel Gears 72 Pitch Split Hub .12 Face,.1248 Bore
  • PD1 = Pitch Diameter Smallest Gear
  • PD2 = Pitch Diameter Largest Gear
  • T1 = Number of Teeth Smallest Gear
  • T2 = Number of Teeth Largest Gear
  • R= Ratio
  • L = Length to center
  • H= Height to center
20 degree pressure angle. AGMA Quality 10. Matched sets.
  • PD1 = Pitch Diameter Smallest Gear
  • PD2 = Pitch Diameter Largest Gear
  • T1 = Number of Teeth Smallest Gear
  • T2 = Number of Teeth Largest Gear
  • R= Ratio
  • L = Length to center
  • H= Height to center
Part Pitch Diameter Smallest Gear Pitch Diameter Largest Gear Number of Teeth Smallest Gear Number of Teeth Largest Gear Ratio Length to center Height to center
Buy View
LHA-G5-24 .333 .333 24 24 1:1 .500 .50000
LHA-G5-36 .500 .500 36 36 1:1 .593 .59300
LHA-G5-54 .500 .750 36 54 1:1-1/2 .703 .59300
LHA-G5-72 .500 1.000 36 72 1:2 .812 .59300
LHA-G5-108 .500 1.500 36 108 1:3 1.062 .59300
LHA-G5-144 .500 2.000 36 144 1:4 1.312 .59300
LHS-G5-24 .333 .333 24 24 1:1 .500 .50000
LHS-G5-36 .500 .500 36 36 1:1 .593 .59300
LHS-G5-54 .500 .750 36 54 1:1-1/2 .703 .59300
LHS-G5-72 .500 1.000 36 72 1:2 .812 .59300
LHS-G5-108 .500 1.500 36 108 1:3 1.062 .59300
LHS-G5-144 .500 2.000 36 144 1:4 1.312 .59300
LHX-G5-24 .333 .333 24 24 1:1 .500 .50000
LHX-G5-36 .500 .500 36 36 1:1 .593 .59300
LHX-G5-54 .500 .750 36 54 1:1-1/2 .703 .59300
LHX-G5-72 .500 1.000 36 72 1:2 .812 .59300
LHX-G5-108 .500 1.500 36 108 1:3 1.062 .59300
LHX-G5-144 .500 2.000 36 144 1:4 1.312 .59300
