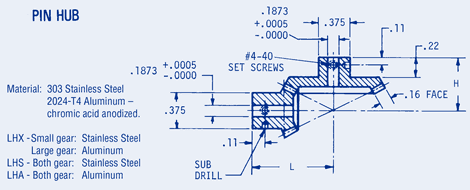

Miter and Bevel Gears 64 Pitch Pin Hub .16 Face, .1873 Bore

Miter and Bevel Gears 64 Pitch Pin Hub .16 Face, .1873 Bore
  • PD1 = Pitch Diameter Smallest Gear
  • PD2 = Pitch Diameter Largest Gear
  • T1 = Number of Teeth Smallest Gear
  • T2 = Number of Teeth Largest Gear
  • R = Ratio
  • L = Length to Center
  • H = Height to Center
20 degree pressure angle. AGMA quality 10. Matched sets.
  • PD1 = Pitch Diameter Smallest Gear
  • PD2 = Pitch Diameter Largest Gear
  • T1 = Number of Teeth Smallest Gear
  • T2 = Number of Teeth Largest Gear
  • R = Ratio
  • L = Length to Center
  • H = Height to Center
Part Pitch Diameter Smallest Gear Pitch Diameter Largest Gear Number of Teeth Smallest Gear Number of Teeth Largest Gear Ratio Length to Center Height to Center
Buy View .50000 32.00000 .56200
LHA-F2-32 .500 .500 32 32 1:1 .562 .562
LHA-F2-48 .500 .750 32 48 1:1-1/2 .656 .562
LHA-F2-64 .500 1.000 32 64 1:2 .750 .562
LHA-F2-96 .500 1.500 32 96 1:3 1.000 .562
LHA-F2-128 .500 2.000 32 128 1:4 1.250 .562
LHS-F2-32 .500 .500 32 32 1:1 .562 .562
LHS-F2-48 .500 .750 32 48 1:1-1/2 .656 .562
LHS-F2-64 .500 1.000 32 64 1:2 .750 .562
LHS-F2-96 .500 1.500 32 96 1:3 1.000 .562
LHS-F2-128 .500 2.000 32 128 1:4 1.250 .562
LHX-F2-32 .500 .500 32 32 1:1 .562 .562
LHX-F2-48 .500 .750 32 48 1:1-1/2 .656 .562
LHX-F2-64 .500 1.000 32 64 1:2 .750 .562
LHX-F2-96 .500 1.500 32 96 1:3 1.000 .562
LHX-F2-128 .500 2.000 32 128 1:4 1.250 .562
