Radial Ball Bearing, Thin Series, Metric, Chrome, Abec 3
|
|
| Material: 440 Stainless Steel | |

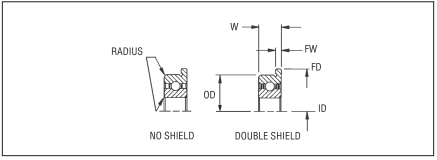

- ID = Inside Diameter
- OD = Outside Diameter
- W = Width
- FD = Flange Diameter
- FW = Flange Width
- R = Radius
- O S R = Open, Shielded, Rubber Seals
- F OR UF = Flanged or Unflanged
| Part | Inside Diameter | Outside Diameter | Width | Flange Diameter | Flange Width | Radius | Open, Shielded, Rubber Seals | Flanged or Unflanged | |
|---|---|---|---|---|---|---|---|---|---|
| Buy | View | ||||||||
| ABS-D1-2 | 10 | 15 | 4 | 17 | 1 | 0 | R | UF | |
| ABS-D1-3 | 10 | 19 | 5 | 21 | 1 | 0 | R | UF | |
| ABS-D1-4 | 10 | 19 | 7 | 21 | 2 | 0 | R | UF | |
| ABS-D1-5 | 10 | 22 | 6 | 25 | 2 | 0 | R | UF | |
| ABS-D1-6 | 12 | 18 | 4 | 20 | 1 | 0 | R | UF | |
| ABS-D1-7 | 12 | 21 | 5 | 23 | 1 | 0 | R | UF | |
| ABS-D1-8 | 12 | 21 | 7 | 23 | 2 | 0 | R | UF | |
| ABS-D1-9 | 12 | 24 | 6 | 27 | 2 | 0 | R | UF | |
| ABS-D1-10 | 15 | 21 | 4 | 23 | 1 | 0 | R | UF | |
| ABS-D1-11 | 15 | 24 | 5 | 26 | 1 | 0 | R | UF | |
| ABS-D1-12 | 15 | 24 | 7 | 26 | 2 | 0 | R | UF | |
| ABS-D1-13 | 15 | 28 | 7 | 31 | 2 | 0 | R | UF | |
| ABS-D1-14 | 17 | 23 | 4 | 25 | 1 | 0 | R | UF | |
| ABS-D1-15 | 17 | 26 | 5 | 28 | 1 | 0 | R | UF | |
| ABS-D1-16 | 17 | 26 | 7 | 28 | 2 | 0 | R | UF | |
| ABS-D1-17 | 17 | 30 | 7 | 33 | 2 | 0 | R | UF | |
| ABS-D1-18 | 20 | 37 | 4 | 29 | 1 | 0 | R | UF | |
| ABS-D1-19 | 20 | 32 | 7 | 35 | 2 | 0 | R | UF | |
| ABS-D1-20 | 20 | 32 | 10 | 35 | 2 | 0 | R | UF | |
| ABS-D1-21 | 20 | 37 | 9 | 40 | 2 | 0 | R | UF | |
| ABS-D6-1 | 10 | 15 | 3 | 17 | 1 | 0 | O | UF | |
| ABS-D6-3 | 10 | 19 | 5 | 21 | 1 | 0 | O | UF | |
| ABS-D6-4 | 10 | 19 | 7 | 21 | 2 | 0 | O | UF | |
| ABS-D6-5 | 10 | 22 | 6 | 25 | 2 | 0 | O | UF | |
| ABS-D6-6 | 12 | 18 | 4 | 20 | 1 | 0 | O | UF | |
| ABS-D6-7 | 12 | 21 | 5 | 23 | 1 | 0 | O | UF | |
| ABS-D6-8 | 12 | 21 | 7 | 23 | 2 | 0 | O | UF | |
| ABS-D6-9 | 12 | 24 | 6 | 27 | 2 | 0 | O | UF | |
| ABS-D6-10 | 15 | 21 | 4 | 23 | 1 | 0 | O | UF | |
| ABS-D6-11 | 15 | 24 | 5 | 26 | 1 | 0 | O | UF | |
| ABS-D6-12 | 15 | 24 | 7 | 26 | 2 | 0 | O | UF | |
| ABS-D6-13 | 15 | 28 | 7 | 31 | 2 | 0 | O | UF | |
| ABS-D6-14 | 17 | 23 | 4 | 25 | 1 | 0 | O | UF | |
| ABS-D6-15 | 17 | 26 | 5 | 28 | 1 | 0 | O | UF | |
| ABS-D6-16 | 17 | 26 | 7 | 28 | 2 | 0 | O | UF | |
| ABS-D6-17 | 17 | 30 | 7 | 33 | 2 | 0 | O | UF | |
| ABS-D6-18 | 20 | 37 | 4 | 29 | 1 | 0 | O | UF | |
| ABS-D6-19 | 20 | 32 | 7 | 35 | 2 | 0 | O | UF | |
| ABS-D6-20 | 20 | 32 | 10 | 35 | 2 | 0 | O | UF | |
| ABS-D6-21 | 20 | 37 | 9 | 40 | 2 | 0 | O | UF | |
| ABS-D7-1 | 10 | 15 | 3 | 17 | 1 | 0 | O | F | |
| ABS-D7-3 | 10 | 19 | 5 | 21 | 1 | 0 | O | F | |
| ABS-D7-4 | 10 | 19 | 7 | 21 | 2 | 0 | O | F | |
| ABS-D7-5 | 10 | 22 | 6 | 25 | 2 | 0 | O | F | |
| ABS-D7-6 | 12 | 18 | 4 | 20 | 1 | 0 | O | F | |
| ABS-D7-7 | 12 | 21 | 5 | 23 | 1 | 0 | O | F | |
| ABS-D7-8 | 12 | 21 | 7 | 23 | 2 | 0 | O | F | |
| ABS-D7-9 | 12 | 24 | 6 | 27 | 2 | 0 | O | F | |
| ABS-D7-10 | 15 | 21 | 4 | 23 | 1 | 0 | O | F | |
| ABS-D7-11 | 15 | 24 | 5 | 26 | 1 | 0 | O | F | |
| ABS-D7-12 | 15 | 24 | 7 | 26 | 2 | 0 | O | F | |
| ABS-D7-13 | 15 | 28 | 7 | 31 | 2 | 0 | O | F | |
| ABS-D7-14 | 17 | 23 | 4 | 25 | 1 | 0 | O | F | |
| ABS-D7-15 | 17 | 26 | 5 | 28 | 1 | 0 | O | F | |
| ABS-D7-16 | 17 | 26 | 7 | 28 | 2 | 0 | O | F | |
| ABS-D7-17 | 17 | 30 | 7 | 33 | 2 | 0 | O | F | |
| ABS-D7-18 | 20 | 37 | 4 | 29 | 1 | 0 | O | F | |
| ABS-D7-19 | 20 | 32 | 7 | 35 | 2 | 0 | O | F | |
| ABS-D7-20 | 20 | 32 | 10 | 35 | 2 | 0 | O | F | |
| ABS-D7-21 | 20 | 37 | 9 | 40 | 2 | 0 | O | F | |
| ABS-D8-2 | 10 | 15 | 4 | 17 | 1 | 0 | S | UF | |
| ABS-D8-3 | 10 | 19 | 5 | 21 | 1 | 0 | S | UF | |
| ABS-D8-4 | 10 | 19 | 7 | 21 | 2 | 0 | S | UF | |
| ABS-D8-5 | 10 | 22 | 6 | 25 | 2 | 0 | S | UF | |
| ABS-D8-6 | 12 | 18 | 4 | 20 | 1 | 0 | S | UF | |
| ABS-D8-7 | 12 | 21 | 5 | 23 | 1 | 0 | S | UF | |
| ABS-D8-8 | 12 | 21 | 7 | 23 | 2 | 0 | S | UF | |
| ABS-D8-9 | 12 | 24 | 6 | 27 | 2 | 0 | S | UF | |
| ABS-D8-10 | 15 | 21 | 4 | 23 | 1 | 0 | S | UF | |
| ABS-D8-11 | 15 | 24 | 5 | 26 | 1 | 0 | S | UF | |
| ABS-D8-12 | 15 | 24 | 7 | 26 | 2 | 0 | S | UF | |
| ABS-D8-13 | 15 | 28 | 7 | 31 | 2 | 0 | S | UF | |
| ABS-D8-14 | 17 | 23 | 4 | 25 | 1 | 0 | S | UF | |
| ABS-D8-15 | 17 | 26 | 5 | 28 | 1 | 0 | S | UF | |
| ABS-D8-16 | 17 | 26 | 7 | 28 | 2 | 0 | S | UF | |
| ABS-D8-17 | 17 | 30 | 7 | 33 | 2 | 0 | S | UF | |
| ABS-D8-18 | 20 | 37 | 4 | 29 | 1 | 0 | S | UF | |
| ABS-D8-19 | 20 | 32 | 7 | 35 | 2 | 0 | S | UF | |
| ABS-D8-20 | 20 | 32 | 10 | 35 | 2 | 0 | S | UF | |
| ABS-D8-21 | 20 | 37 | 9 | 40 | 2 | 0 | S | UF | |
| ABS-D9-2 | 10 | 15 | 4 | 17 | 1 | 0 | S | F | |
| ABS-D9-3 | 10 | 19 | 5 | 21 | 1 | 0 | S | F | |
| ABS-D9-4 | 10 | 19 | 7 | 21 | 2 | 0 | S | F | |
| ABS-D9-5 | 10 | 22 | 6 | 25 | 2 | 0 | S | F | |
| ABS-D9-6 | 12 | 18 | 4 | 20 | 1 | 0 | S | F | |
| ABS-D9-7 | 12 | 21 | 5 | 23 | 1 | 0 | S | F | |
| ABS-D9-8 | 12 | 21 | 7 | 23 | 2 | 0 | S | F | |
| ABS-D9-9 | 12 | 24 | 6 | 27 | 2 | 0 | S | F | |
| ABS-D9-10 | 15 | 21 | 4 | 23 | 1 | 0 | S | F | |
| ABS-D9-11 | 15 | 24 | 5 | 26 | 1 | 0 | S | F | |
| ABS-D9-12 | 15 | 24 | 7 | 26 | 2 | 0 | S | F | |
| ABS-D9-13 | 15 | 28 | 7 | 31 | 2 | 0 | S | F | |
| ABS-D9-14 | 17 | 23 | 4 | 25 | 1 | 0 | S | F | |
| ABS-D9-15 | 17 | 26 | 5 | 28 | 1 | 0 | S | F | |
| ABS-D9-16 | 17 | 26 | 7 | 28 | 2 | 0 | S | F | |
| ABS-D9-17 | 17 | 30 | 7 | 33 | 2 | 0 | S | F | |
| ABS-D9-18 | 20 | 37 | 4 | 29 | 1 | 0 | S | F | |
| ABS-D9-19 | 20 | 32 | 7 | 35 | 2 | 0 | S | F | |
| ABS-D9-20 | 20 | 32 | 10 | 35 | 2 | 0 | S | F | |
| ABS-D9-21 | 20 | 37 | 9 | 40 | 2 | 0 | S | F | |
