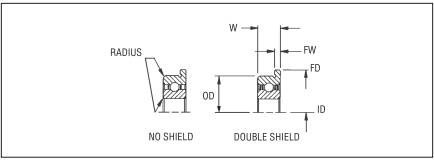

Radial Ball Bearings, Thin Series, Metric, Chrome, Abec 1
|
|
| Material: 52100 Chrome Steel | |
- ID = Inside Diameter
- OD = Outside Diameter
- W = Width
- FD = Flange Diameter
- FW = Flange Width
- R = Radius
- F OR UF = Flanged or Unflanged
- O S R = Open, Shielded, Rubber Seals
| Part | Inside Diameter | Outside Diameter | Width | Flange Diameter | Flange Width | Radius | Flanged or Unflanged | Open, Shielded, Rubber Seals | |
|---|---|---|---|---|---|---|---|---|---|
| Buy | View | ||||||||
| ABC-D1-1 | 10 | 15 | 3 | 17 | 1 | 0 | UF | O | |
| ABC-D1-3 | 10 | 19 | 5 | 21 | 1 | 0 | UF | O | |
| ABC-D1-4 | 10 | 19 | 7 | 21 | 2 | 0 | UF | O | |
| ABC-D1-5 | 10 | 22 | 6 | 25 | 2 | 0 | UF | O | |
| ABC-D1-6 | 12 | 18 | 4 | 20 | 1 | 0 | UF | O | |
| ABC-D1-7 | 12 | 21 | 5 | 23 | 1 | 0 | UF | O | |
| ABC-D1-8 | 12 | 21 | 7 | 23 | 2 | 0 | UF | O | |
| ABC-D1-9 | 12 | 24 | 6 | 27 | 2 | 0 | UF | O | |
| ABC-D1-10 | 15 | 21 | 4 | 23 | 1 | 0 | UF | O | |
| ABC-D1-11 | 15 | 24 | 5 | 26 | 1 | 0 | UF | O | |
| ABC-D1-12 | 15 | 24 | 7 | 26 | 2 | 0 | UF | O | |
| ABC-D1-13 | 15 | 28 | 7 | 31 | 2 | 0 | UF | O | |
| ABC-D1-14 | 17 | 23 | 4 | 25 | 1 | 0 | UF | O | |
| ABC-D1-15 | 17 | 26 | 5 | 28 | 1 | 0 | UF | O | |
| ABC-D1-16 | 17 | 26 | 7 | 28 | 2 | 0 | UF | O | |
| ABC-D1-17 | 17 | 30 | 7 | 33 | 2 | 0 | UF | O | |
| ABC-D1-18 | 20 | 37 | 4 | 29 | 1 | 0 | UF | O | |
| ABC-D1-19 | 20 | 32 | 7 | 35 | 2 | 0 | UF | O | |
| ABC-D1-20 | 20 | 32 | 10 | 35 | 2 | 0 | UF | O | |
| ABC-D1-21 | 20 | 37 | 9 | 40 | 2 | 0 | UF | O | |
| ABC-D2-1 | 10 | 15 | 3 | 17 | 1 | 0 | F | O | |
| ABC-D2-3 | 10 | 19 | 5 | 21 | 1 | 0 | F | O | |
| ABC-D2-4 | 10 | 19 | 7 | 21 | 2 | 0 | F | O | |
| ABC-D2-5 | 10 | 22 | 6 | 25 | 2 | 0 | F | O | |
| ABC-D2-6 | 12 | 18 | 4 | 20 | 1 | 0 | F | O | |
| ABC-D2-8 | 12 | 21 | 7 | 23 | 2 | 0 | F | O | |
| ABC-D2-9 | 12 | 24 | 6 | 27 | 2 | 0 | F | O | |
| ABC-D2-10 | 15 | 21 | 4 | 23 | 1 | 0 | F | O | |
| ABC-D2-11 | 15 | 24 | 5 | 26 | 1 | 0 | F | O | |
| ABC-D2-12 | 15 | 24 | 7 | 26 | 2 | 0 | F | O | |
| ABC-D2-13 | 15 | 28 | 7 | 31 | 2 | 0 | F | O | |
| ABC-D2-14 | 17 | 23 | 4 | 25 | 1 | 0 | F | O | |
| ABC-D2-15 | 17 | 26 | 5 | 28 | 1 | 0 | F | O | |
| ABC-D2-16 | 17 | 26 | 7 | 28 | 2 | 0 | F | O | |
| ABC-D2-17 | 17 | 30 | 7 | 33 | 2 | 0 | F | O | |
| ABC-D2-18 | 20 | 37 | 4 | 29 | 1 | 0 | F | O | |
| ABC-D2-19 | 20 | 32 | 7 | 35 | 2 | 0 | F | O | |
| ABC-D2-20 | 20 | 32 | 10 | 35 | 2 | 0 | F | O | |
| ABC-D2-21 | 20 | 37 | 9 | 40 | 2 | 0 | F | O | |
| ABC-D3-2 | 10 | 15 | 4 | 17 | 1 | 0 | UF | S | |
| ABC-D3-3 | 10 | 19 | 5 | 21 | 1 | 0 | UF | S | |
| ABC-D3-4 | 10 | 19 | 7 | 21 | 2 | 0 | UF | S | |
| ABC-D3-5 | 10 | 22 | 6 | 25 | 2 | 0 | UF | S | |
| ABC-D3-6 | 12 | 18 | 4 | 20 | 1 | 0 | UF | S | |
| ABC-D3-7 | 12 | 21 | 5 | 23 | 1 | 0 | UF | S | |
| ABC-D3-8 | 12 | 21 | 7 | 23 | 2 | 0 | UF | S | |
| ABC-D3-9 | 12 | 24 | 6 | 27 | 2 | 0 | UF | S | |
| ABC-D3-10 | 15 | 21 | 4 | 23 | 1 | 0 | UF | S | |
| ABC-D3-11 | 15 | 24 | 5 | 26 | 1 | 0 | UF | S | |
| ABC-D3-12 | 15 | 24 | 7 | 28 | 2 | 0 | UF | S | |
| ABC-D3-13 | 15 | 28 | 7 | 31 | 2 | 0 | UF | S | |
| ABC-D3-14 | 17 | 23 | 4 | 25 | 1 | 0 | UF | S | |
| ABC-D3-15 | 17 | 26 | 5 | 28 | 1 | 0 | UF | S | |
| ABC-D3-16 | 17 | 26 | 7 | 28 | 2 | 0 | UF | S | |
| ABC-D3-17 | 17 | 30 | 7 | 33 | 2 | 0 | UF | S | |
| ABC-D3-18 | 20 | 37 | 4 | 29 | 1 | 0 | UF | S | |
| ABC-D3-19 | 20 | 32 | 7 | 35 | 2 | 0 | UF | S | |
| ABC-D3-20 | 20 | 32 | 10 | 35 | 2 | 0 | UF | S | |
| ABC-D3-21 | 20 | 37 | 9 | 40 | 2 | 0 | UF | S | |
| ABC-D4-2 | 10 | 15 | 4 | 17 | 1 | 1 | F | S | |
| ABC-D4-3 | 10 | 19 | 5 | 21 | 1 | 1 | F | S | |
| ABC-D4-4 | 10 | 19 | 7 | 21 | 2 | 0 | F | S | |
| ABC-D4-5 | 10 | 22 | 6 | 25 | 2 | 0 | F | S | |
| ABC-D4-6 | 12 | 18 | 4 | 20 | 1 | 0 | F | S | |
| ABC-D4-7 | 12 | 21 | 5 | 23 | 1 | 0 | F | S | |
| ABC-D4-8 | 12 | 21 | 7 | 23 | 2 | 0 | F | S | |
| ABC-D4-9 | 12 | 24 | 6 | 27 | 2 | 0 | F | S | |
| ABC-D4-10 | 15 | 21 | 4 | 23 | 1 | 0 | F | S | |
| ABC-D4-11 | 15 | 24 | 5 | 26 | 1 | 0 | F | S | |
| ABC-D4-12 | 15 | 24 | 7 | 26 | 2 | 0 | F | S | |
| ABC-D4-13 | 15 | 28 | 7 | 31 | 2 | 0 | F | S | |
| ABC-D4-14 | 17 | 23 | 4 | 25 | 1 | 0 | F | S | |
| ABC-D4-15 | 17 | 26 | 5 | 28 | 1 | 0 | F | S | |
| ABC-D4-16 | 17 | 26 | 7 | 28 | 2 | 0 | F | S | |
| ABC-D4-17 | 17 | 30 | 7 | 33 | 2 | 0 | F | S | |
| ABC-D4-18 | 20 | 37 | 4 | 29 | 1 | 0 | F | S | |
| ABC-D4-19 | 20 | 32 | 7 | 35 | 2 | 0 | F | S | |
| ABC-D4-20 | 20 | 32 | 10 | 35 | 2 | 0 | F | S | |
| ABC-D4-21 | 20 | 37 | 9 | 40 | 2 | 0 | F | S | |
| ABC-D5-2 | 10 | 15 | 4 | 17 | 1 | 0 | UF | R | |
| ABC-D5-3 | 10 | 19 | 5 | 21 | 1 | 0 | UF | R | |
| ABC-D5-4 | 10 | 19 | 7 | 21 | 2 | 0 | UF | R | |
| ABC-D5-5 | 10 | 22 | 6 | 25 | 2 | 0 | UF | R | |
| ABC-D5-6 | 12 | 18 | 4 | 20 | 1 | 0 | UF | R | |
| ABC-D5-7 | 12 | 21 | 5 | 23 | 1 | 0 | UF | R | |
| ABC-D5-8 | 12 | 21 | 7 | 23 | 2 | 0 | UF | R | |
| ABC-D5-9 | 12 | 24 | 6 | 27 | 2 | 0 | UF | R | |
| ABC-D5-10 | 15 | 21 | 4 | 23 | 1 | 0 | UF | R | |
| ABC-D5-11 | 15 | 24 | 5 | 26 | 1 | 0 | UF | R | |
| ABC-D5-12 | 15 | 24 | 7 | 26 | 2 | 0 | UF | R | |
| ABC-D5-13 | 15 | 28 | 7 | 31 | 2 | 0 | UF | R | |
| ABC-D5-14 | 17 | 23 | 4 | 25 | 1 | 0 | UF | R | |
| ABC-D5-15 | 17 | 26 | 5 | 28 | 1 | 0 | UF | R | |
| ABC-D5-16 | 17 | 26 | 7 | 28 | 2 | 0 | UF | R | |
| ABC-D5-17 | 17 | 30 | 7 | 33 | 2 | 0 | UF | R | |
| ABC-D5-18 | 20 | 37 | 4 | 29 | 1 | 0 | UF | R | |
| ABC-D5-19 | 20 | 32 | 7 | 35 | 2 | 0 | UF | R | |
| ABC-D5-20 | 20 | 32 | 10 | 35 | 2 | 0 | UF | R | |
| ABC-D5-21 | 20 | 37 | 9 | 40 | 2 | 0 | UF | R | |
