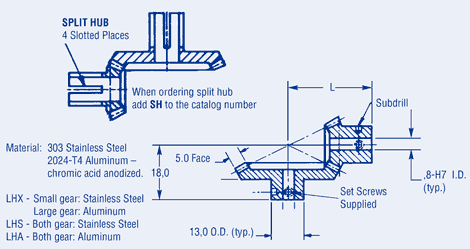

Miter and Bevel Gears 0,6 Module
|
|
| 20 degree pressure angle, Din 7 tolerance | |
- PDSG = Pitch Diameter Smallest Gear
- PDLG = Pitch Diameter Largest Gear
- TSG = Number of Teeth Smallest Gear
- TLG = Number of Teeth Largest Gear
- R = Ratio
- LC = Length to Center
- H = Hub
- M = Material
| Part | Pitch Diameter Smallest Gear | Pitch Diameter Largest Gear | Number of Teeth Smallest Gear | Number of Teeth Largest Gear | Ratio | Length to Center | Hub | Material | |
|---|---|---|---|---|---|---|---|---|---|
| Buy | View | 18.00000 | 30.00000 | ||||||
| LHA-M6-30 | 18.00 | 18.00 | 30.00 | 30.00 | 1:1 | 18.0 | Pin Hub | 2024-T4 Aluminum | |
| LHA-M6-30SH | 18.00 | 18.00 | 30.00 | 30.00 | 1:1 | 18.0 | Split Hub | 2024-T4 Aluminum | |
| LHA-M6-60 | 18.00 | 36.00 | 30.00 | 60.00 | 1:2 | 26.0 | Pin Hub | 2024-T4 Aluminum | |
| LHA-M6-60SH | 18.00 | 36.00 | 30.00 | 60.00 | 1:2 | 26.0 | Split Hub | 2024-T4 Aluminum | |
| LHA-M6-90 | 18.00 | 54.00 | 30.00 | 90.00 | 1:3 | 36.0 | Pin Hub | 2024-T4 Aluminum | |
| LHA-M6-90SH | 18.00 | 54.00 | 30.00 | 90.00 | 1:3 | 36.0 | Split Hub | 2024-T4 Aluminum | |
| LHA-M6-120 | 18.00 | 72.00 | 30.00 | 120.00 | 1:4 | 44.0 | Pin Hub | 2024-T4 Aluminum | |
| LHA-M6-120SH | 18.00 | 72.00 | 30.00 | 120.00 | 1:4 | 44.0 | Split Hub | 2024-T4 Aluminum | |
| LHS-M6-30 | 18.00 | 18.00 | 30.00 | 30.00 | 1:1 | 18.0 | Pin Hub | 303 Stainless Steel | |
| LHS-M6-30SH | 18.00 | 18.00 | 30.00 | 30.00 | 1:1 | 18.0 | Split Hub | 303 Stainless Steel | |
| LHS-M6-60 | 18.00 | 36.00 | 30.00 | 60.00 | 1:2 | 26.0 | Pin Hub | 303 Stainless Steel | |
| LHS-M6-60SH | 18.00 | 36.00 | 30.00 | 60.00 | 1:2 | 26.0 | Split Hub | 303 Stainless Steel | |
| LHS-M6-90 | 18.00 | 54.00 | 30.00 | 90.00 | 1:3 | 36.0 | Pin Hub | 303 Stainless Steel | |
| LHS-M6-90SH | 18.00 | 54.00 | 30.00 | 90.00 | 1:3 | 36.0 | Split Hub | 303 Stainless Steel | |
| LHS-M6-120 | 18.00 | 72.00 | 30.00 | 120.00 | 1:4 | 44.0 | Pin Hub | 303 Stainless Steel | |
| LHS-M6-120SH | 18.00 | 72.00 | 30.00 | 120.00 | 1:4 | 44.0 | Split Hub | 303 Stainless Steel | |
| LHX-M6-30 | 18.00 | 18.00 | 30.00 | 30.00 | 1:1 | 18.0 | Pin Hub | Stainless/Aluminum | |
| LHX-M6-30SH | 18.00 | 18.00 | 30.00 | 30.00 | 1:1 | 18.0 | Split Hub | Stainless/Aluminum | |
| LHX-M6-60 | 18.00 | 36.00 | 30.00 | 60.00 | 1:2 | 26.0 | Pin Hub | Stainless/Aluminum | |
| LHX-M6-60SH | 18.00 | 36.00 | 30.00 | 60.00 | 1:2 | 26.0 | Split Hub | Stainless/Aluminum | |
| LHX-M6-90 | 18.00 | 54.00 | 30.00 | 90.00 | 1:3 | 36.0 | Pin Hub | Stainless/Aluminum | |
| LHX-M6-90SH | 18.00 | 54.00 | 30.00 | 90.00 | 1:3 | 36.0 | Split Hub | Stainless/Aluminum | |
| LHX-M6-120 | 18.00 | 72.00 | 30.00 | 120.00 | 1:4 | 44.0 | Pin Hub | Stainless/Aluminum | |
| LHX-M6-120SH | 18.00 | 72.00 | 30.00 | 120.00 | 1:4 | 44.0 | Split Hub | Stainless/Aluminum | |
