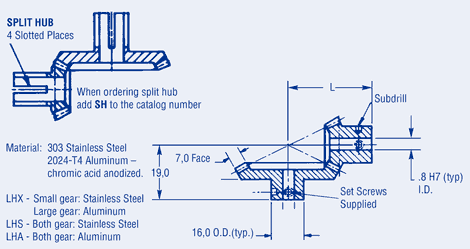

Miter and Bevel Gears 0,8 Module
|
|
| 20 Degree Pressure Angle, Din 7 tolerances. | |
- PDSG = Pitch Diameter Smallest Gear
- PDLG = Pitch Diameter Largest Gear
- TSG = Number of Teeth Smallest Gear
- TLG = Number of Teeth Largest Gear
- R = Ratio
- LC = Length to Center
- H = Hub
- M = Material
| Part | Pitch Diameter Smallest Gear | Pitch Diameter Largest Gear | Number of Teeth Smallest Gear | Number of Teeth Largest Gear | Ratio | Length to Center | Hub | Material | |
|---|---|---|---|---|---|---|---|---|---|
| Buy | View | 19.20000 | 24.00000 | ||||||
| LHA-M7-24 | 19.20 | 19.20 | 24.00 | 24.00 | 1:1 | 19.0 | Pin Hub | 2024-T4 Aluminum | |
| LHA-M7-24SH | 19.20 | 19.20 | 24.00 | 24.00 | 1:1 | 19.0 | Split Hub | 2024-T4 Aluminum | |
| LHA-M7-48 | 19.20 | 38.40 | 24.00 | 48.00 | 1:2 | 28.5 | Pin Hub | 2024-T4 Aluminum | |
| LHA-M7-48SH | 19.20 | 38.40 | 24.00 | 48.00 | 1:2 | 28.5 | Split Hub | 2024-T4 Aluminum | |
| LHA-M7-72 | 19.20 | 57.60 | 24.00 | 72.00 | 1:3 | 38.0 | Pin Hub | 2024-T4 Aluminum | |
| LHA-M7-72SH | 19.20 | 57.60 | 24.00 | 72.00 | 1:3 | 38.0 | Split Hub | 2024-T4 Aluminum | |
| LHA-M7-96 | 19.20 | 76.80 | 24.00 | 96.00 | 1:4 | 47.5 | Pin Hub | 2024-T4 Aluminum | |
| LHA-M7-96SH | 19.20 | 76.80 | 24.00 | 96.00 | 1:4 | 47.5 | Split Hub | 2024-T4 Aluminum | |
| LHS-M7-24 | 19.20 | 19.20 | 24.00 | 24.00 | 1:1 | 19.0 | Pin Hub | 303 Stainless Steel | |
| LHS-M7-24SH | 19.20 | 19.20 | 24.00 | 24.00 | 1:1 | 19.0 | Split Hub | 303 Stainless Steel | |
| LHS-M7-48 | 19.20 | 38.40 | 24.00 | 48.00 | 1:2 | 28.5 | Pin Hub | 303 Stainless Steel | |
| LHS-M7-48SH | 19.20 | 38.40 | 24.00 | 48.00 | 1:2 | 28.5 | Split Hub | 303 Stainless Steel | |
| LHS-M7-72 | 19.20 | 57.60 | 24.00 | 72.00 | 1:3 | 38.0 | Pin Hub | 303 Stainless Steel | |
| LHS-M7-72SH | 19.20 | 57.60 | 24.00 | 72.00 | 1:3 | 38.0 | Split Hub | 303 Stainless Steel | |
| LHS-M7-96 | 19.20 | 76.80 | 24.00 | 96.00 | 1:4 | 47.5 | Pin Hub | 303 Stainless Steel | |
| LHS-M7-96SH | 19.20 | 76.80 | 24.00 | 96.00 | 1:4 | 47.5 | Split Hub | 303 Stainless Steel | |
| LHX-M7-24 | 19.20 | 19.20 | 24.00 | 24.00 | 1:1 | 19.0 | Pin Hub | Stainless/Aluminuml | |
| LHX-M7-24SH | 19.20 | 19.20 | 24.00 | 24.00 | 1:1 | 19.0 | Split Hub | Stainless/Aluminuml | |
| LHX-M7-48 | 19.20 | 38.40 | 24.00 | 48.00 | 1:2 | 28.5 | Pin Hub | Stainless/Aluminuml | |
| LHX-M7-48SH | 19.20 | 38.40 | 24.00 | 48.00 | 1:2 | 28.5 | Split Hub | Stainless/Aluminuml | |
| LHX-M7-72 | 19.20 | 57.60 | 24.00 | 72.00 | 1:3 | 38.0 | Pin Hub | Stainless/Aluminuml | |
| LHX-M7-72SH | 19.20 | 57.60 | 24.00 | 72.00 | 1:3 | 38.0 | Split Hub | Stainless/Aluminuml | |
| LHX-M7-96 | 19.20 | 76.80 | 24.00 | 96.00 | 1:4 | 47.5 | Pin Hub | Stainless/Aluminuml | |
| LHX-M7-96SH | 19.20 | 76.80 | 24.00 | 96.00 | 1:4 | 47.5 | Split Hub | Stainless/Aluminuml | |
