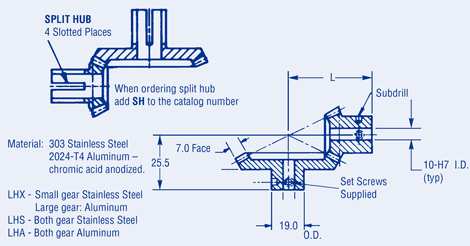

Miter and Bevel Gears 1,0 Module Pin Hub
|
|
| 20 degree pressure angle. DIN 7 tolerances. Aluminum gears anodized before gear cutting. | |
- MATER = Material Smallest Gear
- PD1 = Pitch Diameter Smallest Gear
- PD2 = Pitch Diameter Largest Gear
- T1 = Number of Teeth Smallest Gear
- T2 = Number of Teeth Largest Gear
- R= Ratio
- L = Length to Center
- H = Hub
| Part | Material Smallest Gear | Pitch Diameter Smallest Gear | Pitch Diameter Largest Gear | Number of Teeth Smallest Gear | Number of Teeth Largest Gear | Ratio | Length to Center | Hub | |
|---|---|---|---|---|---|---|---|---|---|
| Buy | View | 24.00000 | 24.00000 | ||||||
| LHA-M2-24 | 2024-T4 Aluminum | 24.00 | 24.00 | 24 | 24 | 1:1 | 25.5 | Pin Hub | |
| LHA-M2-24SH | 2024-T4 Aluminum | 24.00 | 24.00 | 24 | 24 | 1:1 | 25.5 | Split Hub | |
| LHA-M2-48 | 2024-T4 Aluminum | 24.00 | 48.00 | 24 | 48 | 1:2 | 38.0 | Pin Hub | |
| LHA-M2-48SH | 2024-T4 Aluminum | 24.00 | 48.00 | 24 | 48 | 1:2 | 38.0 | Split Hub | |
| LHA-M2-72 | 2024-T4 Aluminum | 24.00 | 72.00 | 24 | 72 | 1:3 | 51.0 | Pin Hub | |
| LHA-M2-72SH | 2024-T4 Aluminum | 24.00 | 72.00 | 24 | 72 | 1:3 | 51.0 | Split Hub | |
| LHS-M2-24 | 303 Stainless Steel | 24.00 | 24.00 | 24 | 24 | 1:1 | 25.5 | Pin Hub | |
| LHS-M2-24SH | 303 Stainless Steel | 24.00 | 24.00 | 24 | 24 | 1:1 | 25.5 | Split Hub | |
| LHS-M2-48 | 303 Stainless Steel | 24.00 | 48.00 | 24 | 48 | 1:2 | 38.0 | Pin Hub | |
| LHS-M2-48SH | 303 Stainless Steel | 24.00 | 48.00 | 24 | 48 | 1:2 | 38.0 | Split Hub | |
| LHS-M2-72 | 303 Stainless Steel | 24.00 | 72.00 | 24 | 72 | 1:3 | 51.0 | Pin Hub | |
| LHS-M2-72SH | 303 Stainless Steel | 24.00 | 72.00 | 24 | 72 | 1:3 | 51.0 | Split Hub | |
| LHX-M2-24 | Stainless Steel/Aluminum | 24.00 | 24.00 | 24 | 24 | 1:1 | 25.5 | Pin Hub | |
| LHX-M2-24SH | Stainless Steel/Aluminum | 24.00 | 24.00 | 24 | 24 | 1:1 | 25.5 | Split Hub | |
| LHX-M2-48 | Stainless Steel/Aluminum | 24.00 | 48.00 | 24 | 48 | 1:2 | 38.0 | Pin Hub | |
| LHX-M2-48SH | Stainless Steel/Aluminum | 24.00 | 48.00 | 24 | 48 | 1:2 | 38.0 | Split Hub | |
| LHX-M2-72 | Stainless Steel/Aluminum | 24.00 | 72.00 | 24 | 72 | 1:3 | 51.0 | Pin Hub | |
| LHX-M2-72SH | Stainless Steel/Aluminum | 24.00 | 72.00 | 24 | 72 | 1:3 | 51.0 | Split Hub | |
