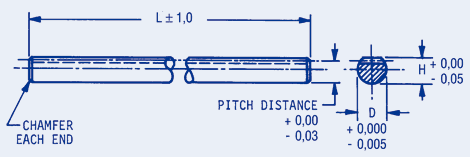

Racks - Machined Metric Round Less Mounting Holes
|
|
| Material: 416 Stainless Steel Pressure Angle: 20 degrees Manufactured to DIN7 tolerances | |
- MOD = Module
- L = Length
- H = Height
- D = Diameter
- PD = Pitch Distance
- PA= Pressure Angle
| Part | Module | Length | Height | Diameter | Pitch Distance | Pressure Angle | |
|---|---|---|---|---|---|---|---|
| Buy | View | 20 | |||||
| KKS-M3-1 | 1 | 450 | 12.19 | 12.974 | 11.19 | 20 | |
| KKS-M3-2 | 0.8 | 450 | 8.64 | 9.974 | 7.84 | 20 | |
| KKS-M3-3 | 0.6 | 450 | 5.59 | 5.974 | 4.99 | 20 | |
| KKS-M3-4 | 0.5 | 450 | 5.59 | 5.974 | 5.09 | 20 | |
| KKS-M3-5 | 0.4 | 275 | 5.59 | 5.974 | 5.19 | 20 | |
| KKS-M3-6 | 0.3 | 275 | 3.96 | 4.755 | 3.66 | 20 | |
| KKS-M3-7 | 0.25 | 275 | 3.96 | 4.755 | 3.71 | 20 | |
