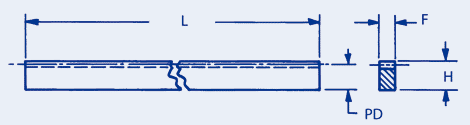

Racks-Machined Inch Rectangular Less Mounting Holes Nylon
|
|
| Material: Nylon Pressure Angle: 20 degree Quality AGMA 8 Due to the instability of Nylon material Nordex guarantees dimensions at the time of cutting only. | |
- P = Pitch
- L = Length
- H = Height
- F = Face
- PD = Pitch Distance
- LP = Linear Pitch
| Part | Pitch | Length | Height | Face | Pitch Distance | Linear Pitch | |
|---|---|---|---|---|---|---|---|
| Buy | View | 18 inches | |||||
| KJN-A1-1 | 24 | 18 inches | .480 | .230 | .438 | .1309 | |
| KJN-A1-2 | 32 | 18 inches | .480 | .230 | .449 | .0982 | |
| KJN-A1-3 | 48 | 18 inches | .480 | .230 | .459 | .0654 | |
| KJN-A1-4 | 64 | 18 inches | .480 | .230 | .464 | .0491 | |
| KJN-A1-5 | 72 | 18 inches | .355 | .167 | .341 | .0436 | |
| KJN-A1-6 | 96 | 18 inches | .355 | .167 | .344 | .0327 | |
| KJN-A1-7 | 120 | 18 inches | .355 | .167 | .347 | .0262 | |
