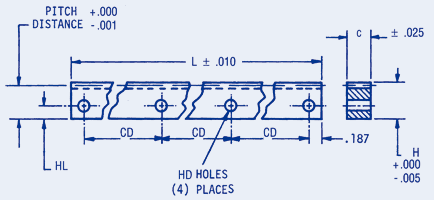

Racks, Machined Inch Rectangular With Mounting Holes	P= Pitch L = Length H = Height F = Face PD = Pitch Distance CD = Center Distance HD = Hole Diameter HL = Hole Location M= Material
AGMA Quality 10, 20 degree pressure angle

P= Pitch
L = Length
H = Height
F = Face
PD = Pitch Distance
CD = Center Distance
HD = Hole Diameter
HL = Hole Location
M= Material

Part		Pitch	Length	Height	Face	Pitch Distance	Center Distance	Hole Diameter	Hole Location	Material
Buy	View
	KHA-C2-76	24	10	.480	.230	.4383	3.208	.147	.218	Aluminum
	KHA-D2-101	32	10	.480	.230	.4487	3.208	.147	.218	Aluminum
	KHA-E2-137	48	9	.480	.230	.4592	2.875	.147	.218	Aluminum
	KHA-F2-142	64	7	.480	.230	.4644	2.208	.147	.218	Aluminum
	KHA-G2-114	72	5	.355	.167	.3411	1.541	.120	.156	Aluminum
	KHA-H2-127	80	5	.355	.167	.3425	1.541	.120	.156	Aluminum
	KHA-J2-91	96	3	.355	.167	.3446	.875	.120	.156	Aluminum
	KHA-K2-114	120	3	.355	.167	.3467	.875	.120	.156	Aluminum
	KHS-C2-76	24	10	.480	.230	.4383	3.208	.147	.218	Stainless
	KHS-D2-101	32	10	.480	.230	.4487	3.208	.147	.218	Stainless
	KHS-E2-137	48	9	.480	.230	.4592	2.875	.147	.218	Stainless
	KHS-F2-142	64	7	.480	.230	.4644	2.208	.147	.218	Stainless
	KHS-G2-114	72	5	.355	.167	.3411	1.541	.120	.156	Stainless
	KHS-H2-127	80	5	.355	.167	.3425	1.541	.120	.156	Stainless
	KHS-J2-91	96	3	.355	.167	.3446	.875	.120	.156	Stainless
	KHS-K2-114	120	3	.355	.167	.3467	.875	.120	.156	Stainless
