Racks-Fine Pitch Metric Rectangular Less Mounting Holes

Racks-Fine Pitch Metric Rectangular Less Mounting Holes

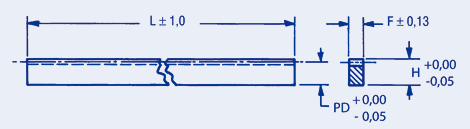

  • MOD = Module
  • L = Length
  • H = Height
  • F = Face
  • PD = Pitch Distance
Material: 416 Stainless Steel Pressure Angle: 20 degrees Manufactured to DIN7 tolerances
  • MOD = Module
  • L = Length
  • H = Height
  • F = Face
  • PD = Pitch Distance
Part Module Length Height Face Pitch Distance
Buy View
KJS-M4-137 1 450 12.19 5.84 11.19
KJS-M4-183 0.8 450 12.19 5.84 11.39
KJS-M4-224 0.5 450 12.19 5.84 11.69
KJS-M4-252 0.4 275 12.19 5.84 11.79
KJS-M4-275 0.6 450 12.19 5.84 11.59
KJS-M4-336 0.3 275 9.02 4.24 8.72
KJS-M4-420 0.25 275 9.02 4.24 8.77
