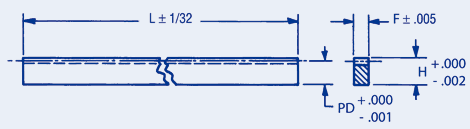

Racks-Fine Pitch Inch Rectangular Less Mounting Holes
|
|
| Material: 416 Stainless Steel Pressure angle: 20 degrees AGMA Quality 10 | |
- P= Pitch
- L = Length
- H = Height
- F = Face
- PD = Pitch Distance
- LP = Linear Pitch
| Part | Pitch | Length | Height | Face | Pitch Distance | Linear Pitch | |
|---|---|---|---|---|---|---|---|
| Buy | View | ||||||
| KJS-C3-137 | 24 | 18 | .480 | .230 | .438 | .1309 | |
| KJS-D3-183 | 32 | 18 | .480 | .230 | .449 | .0982 | |
| KJS-E3-275 | 48 | 18 | .480 | .230 | .459 | .0654 | |
| KJS-F3-224 | 64 | 11 | .480 | .230 | .464 | .0491 | |
| KJS-G3-252 | 72 | 11 | .355 | .167 | .341 | .0436 | |
| KJS-J3-336 | 96 | 11 | .355 | .167 | .344 | .0327 | |
| KJS-K3-420 | 120 | 11 | .355 | .167 | .347 | .0262 | |
