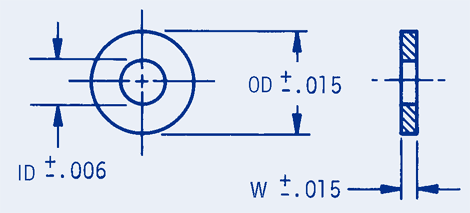

Nylon Washer, Inch
|
|
- ID = Inside Diameter
- OD = Outside Diameter
- W = Width
- S= Screw Size
- M= Material
| Part | Inside Diameter | Outside Diameter | Width | Screw Size | Material | |
|---|---|---|---|---|---|---|
| Buy | View | Molded Nylon (Natural) | ||||
| DPN-A1-1 | .115 | .281 | .047 | #4 | Molded Nylon (Natural) | |
| DPN-A1-2 | .140 | .312 | .047 | #6 | Molded Nylon (Natural) | |
| DPN-A1-3 | .170 | .375 | .062 | #8 | Molded Nylon (Natural) | |
| DPN-A1-4 | .200 | .437 | .062 | #10 | Molded Nylon (Natural) | |
| DPN-A1-5 | .260 | .562 | .062 | #1/4 | Molded Nylon (Natural) | |
