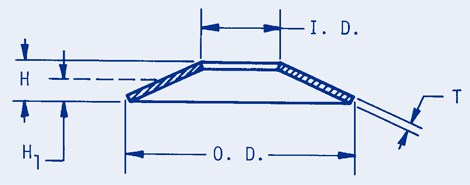

Belleville Spring Washer, Inch
|
|
| Material: 302 Stainless Steel (spring tempered) | |
- H = Height
- T = Thickness
- OD = Outside Diameter
- ID = Inside Diameter
- H1 = Height 1
| Part | Height | Thickness | Outside Diameter | Inside Diameter | Height 1 | |
|---|---|---|---|---|---|---|
| Buy | View | |||||
| DNS-A4-1 | .015 | .010 | .187 | .093 | .012 | |
| DNS-A4-2 | .020 | .013 | .250 | .125 | .017 | |
| DNS-A4-3 | .025 | .016 | .312 | .156 | .021 | |
| DNS-A4-4 | .030 | .020 | .375 | .190 | .025 | |
| DNS-A4-5 | .038 | .025 | .500 | .255 | .031 | |
| DNS-A4-6 | .048 | .032 | .625 | .317 | .040 | |
| DNS-A4-7 | .059 | .040 | .750 | .380 | .049 | |
| DNS-A4-8 | .075 | .050 | 1.000 | .505 | .062 | |
