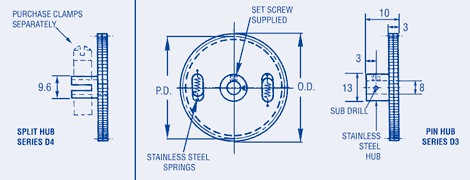

Anti-Backlash Gear - compact design 0,5 module, 8mm bore
|
|
| 20 Degree Pressure Angle. DIN 7 gears supplied. When ordering Din 6 gears - add Din 6 to the catalog number. Anodize may be grey or black at Nordex option. To order split hub add D4 in place of D3 in catalog number. | |
- T = Teeth
- PD = Pitch Diameter
- OD = Outside Diameter
- M = Material
| Part | Teeth | Pitch Diameter | Outside Diameter | Material | |
|---|---|---|---|---|---|
| Buy | View | ||||
| LFA-D3-65 | 65 | 32,50 | 33,5 | 2024-T4 Aluminum | |
| LFA-D3-70 | 70 | 35,00 | 36,0 | 2024-T4 Aluminum | |
| LFA-D3-75 | 75 | 37,50 | 38,5 | 2024-T4 Aluminum | |
| LFA-D3-80 | 80 | 40,00 | 41,0 | 2024-T4 Aluminum | |
| LFA-D3-85 | 85 | 42,50 | 43,5 | 2024-T4 Aluminum | |
| LFA-D3-90 | 90 | 45,00 | 46,0 | 2024-T4 Aluminum | |
| LFA-D3-95 | 95 | 47,50 | 48,5 | 2024-T4 Aluminum | |
| LFA-D3-100 | 100 | 50,00 | 51,0 | 2024-T4 Aluminum | |
| LFA-D3-105 | 105 | 52,50 | 53,5 | 2024-T4 Aluminum | |
| LFA-D3-110 | 110 | 55,00 | 56,0 | 2024-T4 Aluminum | |
| LFA-D3-115 | 115 | 57,50 | 58,5 | 2024-T4 Aluminum | |
| LFA-D3-120 | 120 | 60,00 | 61,0 | 2024-T4 Aluminum | |
| LFA-D3-125 | 125 | 62,50 | 63,5 | 2024-T4 Aluminum | |
| LFA-D3-130 | 130 | 65,00 | 66,0 | 2024-T4 Aluminum | |
| LFA-D3-135 | 135 | 67,50 | 68,5 | 2024-T4 Aluminum | |
| LFA-D3-140 | 140 | 70,00 | 71,0 | 2024-T4 Aluminum | |
| LFA-D3-145 | 145 | 72,50 | 73,5 | 2024-T4 Aluminum | |
| LFA-D3-150 | 150 | 75,00 | 76,0 | 2024-T4 Aluminum | |
| LFA-D3-160 | 160 | 81,00 | 82,0 | 2024-T4 Aluminum | |
| LFA-D3-170 | 170 | 86,00 | 87,0 | 2024-T4 Aluminum | |
| LFS-D3-65 | 65 | 32,50 | 33,5 | 303 Stainless Steel | |
| LFS-D3-70 | 70 | 35,00 | 36,0 | 303 Stainless Steel | |
| LFS-D3-75 | 75 | 37,50 | 38,5 | 303 Stainless Steel | |
| LFS-D3-80 | 80 | 40,00 | 41,0 | 303 Stainless Steel | |
| LFS-D3-85 | 85 | 42,50 | 43,5 | 303 Stainless Steel | |
| LFS-D3-90 | 90 | 45,00 | 46,0 | 303 Stainless Steel | |
| LFS-D3-95 | 95 | 47,50 | 48,5 | 303 Stainless Steel | |
| LFS-D3-100 | 100 | 50,00 | 51,0 | 303 Stainless Steel | |
| LFS-D3-105 | 105 | 52,50 | 53,5 | 303 Stainless Steel | |
| LFS-D3-110 | 110 | 55,00 | 56,0 | 303 Stainless Steel | |
| LFS-D3-115 | 115 | 57,50 | 58,5 | 303 Stainless Steel | |
| LFS-D3-120 | 120 | 60,00 | 61,0 | 303 Stainless Steel | |
| LFS-D3-125 | 125 | 62,50 | 63,5 | 303 Stainless Steel | |
| LFS-D3-130 | 130 | 65,00 | 66,0 | 303 Stainless Steel | |
| LFS-D3-135 | 135 | 67,50 | 68,5 | 303 Stainless Steel | |
| LFS-D3-140 | 140 | 70,00 | 71,0 | 303 Stainless Steel | |
| LFS-D3-145 | 145 | 72,50 | 73,5 | 303 Stainless Steel | |
| LFS-D3-150 | 150 | 75,00 | 76,0 | 303 Stainless Steel | |
| LFS-D3-160 | 160 | 81,00 | 82,0 | 303 Stainless Steel | |
| LFS-D3-170 | 170 | 86,00 | 87,0 | 303 Stainless Steel | |
