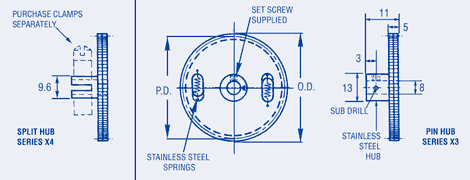

Anti-Backlash Gear - compact design 1,0 module, 8mm bore
|
|
| 20 Degree Pressure Angle. DIN 7 gears supplied. When ordering Din 6 gears - add Din 6 to the catalog number. Anodize may be grey or black at Nordex option. To order split hub add X4 in place of X3 in catalog number. | |
- T = TEETH
- PD = Pitch Diameter
- OD = Outside Diameter
- M = Material
| Part | TEETH | Pitch Diameter | Outside Diameter | Material | |
|---|---|---|---|---|---|
| Buy | View | ||||
| LFA-X3-30 | 30 | 30,00 | 32,0 | 2024-T4 Aluminum | |
| LFA-X3-32 | 32 | 32,00 | 34,0 | 2024-T4 Aluminum | |
| LFA-X3-35 | 35 | 35,00 | 37,0 | 2024-T4 Aluminum | |
| LFA-X3-36 | 36 | 36,00 | 38,0 | 2024-T4 Aluminum | |
| LFA-X3-38 | 38 | 38,00 | 40,0 | 2024-T4 Aluminum | |
| LFA-X3-40 | 40 | 40,00 | 42,0 | 2024-T4 Aluminum | |
| LFA-X3-42 | 42 | 42,00 | 44,0 | 2024-T4 Aluminum | |
| LFA-X3-44 | 44 | 44,00 | 46,0 | 2024-T4 Aluminum | |
| LFA-X3-45 | 45 | 45,00 | 47,0 | 2024-T4 Aluminum | |
| LFA-X3-46 | 46 | 46,00 | 48,0 | 2024-T4 Aluminum | |
| LFA-X3-48 | 48 | 48,00 | 50,0 | 2024-T4 Aluminum | |
| LFA-X3-50 | 50 | 50,00 | 52,0 | 2024-T4 Aluminum | |
| LFA-X3-52 | 52 | 52,00 | 54,0 | 2024-T4 Aluminum | |
| LFA-X3-54 | 54 | 54,00 | 56,0 | 2024-T4 Aluminum | |
| LFA-X3-55 | 55 | 55,00 | 57,0 | 2024-T4 Aluminum | |
| LFA-X3-56 | 56 | 56,00 | 58,0 | 2024-T4 Aluminum | |
| LFA-X3-58 | 58 | 58,00 | 60,0 | 2024-T4 Aluminum | |
| LFA-X3-60 | 60 | 60,00 | 62,0 | 2024-T4 Aluminum | |
| LFA-X3-62 | 62 | 62,00 | 64,0 | 2024-T4 Aluminum | |
| LFA-X3-65 | 65 | 65,00 | 67,0 | 2024-T4 Aluminum | |
| LFA-X3-66 | 66 | 66,00 | 68,0 | 2024-T4 Aluminum | |
| LFA-X3-70 | 70 | 70,00 | 72,0 | 2024-T4 Aluminum | |
| LFA-X3-72 | 72 | 72,00 | 74,0 | 2024-T4 Aluminum | |
| LFA-X3-80 | 80 | 80,00 | 82,0 | 2024-T4 Aluminum | |
| LFA-X3-90 | 90 | 90,00 | 92,0 | 2024-T4 Aluminum | |
| LFA-X3-100 | 100 | 100,00 | 102,0 | 2024-T4 Aluminum | |
| LFA-X3-120 | 120 | 120,00 | 122,0 | 2024-T4 Aluminum | |
| LFS-X3-30 | 30 | 30,00 | 32,0 | 303 Stainless Steel | |
| LFS-X3-32 | 32 | 32,00 | 34,0 | 303 Stainless Steel | |
| LFS-X3-35 | 35 | 35,00 | 37,0 | 303 Stainless Steel | |
| LFS-X3-36 | 36 | 36,00 | 38,0 | 303 Stainless Steel | |
| LFS-X3-38 | 38 | 38,00 | 40,0 | 303 Stainless Steel | |
| LFS-X3-40 | 40 | 40,00 | 42,0 | 303 Stainless Steel | |
| LFS-X3-42 | 42 | 42,00 | 44,0 | 303 Stainless Steel | |
| LFS-X3-44 | 44 | 44,00 | 46,0 | 303 Stainless Steel | |
| LFS-X3-45 | 45 | 45,00 | 47,0 | 303 Stainless Steel | |
| LFS-X3-46 | 46 | 46,00 | 48,0 | 303 Stainless Steel | |
| LFS-X3-48 | 48 | 48,00 | 50,0 | 303 Stainless Steel | |
| LFS-X3-50 | 50 | 50,00 | 52,0 | 303 Stainless Steel | |
| LFS-X3-52 | 52 | 52,00 | 54,0 | 303 Stainless Steel | |
| LFS-X3-54 | 54 | 54,00 | 56,0 | 303 Stainless Steel | |
| LFS-X3-55 | 55 | 55,00 | 57,0 | 303 Stainless Steel | |
| LFS-X3-56 | 56 | 56,00 | 58,0 | 303 Stainless Steel | |
| LFS-X3-58 | 58 | 58,00 | 60,0 | 303 Stainless Steel | |
| LFS-X3-60 | 60 | 60,00 | 62,0 | 303 Stainless Steel | |
| LFS-X3-62 | 62 | 62,00 | 64,0 | 303 Stainless Steel | |
| LFS-X3-65 | 65 | 65,00 | 67,0 | 303 Stainless Steel | |
| LFS-X3-66 | 66 | 66,00 | 68,0 | 303 Stainless Steel | |
| LFS-X3-70 | 70 | 70,00 | 72,0 | 303 Stainless Steel | |
| LFS-X3-72 | 72 | 72,00 | 74,0 | 303 Stainless Steel | |
| LFS-X3-80 | 80 | 80,00 | 82,0 | 303 Stainless Steel | |
| LFS-X3-90 | 90 | 90,00 | 92,0 | 303 Stainless Steel | |
| LFS-X3-100 | 100 | 100,00 | 102,0 | 303 Stainless Steel | |
| LFS-X3-120 | 120 | 120,00 | 122,0 | 303 Stainless Steel | |
