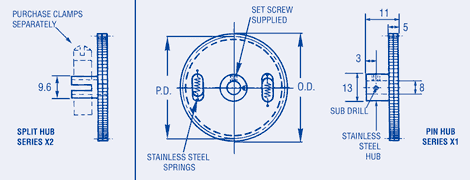

Anti-Backlash Gear - compact design 0,8 module, 8mm bore
|
|
| 20 Degree Pressure Angle. DIN 7 gears supplied. When ordering Din 6 gears - add Din 6 to the catalog number. Anodize may be grey or black at Nordex option. To order split hub add X2 in place of X1 in catalog number. | |
- T = Teeth
- PD = Pitch Diameter
- OD = Outside Diameter
- M = Material
| Part | Teeth | Pitch Diameter | Outside Diameter | Material | |
|---|---|---|---|---|---|
| Buy | View | ||||
| LFA-X1-30 | 30 | 24,00 | 25,6 | 2024-T4 Aluminum | |
| LFA-X1-32 | 32 | 25,60 | 27,2 | 2024-T4 Aluminum | |
| LFA-X1-35 | 35 | 28,00 | 29,6 | 2024-T4 Aluminum | |
| LFA-X1-36 | 36 | 28,80 | 30,4 | 2024-T4 Aluminum | |
| LFA-X1-38 | 38 | 30,40 | 32,0 | 2024-T4 Aluminum | |
| LFA-X1-40 | 40 | 32,00 | 33,6 | 2024-T4 Aluminum | |
| LFA-X1-42 | 42 | 33,60 | 35,2 | 2024-T4 Aluminum | |
| LFA-X1-44 | 44 | 35,20 | 36,8 | 2024-T4 Aluminum | |
| LFA-X1-45 | 45 | 36,00 | 37,6 | 2024-T4 Aluminum | |
| LFA-X1-46 | 46 | 36,80 | 38,4 | 2024-T4 Aluminum | |
| LFA-X1-48 | 48 | 38,40 | 40,0 | 2024-T4 Aluminum | |
| LFA-X1-50 | 50 | 40,00 | 41,6 | 2024-T4 Aluminum | |
| LFA-X1-52 | 52 | 41,60 | 43,2 | 2024-T4 Aluminum | |
| LFA-X1-54 | 54 | 43,20 | 44,8 | 2024-T4 Aluminum | |
| LFA-X1-55 | 55 | 44,00 | 45,6 | 2024-T4 Aluminum | |
| LFA-X1-56 | 56 | 44,80 | 46,4 | 2024-T4 Aluminum | |
| LFA-X1-58 | 58 | 46,40 | 48,0 | 2024-T4 Aluminum | |
| LFA-X1-60 | 60 | 48,00 | 49,6 | 2024-T4 Aluminum | |
| LFA-X1-62 | 62 | 49,60 | 51,2 | 2024-T4 Aluminum | |
| LFA-X1-65 | 65 | 52,00 | 53,6 | 2024-T4 Aluminum | |
| LFA-X1-66 | 66 | 52,80 | 54,4 | 2024-T4 Aluminum | |
| LFA-X1-70 | 70 | 56,00 | 57,6 | 2024-T4 Aluminum | |
| LFA-X1-72 | 72 | 57,60 | 59,2 | 2024-T4 Aluminum | |
| LFA-X1-80 | 80 | 64,00 | 65,6 | 2024-T4 Aluminum | |
| LFA-X1-90 | 90 | 72,00 | 73,6 | 2024-T4 Aluminum | |
| LFA-X1-100 | 100 | 80,00 | 81,6 | 2024-T4 Aluminum | |
| LFA-X1-120 | 120 | 96,00 | 97,6 | 2024-T4 Aluminum | |
| LFS-X1-30 | 30 | 24,00 | 25,6 | 303 Stainless Steel | |
| LFS-X1-32 | 32 | 25,60 | 27,2 | 303 Stainless Steel | |
| LFS-X1-35 | 35 | 28,00 | 29,6 | 303 Stainless Steel | |
| LFS-X1-36 | 36 | 28,80 | 30,4 | 303 Stainless Steel | |
| LFS-X1-38 | 38 | 30,40 | 32,0 | 303 Stainless Steel | |
| LFS-X1-40 | 40 | 32,00 | 33,6 | 303 Stainless Steel | |
| LFS-X1-42 | 42 | 33,60 | 35,2 | 303 Stainless Steel | |
| LFS-X1-44 | 44 | 35,20 | 36,8 | 303 Stainless Steel | |
| LFS-X1-45 | 45 | 36,00 | 37,6 | 303 Stainless Steel | |
| LFS-X1-46 | 46 | 36,80 | 38,4 | 303 Stainless Steel | |
| LFS-X1-48 | 48 | 38,40 | 40,0 | 303 Stainless Steel | |
| LFS-X1-52 | 52 | 41,60 | 43,2 | 303 Stainless Steel | |
| LFS-X1-54 | 54 | 43,20 | 44,8 | 303 Stainless Steel | |
| LFS-X1-55 | 55 | 44,00 | 45,6 | 303 Stainless Steel | |
| LFS-X1-56 | 56 | 44,80 | 46,4 | 303 Stainless Steel | |
| LFS-X1-58 | 58 | 46,40 | 48,0 | 303 Stainless Steel | |
| LFS-X1-60 | 60 | 48,00 | 49,6 | 303 Stainless Steel | |
| LFS-X1-62 | 62 | 49,60 | 51,2 | 303 Stainless Steel | |
| LFS-X1-65 | 65 | 52,00 | 53,6 | 303 Stainless Steel | |
| LFS-X1-66 | 66 | 52,80 | 54,4 | 303 Stainless Steel | |
| LFS-X1-72 | 72 | 57,60 | 59,2 | 303 Stainless Steel | |
| LFS-X1-80 | 80 | 64,00 | 65,6 | 303 Stainless Steel | |
| LFS-X1-90 | 90 | 72,00 | 73,6 | 303 Stainless Steel | |
| LFS-X1-100 | 100 | 80,00 | 81,6 | 303 Stainless Steel | |
| LFS-X1-120 | 120 | 96,00 | 97,6 | 303 Stainless Steel | |
