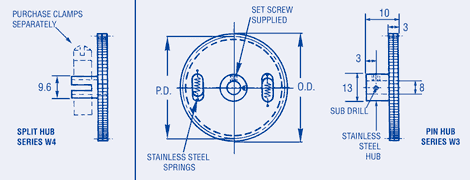

Anti-Backlash Gear - compact design 0,6 module, 8mm bore
|
|
| 20 Degree Pressure Angle. DIN 7 gears supplied. When ordering Din 6 gears - add Din 6 to the catalog number. Anodize may be grey or black at Nordex option. To order split hub add W4 in place of W3 in catalog number. | |
- T = Teeth
- PD = Pitch Diameter
- OD = Outside Diameter
- M = Material
| Part | Teeth | Pitch Diameter | Outside Diameter | Material | |
|---|---|---|---|---|---|
| Buy | View | ||||
| LFA-W3-65 | 65 | 39,00 | 40,2 | 2024-T4 Aluminum | |
| LFA-W3-70 | 70 | 42,00 | 43,2 | 2024-T4 Aluminum | |
| LFA-W3-75 | 75 | 45,00 | 46,2 | 2024-T4 Aluminum | |
| LFA-W3-80 | 80 | 48,00 | 49,2 | 2024-T4 Aluminum | |
| LFA-W3-85 | 85 | 51,00 | 52,2 | 2024-T4 Aluminum | |
| LFA-W3-90 | 90 | 54,00 | 55,2 | 2024-T4 Aluminum | |
| LFA-W3-95 | 95 | 57,00 | 58,2 | 2024-T4 Aluminum | |
| LFA-W3-100 | 100 | 60,00 | 61,2 | 2024-T4 Aluminum | |
| LFA-W3-105 | 105 | 63,00 | 64,2 | 2024-T4 Aluminum | |
| LFA-W3-110 | 110 | 66,00 | 67,2 | 2024-T4 Aluminum | |
| LFA-W3-115 | 115 | 69,00 | 70,2 | 2024-T4 Aluminum | |
| LFA-W3-120 | 120 | 72,00 | 73,2 | 2024-T4 Aluminum | |
| LFA-W3-125 | 125 | 75,00 | 76,2 | 2024-T4 Aluminum | |
| LFA-W3-130 | 130 | 78,00 | 79,2 | 2024-T4 Aluminum | |
| LFA-W3-135 | 135 | 81,00 | 82,2 | 2024-T4 Aluminum | |
| LFA-W3-140 | 140 | 84,00 | 85,2 | 2024-T4 Aluminum | |
| LFA-W3-145 | 145 | 87,00 | 88,2 | 2024-T4 Aluminum | |
| LFA-W3-150 | 150 | 90,00 | 91,2 | 2024-T4 Aluminum | |
| LFA-W3-160 | 160 | 96,00 | 97,2 | 2024-T4 Aluminum | |
| LFA-W3-170 | 170 | 102,00 | 103,2 | 2024-T4 Aluminum | |
| LFS-W3-65 | 65 | 39,00 | 40,2 | 303 Stainless Steel | |
| LFS-W3-70 | 70 | 42,00 | 43,2 | 303 Stainless Steel | |
| LFS-W3-75 | 75 | 45,00 | 46,2 | 303 Stainless Steel | |
| LFS-W3-80 | 80 | 48,00 | 49,2 | 303 Stainless Steel | |
| LFS-W3-85 | 85 | 51,00 | 52,2 | 303 Stainless Steel | |
| LFS-W3-90 | 90 | 54,00 | 55,2 | 303 Stainless Steel | |
| LFS-W3-95 | 95 | 57,00 | 58,2 | 303 Stainless Steel | |
| LFS-W3-100 | 100 | 60,00 | 61,2 | 303 Stainless Steel | |
| LFS-W3-105 | 105 | 63,00 | 64,2 | 303 Stainless Steel | |
| LFS-W3-110 | 110 | 66,00 | 67,2 | 303 Stainless Steel | |
| LFS-W3-115 | 115 | 69,00 | 70,2 | 303 Stainless Steel | |
| LFS-W3-120 | 120 | 72,00 | 73,2 | 303 Stainless Steel | |
| LFS-W3-125 | 125 | 75,00 | 76,2 | 303 Stainless Steel | |
| LFS-W3-130 | 130 | 78,00 | 79,2 | 303 Stainless Steel | |
| LFS-W3-135 | 135 | 81,00 | 82,2 | 303 Stainless Steel | |
| LFS-W3-140 | 140 | 84,00 | 85,2 | 303 Stainless Steel | |
| LFS-W3-145 | 145 | 87,00 | 88,2 | 303 Stainless Steel | |
| LFS-W3-150 | 150 | 90,00 | 91,2 | 303 Stainless Steel | |
| LFS-W3-160 | 160 | 96,00 | 97,2 | 303 Stainless Steel | |
| LFS-W3-170 | 170 | 102,00 | 103,2 | 303 Stainless Steel | |
