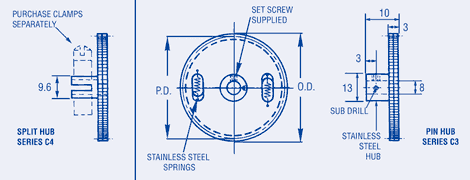

Anti-Backlash Gear - compact design 0,4 module, 8mm bore
|
|
| 20 Degree Pressure Angle. DIN 7 gears supplied. When ordering Din 6 gears - add Din 6 to the catalog number. Anodize may be grey or black at Nordex option. To order split hub add C4 in place of C3 in catalog number. | |
- T = Teeth
- PD = Pitch Diameter
- OD = Outside Diameter
- M = Material
| Part | Teeth | Pitch Diameter | Outside Diameter | Material | |
|---|---|---|---|---|---|
| Buy | View | ||||
| LFA-C3-60 | 60 | 24,00 | 24,8 | 2024-T4 Aluminum | |
| LFA-C3-70 | 70 | 28,00 | 28,8 | 2024-T4 Aluminum | |
| LFA-C3-75 | 75 | 30,00 | 30,8 | 2024-T4 Aluminum | |
| LFA-C3-80 | 80 | 32,00 | 32,8 | 2024-T4 Aluminum | |
| LFA-C3-85 | 85 | 34,00 | 34,8 | 2024-T4 Aluminum | |
| LFA-C3-90 | 90 | 36,00 | 36,8 | 2024-T4 Aluminum | |
| LFA-C3-95 | 95 | 38,00 | 38,8 | 2024-T4 Aluminum | |
| LFA-C3-100 | 100 | 40,00 | 40,8 | 2024-T4 Aluminum | |
| LFA-C3-105 | 105 | 42,00 | 42,8 | 2024-T4 Aluminum | |
| LFA-C3-110 | 110 | 44,00 | 44,8 | 2024-T4 Aluminum | |
| LFA-C3-115 | 115 | 46,00 | 46,8 | 2024-T4 Aluminum | |
| LFA-C3-120 | 120 | 48,00 | 48,8 | 2024-T4 Aluminum | |
| LFA-C3-125 | 125 | 50,00 | 50,8 | 2024-T4 Aluminum | |
| LFA-C3-130 | 130 | 52,00 | 52,8 | 2024-T4 Aluminum | |
| LFA-C3-135 | 135 | 54,00 | 54,8 | 2024-T4 Aluminum | |
| LFA-C3-140 | 140 | 56,00 | 56,8 | 2024-T4 Aluminum | |
| LFA-C3-145 | 145 | 58,00 | 58,8 | 2024-T4 Aluminum | |
| LFA-C3-150 | 150 | 60,00 | 60,8 | 2024-T4 Aluminum | |
| LFA-C3-160 | 160 | 64,00 | 64,8 | 2024-T4 Aluminum | |
| LFA-C3-170 | 170 | 68,00 | 68,8 | 2024-T4 Aluminum | |
| LFA-C3-180 | 180 | 72,00 | 72,8 | 2024-T4 Aluminum | |
| LFA-C3-190 | 190 | 76,00 | 76,8 | 2024-T4 Aluminum | |
| LFA-C3-200 | 200 | 80.00 | 80,8 | 2024-T4 Aluminum | |
| LFA-C3-220 | 220 | 88,00 | 88,8 | 2024-T4 Aluminum | |
| LFS-C3-60 | 60 | 24,00 | 24,8 | 303 Stainless Steel | |
| LFS-C3-70 | 70 | 28,00 | 28,8 | 303 Stainless Steel | |
| LFS-C3-75 | 75 | 30,00 | 30,8 | 303 Stainless Steel | |
| LFS-C3-80 | 80 | 32,00 | 32,8 | 303 Stainless Steel | |
| LFS-C3-85 | 85 | 34,00 | 34,8 | 303 Stainless Steel | |
| LFS-C3-90 | 90 | 36,00 | 36,8 | 303 Stainless Steel | |
| LFS-C3-95 | 95 | 38,00 | 38,8 | 303 Stainless Steel | |
| LFS-C3-100 | 100 | 40,00 | 40,8 | 303 Stainless Steel | |
| LFS-C3-105 | 105 | 42,00 | 42,8 | 303 Stainless Steel | |
| LFS-C3-110 | 110 | 44,00 | 44,8 | 303 Stainless Steel | |
| LFS-C3-115 | 115 | 46,00 | 46,8 | 303 Stainless Steel | |
| LFS-C3-120 | 120 | 48,00 | 48,8 | 303 Stainless Steel | |
| LFS-C3-125 | 125 | 50,00 | 50,8 | 303 Stainless Steel | |
| LFS-C3-130 | 130 | 52,00 | 52,8 | 303 Stainless Steel | |
| LFS-C3-135 | 135 | 54,00 | 54,8 | 303 Stainless Steel | |
| LFS-C3-140 | 140 | 56,00 | 56,8 | 303 Stainless Steel | |
| LFS-C3-145 | 145 | 58,00 | 58,8 | 303 Stainless Steel | |
| LFS-C3-150 | 150 | 60,00 | 60,8 | 303 Stainless Steel | |
| LFS-C3-160 | 160 | 64,00 | 64,8 | 303 Stainless Steel | |
| LFS-C3-170 | 170 | 68,00 | 68,8 | 303 Stainless Steel | |
| LFS-C3-180 | 180 | 72,00 | 72,8 | 303 Stainless Steel | |
| LFS-C3-190 | 190 | 76,00 | 76,8 | 303 Stainless Steel | |
| LFS-C3-200 | 200 | 80,00 | 80,8 | 303 Stainless Steel | |
| LFS-C3-220 | 220 | 88,00 | 88,8 | 303 Stainless Steel | |
