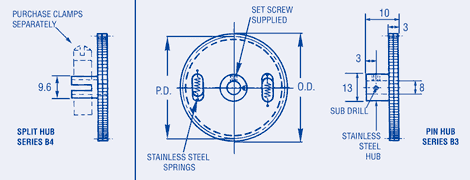

Anti-Backlash Gear - compact design 0,3 module, 8mm bore
|
|
| 20 Degree Pressure Angle. DIN 7 gears supplied. When ordering Din 6 gears - add Din 6 to the catalog number. Anodize may be grey or black at Nordex option. To order split hub add B4 in place of B3 in catalog number. | |
- T = Teeth
- PD = Pitch Diameter
- OD = Outside Diameter
- M = Material
| Part | Teeth | Pitch Diameter | Outside Diameter | Material | |
|---|---|---|---|---|---|
| Buy | View | ||||
| LFA-B3-100 | 100 | 30,00 | 30,6 | 2024-T4 Aluminum | |
| LFA-B3-105 | 105 | 31,50 | 32,1 | 2024-T4 Aluminum | |
| LFA-B3-110 | 110 | 33,00 | 33,6 | 2024-T4 Aluminum | |
| LFA-B3-115 | 115 | 34,50 | 35,1 | 2024-T4 Aluminum | |
| LFA-B3-120 | 120 | 36,00 | 36,6 | 2024-T4 Aluminum | |
| LFA-B3-125 | 125 | 37,50 | 38,1 | 2024-T4 Aluminum | |
| LFA-B3-130 | 130 | 39,00 | 39,6 | 2024-T4 Aluminum | |
| LFA-B3-135 | 135 | 40,50 | 41,1 | 2024-T4 Aluminum | |
| LFA-B3-140 | 140 | 42,00 | 42,6 | 2024-T4 Aluminum | |
| LFA-B3-145 | 145 | 43,50 | 44,1 | 2024-T4 Aluminum | |
| LFA-B3-150 | 150 | 45,00 | 45,6 | 2024-T4 Aluminum | |
| LFA-B3-160 | 160 | 48,00 | 48,6 | 2024-T4 Aluminum | |
| LFA-B3-170 | 170 | 51,00 | 51,6 | 2024-T4 Aluminum | |
| LFA-B3-180 | 180 | 54,00 | 54,6 | 2024-T4 Aluminum | |
| LFA-B3-190 | 190 | 57,00 | 57,6 | 2024-T4 Aluminum | |
| LFA-B3-200 | 200 | 60,00 | 60,6 | 2024-T4 Aluminum | |
| LFA-B3-220 | 220 | 66,00 | 66,6 | 2024-T4 Aluminum | |
| LFS-B3-100 | 100 | 30,00 | 30,6 | 303 Stainless Steel | |
| LFS-B3-105 | 105 | 31,50 | 32,1 | 303 Stainless Steel | |
| LFS-B3-110 | 110 | 33,00 | 33,6 | 303 Stainless Steel | |
| LFS-B3-115 | 115 | 34,50 | 35,1 | 303 Stainless Steel | |
| LFS-B3-120 | 120 | 36,00 | 36,6 | 303 Stainless Steel | |
| LFS-B3-125 | 125 | 37,50 | 38,1 | 303 Stainless Steel | |
| LFS-B3-130 | 130 | 39,00 | 39,6 | 303 Stainless Steel | |
| LFS-B3-135 | 135 | 40,50 | 41,1 | 303 Stainless Steel | |
| LFS-B3-140 | 140 | 42,00 | 42,6 | 303 Stainless Steel | |
| LFS-B3-145 | 145 | 43,50 | 44,1 | 303 Stainless Steel | |
| LFS-B3-150 | 150 | 45,00 | 45,6 | 303 Stainless Steel | |
| LFS-B3-160 | 160 | 48,00 | 48,6 | 303 Stainless Steel | |
| LFS-B3-170 | 170 | 51,00 | 51,6 | 303 Stainless Steel | |
| LFS-B3-180 | 180 | 54,00 | 54,6 | 303 Stainless Steel | |
| LFS-B3-190 | 190 | 57,00 | 57,6 | 303 Stainless Steel | |
| LFS-B3-200 | 200 | 60,00 | 60,6 | 303 Stainless Steel | |
| LFS-B3-220 | 220 | 66,00 | 66,6 | 303 Stainless Steel | |
