    Gears, racks and worm wheels > Anti-Backlash Gears > Metric, Anti-Backlash Gears > Anti-Backlash Gear - compact design 0,3 module, 5mm bore

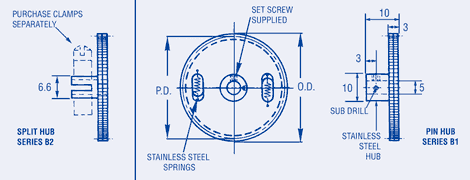

    Anti-Backlash Gear - compact design 0,3 module, 5mm bore

    Anti-Backlash Gear - compact design 0,3 module, 5mm bore
    • T = Teeth
    • PD = Pitch Diameter
    • OD = Outside Diameter
    • M = Material
    20 Degree Pressure Angle. DIN 7 gears supplied. When ordering Din 6 gears - add Din 6 to the catalog number. Anodize may be grey or black at Nordex option. To order split hub add B2 in place of B1 in catalog number.
    • T = Teeth
    • PD = Pitch Diameter
    • OD = Outside Diameter
    • M = Material
    Part Teeth Pitch Diameter Outside Diameter Material
    Buy View
    LFA-B1-100 100 30,00 30,6 2024-T4 Aluminum
    LFA-B1-105 105 31,50 32,1 2024-T4 Aluminum
    LFA-B1-110 110 33,00 33,6 2024-T4 Aluminum
    LFA-B1-115 115 34,50 35,1 2024-T4 Aluminum
    LFA-B1-120 120 36,00 36,6 2024-T4 Aluminum
    LFA-B1-125 125 37,50 38,1 2024-T4 Aluminum
    LFA-B1-130 130 39,00 39,6 2024-T4 Aluminum
    LFA-B1-135 135 40,50 41,1 2024-T4 Aluminum
    LFA-B1-140 140 42,00 42,6 2024-T4 Aluminum
    LFA-B1-145 145 43,50 44,1 2024-T4 Aluminum
    LFA-B1-150 150 45,00 45,6 2024-T4 Aluminum
    LFA-B1-160 160 48,00 48,6 2024-T4 Aluminum
    LFA-B1-170 170 51,00 51,6 2024-T4 Aluminum
    LFA-B1-180 180 54,00 54,6 2024-T4 Aluminum
    LFA-B1-190 190 57,00 57,6 2024-T4 Aluminum
    LFA-B1-200 200 60,00 60,6 2024-T4 Aluminum
    LFA-B1-220 220 66,00 66,6 2024-T4 Aluminum
    LFA-B1-230 230 69,00 69,6 2024-T4 Aluminum
    LFA-B1-240 240 72,00 72,6 2024-T4 Aluminum
    LFA-B1-250 250 75,00 75,6 2024-T4 Aluminum
    LFS-B1-100 100 30,00 30,6 303 Stainless Steel
    LFS-B1-105 105 31,50 32,1 303 Stainless Steel
    LFS-B1-110 110 33,00 33,6 303 Stainless Steel
    LFS-B1-115 115 34,50 35,1 303 Stainless Steel
    LFS-B1-120 120 36,00 36,6 303 Stainless Steel
    LFS-B1-125 125 37,50 38,1 303 Stainless Steel
    LFS-B1-130 130 39,00 39,6 303 Stainless Steel
    LFS-B1-135 135 40,50 41,1 303 Stainless Steel
    LFS-B1-140 140 42,00 42,6 303 Stainless Steel
    LFS-B1-145 145 43,50 44,1 303 Stainless Steel
    LFS-B1-150 150 45,00 45,6 303 Stainless Steel
    LFS-B1-160 160 48,00 48,6 303 Stainless Steel
    LFS-B1-170 170 51,00 51,6 303 Stainless Steel
    LFS-B1-180 180 54,00 54,6 303 Stainless Steel
    LFS-B1-190 190 57,00 57,6 303 Stainless Steel
    LFS-B1-200 200 60,00 60,6 303 Stainless Steel
    LFS-B1-220 220 66,00 66,6 303 Stainless Steel
    LFS-B1-230 230 69,00 69,6 303 Stainless Steel
    LFS-B1-240 240 72,00 72,6 303 Stainless Steel
    LFS-B1-250 250 75,00 75,6 303 Stainless Steel
