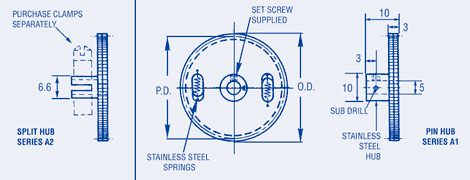

Anti-Backlash Gear - Compact Design 0,25 Module, 5mm Bore
|
|
| 20 Degree Pressure Angle. DIN 7 gears supplied. When ordering Din 6 gears - add Din 6 to the catalog number. Anodize may be grey or black at Nordex option. To order split hub add H4 in place of H3 in catalog number. | |
- T = Teeth
- PD = Pitch Diameter
- OD = Outside Diameter
- M = Material
| Part | Teeth | Pitch Diameter | Outside Diameter | Material | |
|---|---|---|---|---|---|
| Buy | View | ||||
| LFA-A1-100 | 100 | 25,00 | 25,50 | 2024-T4 Aluminum | |
| LFA-A1-105 | 105 | 26,25 | 26,75 | 2024-T4 Aluminum | |
| LFA-A1-110 | 110 | 27,50 | 28,00 | 2024-T4 Aluminum | |
| LFA-A1-115 | 115 | 28,75 | 29,25 | 2024-T4 Aluminum | |
| LFA-A1-120 | 120 | 30,00 | 30,50 | 2024-T4 Aluminum | |
| LFA-A1-125 | 125 | 31,25 | 31,75 | 2024-T4 Aluminum | |
| LFA-A1-130 | 130 | 32,50 | 33,00 | 2024-T4 Aluminum | |
| LFA-A1-135 | 135 | 33,75 | 34,25 | 2024-T4 Aluminum | |
| LFA-A1-140 | 140 | 35,00 | 35,50 | 2024-T4 Aluminum | |
| LFA-A1-145 | 145 | 36,25 | 36,75 | 2024-T4 Aluminum | |
| LFA-A1-150 | 150 | 37,50 | 38,00 | 2024-T4 Aluminum | |
| LFA-A1-160 | 160 | 40,00 | 40,50 | 2024-T4 Aluminum | |
| LFA-A1-170 | 170 | 42,50 | 43,00 | 2024-T4 Aluminum | |
| LFA-A1-180 | 180 | 45,00 | 45,50 | 2024-T4 Aluminum | |
| LFA-A1-190 | 190 | 47,50 | 48,00 | 2024-T4 Aluminum | |
| LFA-A1-200 | 200 | 50,00 | 50,50 | 2024-T4 Aluminum | |
| LFA-A1-220 | 220 | 55,00 | 55,50 | 2024-T4 Aluminum | |
| LFS-A1-100 | 100 | 25,00 | 25,50 | 303 Stainless Steel | |
| LFS-A1-105 | 105 | 26,25 | 26,75 | 303 Stainless Steel | |
| LFS-A1-110 | 110 | 27,50 | 28,00 | 303 Stainless Steel | |
| LFS-A1-115 | 115 | 28,75 | 29,25 | 303 Stainless Steel | |
| LFS-A1-120 | 120 | 30,00 | 30,50 | 303 Stainless Steel | |
| LFS-A1-125 | 125 | 31,25 | 31,75 | 303 Stainless Steel | |
| LFS-A1-130 | 130 | 32,50 | 33,00 | 303 Stainless Steel | |
| LFS-A1-135 | 135 | 33,75 | 34,25 | 303 Stainless Steel | |
| LFS-A1-140 | 140 | 35,00 | 35,50 | 303 Stainless Steel | |
| LFS-A1-145 | 145 | 36,25 | 36,75 | 303 Stainless Steel | |
| LFS-A1-150 | 150 | 37,50 | 38,00 | 303 Stainless Steel | |
| LFS-A1-160 | 160 | 40,00 | 40,50 | 303 Stainless Steel | |
| LFS-A1-170 | 170 | 42,50 | 43,00 | 303 Stainless Steel | |
| LFS-A1-180 | 180 | 45,00 | 45,50 | 303 Stainless Steel | |
| LFS-A1-190 | 190 | 47,50 | 48,00 | 303 Stainless Steel | |
| LFS-A1-200 | 200 | 50,00 | 50,50 | 303 Stainless Steel | |
| LFS-A1-220 | 220 | 55,00 | 55,50 | 303 Stainless Steel | |
