Anti-Backlash Spur Gears, Inch, Compact, Scissor spring styl

Anti-Backlash Spur Gears, Inch, Compact, Scissor spring styl

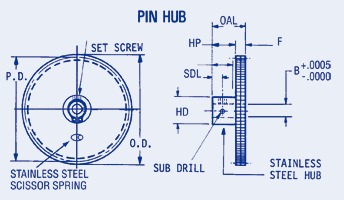

  • T = Number of Teeth
  • OD = Outside Diameter
  • PD = Pitch Diameter
  • HD = Hub Diameter
  • B = Bore
  • P= Pitch
  • F = Face
  • HP = Hub Projection
  • OAL = Over all Length
  • SDL = Sub Drill Location
Material: LFS Series Stainless Steel LFA series Aluminum anodized. 20 degree pressure angle, AGMA Quality 10
  • T = Number of Teeth
  • OD = Outside Diameter
  • PD = Pitch Diameter
  • HD = Hub Diameter
  • B = Bore
  • P= Pitch
  • F = Face
  • HP = Hub Projection
  • OAL = Over all Length
  • SDL = Sub Drill Location
Part Number of Teeth Outside Diameter Pitch Diameter Hub Diameter Bore Pitch Face Hub Projection Over all Length Sub Drill Location
Buy View 1/8
LFA-L1-18 18 .833 .7500 .50 .2498 24 1/4 5/16 9/16 1/8
LFA-L1-21 21 .958 .8750 .50 .2498 24 1/4 5/16 9/16 1/8
LFA-L1-24 24 1.083 1.0000 .50 .2498 24 1/4 5/16 9/16 1/8
LFA-M1-24 24 .812 .7500 .50 .2498 32 1/4 5/16 9/16 1/8
LFA-M1-28 28 .937 .8750 .50 .2498 32 1/4 5/16 9/16 1/8
LFA-M1-32 32 1.062 1.0000 .50 .2498 32 1/4 5/16 9/16 1/8
LFA-N1-36 36 .792 .7500 .50 .2498 48 1/4 5/16 9/16 1/8
LFA-N1-42 42 .917 .8750 .50 .2498 48 1/4 5/16 9/16 1/8
LFA-N1-48 48 1.042 1.0000 .50 .2498 48 1/4 5/16 9/16 1/8
LFA-O1-30 30 .667 .6250 .38 .1873 48 1/8 3/8 1/2 1/8
LFA-O1-32 32 .708 .6666 .38 .1873 48 1/8 3/8 1/2 1/8
LFA-O1-36 36 .792 .7500 .38 .1873 48 1/8 3/8 1/2 1/8
LFA-O1-48 48 1.042 1.0000 .38 .1873 48 1/8 3/8 1/2 1/8
LFA-P1-32 32 .708 .6666 .50 .2498 48 1/8 3/8 1/2 1/8
LFA-P1-36 36 .792 .7500 .50 .2498 48 1/8 3/8 1/2 1/8
LFA-P1-48 48 1.042 1.0000 .50 .2498 48 1/8 3/8 1/2 1/8
LFA-Q1-40 40 .656 .6250 .38 .1873 64 1/8 3/8 1/2 1/8
LFA-Q1-48 48 .781 .7500 .38 .1873 64 1/8 3/8 3 1/2 1/8
LFA-Q1-64 64 1.031 1.0000 .38 .1873 64 1/8 3/8 1/2 1/8
LFA-R1-48 48 .781 .7500 .50 .2498 64 1/8 3/8 1/2 1/8
LFA-R1-64 64 1.031 1.0000 .50 .2498 64 1/8 3/8 1/2 1/8
LFA-S1-44 44 .639 .6111 .31 .1248 72 1/8 3/8 1/2 1/8
LFA-S1-56 56 .806 .7777 .31 .1248 72 1/8 3/8 1/2 1/8
LFA-S1-72 72 1.028 1.0000 .31 .1248 72 1/8 3/8 1/2 1/8
LFA-T1-44 44 .639 .6111 .38 .1873 72 1/8 3/8 1/2 1/8
LFA-T1-56 56 .806 .7777 .38 .1873 72 1/8 3/8 1/2 1/8
LFA-T1-72 72 1.028 1.0000 .38 .1873 72 1/8 3/8 1/2 1/8
LFA-U1-60 60 .646 .6250 .31 .1248 96 1/8 3/8 1/2 1/8
LFA-U1-72 72 .771 .7500 .31 .1248 96 1/8 3/8 1/2 1/8
LFA-U1-96 96 1.021 1.0000 .31 .1248 96 1/8 3/8 1/2 1/8
LFA-V1-60 60 .646 .6250 .38 .1873 96 1/8 3/8 3 1/2 1/8
LFA-V1-72 72 .771 .7500 .38 .1873 96 1/8 3/8 1/2 1/8
LFA-V1-96 96 1.021 1.0000 .38 .1873 96 1/8 3/8 1/2 1/8
LFS-L1-18 18 .833 .7500 .50 .2498 24 1/4 5/16 9/16 1/8
LFS-L1-21 21 .958 .8750 .50 .2498 24 1/4 5/16 9/16 1/8
LFS-L1-24 24 1.083 1.0000 .50 .2498 24 1/4 5/16 9/16 1/8
LFS-M1-24 24 .812 .7500 .50 .2498 32 1/4 5/16 9/16 1/8
LFS-M1-28 28 .937 .8750 .50 .2498 32 1/4 5/16 9/16 1/8
LFS-M1-32 32 1.062 1.0000 .50 .2498 32 1/4 5/16 9/16 1/8
LFS-N1-36 36 .792 .7500 .50 .2498 48 1/4 5/16 9/16 1/8
LFS-N1-42 42 .917 .8750 .50 .2498 48 1/4 5/16 9/16 1/8
LFS-N1-48 48 1.042 1.0000 .50 .2498 48 1/4 5/16 9/16 1/8
LFS-O1-30 30 .667 .6250 .38 .1873 48 1/8 3/8 1/2 1/8
LFS-O1-32 32 .708 .6666 .38 .1873 48 1/8 3/8 1/2 1/8
LFS-O1-36 36 .792 .7500 .38 .1873 48 1/8 3/8 1/2 1/8
LFS-O1-48 48 1.042 1.0000 .38 .1873 48 1/8 3/8 1/2 1/8
LFS-P1-32 32 .708 .6666 .50 .2498 48 1/8 3/8 1/2 1/8
LFS-P1-36 36 .792 .7500 .50 .2498 48 1/8 3/8 1/2 1/8
LFS-P1-48 48 1.042 1.0000 .50 .2498 48 1/8 3/8 1/2 1/8
LFS-Q1-40 40 .656 .6250 .38 .1873 64 1/8 3/8 1/2 1/8
LFS-Q1-48 48 .781 .7500 .38 .1873 64 1/8 3/8 1/2 1/8
LFS-Q1-64 64 1.031 1.0000 .38 .1873 64 1/8 3/8 1/2 1/8
LFS-R1-48 48 .781 .7500 .50 .2498 64 1/8 3/8 1/2 1/8
LFS-R1-64 64 1.031 1.0000 .50 .2498 64 1/8 3/8 1/2 1/8
LFS-S1-44 44 .639 .6111 .31 .1248 72 1/8 3/8 1/2 1/8
LFS-S1-56 56 .806 .7777 .31 .1248 72 1/8 3/8 1/2 1/8
LFS-S1-72 72 1.028 1.0000 .31 .1248 72 1/8 3/8 1/2 1/8
LFS-T1-44 44 .639 .6111 .38 .1873 72 1/8 3/8 1/2 1/8
LFS-T1-56 56 .806 .7777 .38 .1873 72 1/8 3/8 1/2 1/8
LFS-T1-72 72 1.028 1.0000 .38 .1873 72 1/8 3/8 1/2 1/8
LFS-U1-60 60 .646 .6250 .31 .1248 96 1/8 3/8 1/2 1/8
LFS-U1-72 72 .771 .7500 .31 .1248 96 1/8 3/8 1/2 1/8
LFS-U1-96 96 1.021 1.0000 .31 .1248 96 1/8 3/8 1/2 1/8
LFS-V1-60 60 .646 .6250 .38 .1873 96 1/8 3/8 1/2 1/8
LFS-V1-72 72 .771 .7500 .38 .1873 96 1/8 3/8 1/2 1/8
LFS-V1-96 96 1.021 1.0000 .38 .1873 96 1/8 3/8 1/2 1/8
