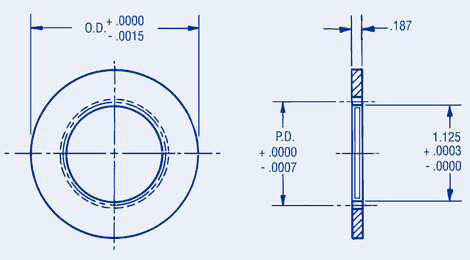

Differential End Gears, 48 Pitch
|
|
| 20 Degree Pressure angle, AGMA Quality 12 Aluminum gears Anodized before gear cutting | |
- M = Material
- T = Teeth
- PD = Pitch Diameter
- OD = Outside Diameter
| Part | Material | Teeth | Pitch Diameter | Outside Diameter | |
|---|---|---|---|---|---|
| Buy | View | ||||
| LQA-A1-1 | 2024-T4 Aluminum | 69 | 1.4375 | 1.479 | |
| LQA-A1-2 | 2024-T4 Aluminum | 72 | 1.5000 | 1.542 | |
| LQA-A1-3 | 2024-T4 Aluminum | 80 | 1.6667 | 1.708 | |
| LQA-A1-4 | 2024-T4 Aluminum | 82 | 1.7083 | 1.750 | |
| LQA-A1-5 | 2024-T4 Aluminum | 86 | 1.7917 | 1.833 | |
| LQA-A1-6 | 2024-T4 Aluminum | 90 | 1.8750 | 1.916 | |
| LQA-A1-7 | 2024-T4 Aluminum | 95 | 1.9791 | 2.021 | |
| LQA-A1-8 | 2024-T4 Aluminum | 96 | 2.0000 | 2.042 | |
| LQA-A1-9 | 2024-T4 Aluminum | 100 | 2.0833 | 2.125 | |
| LQA-A1-10 | 2024-T4 Aluminum | 110 | 2.2917 | 2.333 | |
| LQA-A1-11 | 2024-T4 Aluminum | 120 | 2.5000 | 2.542 | |
| LQA-A1-12 | 2024-T4 Aluminum | 130 | 2.7083 | 2.750 | |
| LQS-A1-1 | 303 Stainless Steel | 69 | 1.4375 | 1.479 | |
| LQS-A1-2 | 303 Stainless Steel | 72 | 1.5000 | 1.542 | |
| LQS-A1-3 | 303 Stainless Steel | 80 | 1.6667 | 1.708 | |
| LQS-A1-4 | 303 Stainless Steel | 82 | 1.7083 | 1.750 | |
| LQS-A1-5 | 303 Stainless Steel | 86 | 1.7917 | 1.833 | |
| LQS-A1-6 | 303 Stainless Steel | 90 | 1.8750 | 1.916 | |
| LQS-A1-7 | 303 Stainless Steel | 95 | 1.9791 | 2.021 | |
| LQS-A1-8 | 303 Stainless Steel | 96 | 2.0000 | 2.042 | |
| LQS-A1-9 | 303 Stainless Steel | 100 | 2.0833 | 2.125 | |
| LQS-A1-10 | 303 Stainless Steel | 110 | 2.2917 | 2.333 | |
| LQS-A1-11 | 303 Stainless Steel | 120 | 2.5000 | 2.542 | |
| LQS-A1-12 | 303 Stainless Steel | 130 | 2.7083 | 2.750 | |
