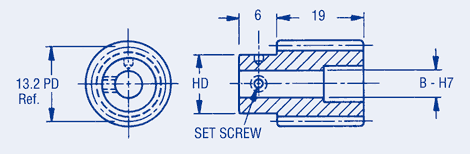

Worm - Ground Thread, 0,4 module
|
|
| Right Hand, Quality 10 / Din 7 Material: 303 Stainless Steel | |
- B = Bore
- HD = Hub Diameter
- TH = Thread
| Part | Bore | Hub Diameter | Thread | |
|---|---|---|---|---|
| Buy | View | |||
| KCS-C1-1 | 3,0 | 8,0 | Single 14-1/2 deg. PA | |
| KCS-C1-2 | 5,0 | 10,0 | Single 14-1/2 deg. PA | |
| KCS-C1-3 | 7,0 | 11,0 | Single 14-1/2 deg. PA | |
| KCS-C2-1 | 3,0 | 8,0 | Double 20 deg. PA | |
| KCS-C2-2 | 5,0 | 10,0 | Double 20 deg. PA | |
| KCS-C2-3 | 7,0 | 11,0 | Double 20 deg. PA | |
| KCS-C3-1 | 3,0 | 8,0 | Four 25 deg. PA | |
| KCS-C3-2 | 5,0 | 10,0 | Four 25 deg. PA | |
| KCS-C3-3 | 7,0 | 11,0 | Four 25 deg. PA | |
