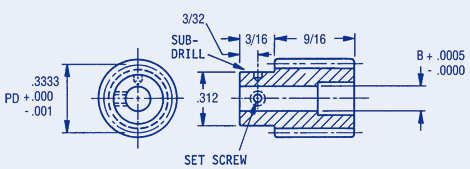

48 Pitch Worm-Ground Thread
|
|
| Material: 303 Stainless Steel AGMA Quality 10 | |
- TH= Thread
- B = Bore
- SS= Set Screw
- L = Lead
- LA= Lead Angle
| Part | Thread | Bore | Set Screw | Lead | Lead Angle | |
|---|---|---|---|---|---|---|
| Buy | View | |||||
| KAS-A1-1 | Single 14-1/2 degree PA | .1248 | #2-56 | .0654 | 3 degree 35' | |
| KAS-A1-2 | Single 14-1/2 degree PA | .1873 | #4-40 | .0654 | 3 degree 35' | |
| KAS-A2-1 | Double 20 degree PA | .1248 | #2-56 | .1309 | 7 degree 7' | |
| KAS-A2-2 | Double 20 degree PA | .1873 | #4-40 | .1309 | 7 degree 7' | |
| KAS-A3-1 | Four 25 degree PA | .1248 | #2-56 | .2618 | 14 degree 2' | |
| KAS-A3-2 | Four 25 degree PA | .1873 | #4-40 | .2618 | 14 degree 2' | |
