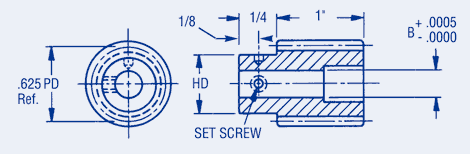

16 Pitch Worm-Ground Thread

16 Pitch Worm-Ground Thread
  • SH = Shaft Size
  • B = Bore
  • HD = Hub Diameter
  • TH = Thread
Material: 303 Stainless Steel. Right Hand Quality No. 8 KCS-H1 use with single thread wheel (14-1/2 degree P.A.) KCS-H2 use with double thread wheel (20 degree P.A.) KCS-H3 use with four thread wheel (25 degree P.A.)
  • SH = Shaft Size
  • B = Bore
  • HD = Hub Diameter
  • TH = Thread
Part Shaft Size Bore Hub Diameter Thread
Buy View 1/4 1/2
KCS-H1-1 1/4 .2498 1/2 Single
KCS-H1-2 1/4 .3123 1/2 Single
KCS-H2-1 1/4 .2498 1/2 Double
KCS-H2-2 1/4 .3123 1/2 Double
KCS-H3-1 1/4 .2498 1/2 Four
KCS-H3-2 1/4 .3123 1/2 Four
