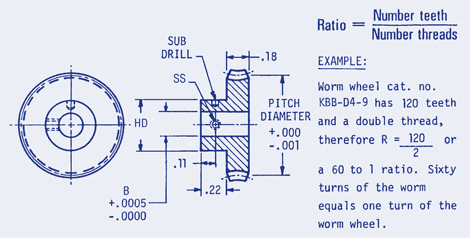

32 Pitch Worm Wheel Pin Hub
|
|
| Material: Bronze QQ-B-637, Alloy 464 AGMA Quality Q10 | |
- T= No. Teeth
- B = Bore
- OAL = Hub Diameter
- SS= Set Screw
- PD = Pitch Diameter
- THD = Thread
| Part | No. Teeth | Bore | Hub Diameter | Set Screw | Pitch Diameter | Thread | |
|---|---|---|---|---|---|---|---|
| Buy | View | .50000 | #6-32 | ||||
| KBB-D2-1 | 20 | .2498 | .500 | #6-32 | .6250 | Single | |
| KBB-D2-2 | 30 | .2498 | .500 | #6-32 | .9375 | Single | |
| KBB-D2-3 | 40 | .2498 | .500 | #6-32 | 1.2500 | Single | |
| KBB-D2-4 | 50 | .2498 | .500 | #6-32 | 1.5625 | Single | |
| KBB-D2-5 | 60 | .2498 | .500 | #6-32 | 1.8750 | Single | |
| KBB-D2-6 | 80 | .2498 | .500 | #6-32 | 2.5000 | Single | |
| KBB-D2-7 | 96 | .2498 | .500 | #6-32 | 3.0000 | Single | |
| KBB-D2-8 | 100 | .2498 | .500 | #6-32 | 3.1250 | Single | |
| KBB-D2-9 | 120 | .2498 | .500 | #6-32 | 3.7500 | Single | |
| KBB-D3-1 | 20 | .3123 | .500 | #6-32 | .6250 | Single | |
| KBB-D3-2 | 30 | .3123 | .500 | #6-32 | .9375 | Single | |
| KBB-D3-3 | 40 | .3123 | .500 | #6-32 | 1.2500 | Single | |
| KBB-D3-4 | 50 | .3123 | .500 | #6-32 | 1.5625 | Single | |
| KBB-D3-5 | 60 | .3123 | .500 | #6-32 | 1.8750 | Single | |
| KBB-D3-6 | 80 | .3123 | .500 | #6-32 | 2.5000 | Single | |
| KBB-D3-7 | 96 | .3123 | .500 | #6-32 | 3.0000 | Single | |
| KBB-D3-8 | 100 | .3123 | .500 | #6-32 | 3.1250 | Single | |
| KBB-D3-9 | 120 | .3123 | .500 | #6-32 | 3.7500 | Single | |
| KBB-D5-1 | 20 | .2498 | .500 | #6-32 | .6250 | Double | |
| KBB-D5-2 | 30 | .2498 | .500 | #6-32 | .9375 | Double | |
| KBB-D5-3 | 40 | .2498 | .500 | #6-32 | 1.2500 | Double | |
| KBB-D5-4 | 50 | .2498 | .500 | #6-32 | 1.5625 | Double | |
| KBB-D5-5 | 60 | .2498 | .500 | #6-32 | 1.8750 | Double | |
| KBB-D5-6 | 80 | .2498 | .500 | #6-32 | 2.5000 | Double | |
| KBB-D5-7 | 96 | .2498 | .500 | #6-32 | 3.0000 | Double | |
| KBB-D5-8 | 100 | .2498 | .500 | #6-32 | 3.1250 | Double | |
| KBB-D5-9 | 120 | .2498 | .500 | #6-32 | 3.7500 | Double | |
| KBB-D6-1 | 20 | .3123 | .500 | #6-32 | .6250 | Double | |
| KBB-D6-2 | 30 | .3123 | .500 | #6-32 | .9375 | Double | |
| KBB-D6-3 | 40 | .3123 | .500 | #6-32 | 1.2500 | Double | |
| KBB-D6-4 | 50 | .3123 | .500 | #6-32 | 1.5625 | Double | |
| KBB-D6-5 | 60 | .3123 | .500 | #6-32 | 1.8750 | Double | |
| KBB-D6-6 | 80 | .3123 | .500 | #6-32 | 2.5000 | Double | |
| KBB-D6-7 | 96 | .3123 | .500 | #6-32 | 3.0000 | Double | |
| KBB-D6-8 | 100 | .3123 | .500 | #6-32 | 3.1250 | Double | |
| KBB-D6-9 | 120 | .3123 | .500 | #6-32 | 3.7500 | Double | |
| KBB-D8-1 | 20 | .2498 | .500 | #6-32 | .6250 | Four | |
| KBB-D8-2 | 30 | .2498 | .500 | #6-32 | .9375 | Four | |
| KBB-D8-3 | 40 | .2498 | .500 | #6-32 | 1.2500 | Four | |
| KBB-D8-4 | 50 | .2498 | .500 | #6-32 | 1.5625 | Four | |
| KBB-D8-5 | 60 | .2498 | .500 | #6-32 | 1.8750 | Four | |
| KBB-D8-6 | 80 | .2498 | .500 | #6-32 | 2.5000 | Four | |
| KBB-D8-7 | 96 | .2498 | .500 | #6-32 | 3.0000 | Four | |
| KBB-D8-8 | 100 | .2498 | .500 | #6-32 | 3.1250 | Four | |
| KBB-D8-9 | 120 | .2498 | .500 | #6-32 | 3.7500 | Four | |
| KBB-D9-1 | 20 | .3123 | .500 | #6-32 | .6250 | Four | |
| KBB-D9-2 | 30 | .3123 | .500 | #6-32 | .9375 | Four | |
| KBB-D9-3 | 40 | .3123 | .500 | #6-32 | 1.2500 | Four | |
| KBB-D9-4 | 50 | .3123 | .500 | #6-32 | 1.5625 | Four | |
| KBB-D9-5 | 60 | .3123 | .500 | #6-32 | 1.8750 | Four | |
| KBB-D9-6 | 80 | .3123 | .500 | #6-32 | 2.5000 | Four | |
| KBB-D9-7 | 96 | .3123 | .500 | #6-32 | 3.0000 | Four | |
| KBB-D9-8 | 100 | .3123 | .500 | #6-32 | 3.1250 | Four | |
| KBB-D9-9 | 120 | .3123 | .500 | #6-32 | 3.7500 | Four | |
