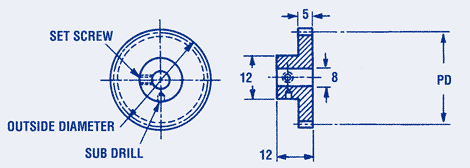

SPUR GEAR, PIN HUB, 0,5 mod., 5mm face, 8mm bore
|
|
| 20 degree pressure angle, DIN 7. Aluminum gears anodized before cutting. | |
- T = Teeth
- OD = Outside Diameter
- PD = Pitch Diameter
- M = Material
| Part | Teeth | Outside Diameter | Pitch Diameter | Material | |
|---|---|---|---|---|---|
| Buy | View | ||||
| LAA-Q5-20 | 20 | 11,00 | 10,00 | 2024-T4 ALUMINUM | |
| LAA-Q5-22 | 22 | 12,00 | 11,00 | 2024-T4 ALUMINUM | |
| LAA-Q5-24 | 24 | 13,00 | 12,00 | 2024-T4 ALUMINUM | |
| LAA-Q5-25 | 25 | 13,50 | 12,50 | 2024-T4 ALUMINUM | |
| LAA-Q5-26 | 26 | 14,00 | 13,00 | 2024-T4 ALUMINUM | |
| LAA-Q5-28 | 28 | 15,00 | 14,00 | 2024-T4 ALUMINUM | |
| LAA-Q5-30 | 30 | 16,00 | 15,00 | 2024-T4 ALUMINUM | |
| LAA-Q5-32 | 32 | 17,00 | 16,00 | 2024-T4 ALUMINUM | |
| LAA-Q5-34 | 34 | 18,00 | 17,00 | 2024-T4 ALUMINUM | |
| LAA-Q5-36 | 36 | 19,00 | 18,00 | 2024-T4 ALUMINUM | |
| LAA-Q5-40 | 40 | 21,00 | 20,00 | 2024-T4 ALUMINUM | |
| LAA-Q5-42 | 42 | 22,00 | 21,00 | 2024-T4 ALUMINUM | |
| LAA-Q5-45 | 45 | 23,50 | 22,50 | 2024-T4 ALUMINUM | |
| LAA-Q5-48 | 48 | 25,00 | 24,00 | 2024-T4 ALUMINUM | |
| LAA-Q5-50 | 50 | 26,00 | 25,00 | 2024-T4 ALUMINUM | |
| LAA-Q5-55 | 55 | 28,50 | 27,50 | 2024-T4 ALUMINUM | |
| LAA-Q5-60 | 60 | 31,00 | 30,00 | 2024-T4 ALUMINUM | |
| LAA-Q5-64 | 64 | 33,00 | 32,00 | 2024-T4 ALUMINUM | |
| LAA-Q5-65 | 65 | 33,50 | 32,50 | 2024-T4 ALUMINUM | |
| LAA-Q5-70 | 70 | 36,00 | 35,00 | 2024-T4 ALUMINUM | |
| LAA-Q5-72 | 72 | 37,00 | 36,00 | 2024-T4 ALUMINUM | |
| LAA-Q5-75 | 75 | 38,50 | 37,50 | 2024-T4 ALUMINUM | |
| LAA-Q5-80 | 80 | 41,00 | 40,00 | 2024-T4 ALUMINUM | |
| LAA-Q5-84 | 84 | 43,00 | 42,00 | 2024-T4 ALUMINUM | |
| LAA-Q5-85 | 85 | 43,50 | 42,50 | 2024-T4 ALUMINUM | |
| LAA-Q5-90 | 90 | 46,00 | 45,00 | 2024-T4 ALUMINUM | |
| LAA-Q5-95 | 95 | 48,50 | 47,50 | 2024-T4 ALUMINUM | |
| LAA-Q5-96 | 96 | 49,00 | 48,00 | 2024-T4 ALUMINUM | |
| LAA-Q5-100 | 100 | 51,00 | 50,00 | 2024-T4 ALUMINUM | |
| LAA-Q5-105 | 105 | 53,50 | 52,50 | 2024-T4 ALUMINUM | |
| LAA-Q5-108 | 108 | 55,00 | 54,00 | 2024-T4 ALUMINUM | |
| LAA-Q5-110 | 110 | 56,00 | 55,00 | 2024-T4 ALUMINUM | |
| LAA-Q5-120 | 120 | 61,00 | 60,00 | 2024-T4 ALUMINUM | |
| LAA-Q5-128 | 128 | 65,00 | 64,00 | 2024-T4 ALUMINUM | |
| LAA-Q5-168 | 168 | 85,00 | 84,00 | 2024-T4 ALUMINUM | |
| LAA-Q5-192 | 192 | 97,00 | 96,00 | 2024-T4 ALUMINUM | |
| LAS-Q5-20 | 20 | 11,00 | 10,00 | 303 STAINLESS STEEL | |
| LAS-Q5-22 | 22 | 12,00 | 11,00 | 303 STAINLESS STEEL | |
| LAS-Q5-24 | 24 | 13,00 | 12,00 | 303 STAINLESS STEEL | |
| LAS-Q5-25 | 25 | 13,50 | 12,50 | 303 STAINLESS STEEL | |
| LAS-Q5-26 | 26 | 14,00 | 13,00 | 303 STAINLESS STEEL | |
| LAS-Q5-28 | 28 | 15,00 | 14,00 | 303 STAINLESS STEEL | |
| LAS-Q5-30 | 30 | 16,00 | 15,00 | 303 STAINLESS STEEL | |
| LAS-Q5-32 | 32 | 17,00 | 16,00 | 303 STAINLESS STEEL | |
| LAS-Q5-34 | 34 | 18,00 | 17,00 | 303 STAINLESS STEEL | |
| LAS-Q5-36 | 36 | 19,00 | 18,00 | 303 STAINLESS STEEL | |
| LAS-Q5-40 | 40 | 21,00 | 20,00 | 303 STAINLESS STEEL | |
| LAS-Q5-42 | 42 | 22,00 | 21,00 | 303 STAINLESS STEEL | |
| LAS-Q5-45 | 45 | 23,50 | 22,50 | 303 STAINLESS STEEL | |
| LAS-Q5-48 | 48 | 25,00 | 24,00 | 303 STAINLESS STEEL | |
| LAS-Q5-50 | 50 | 26,00 | 25,00 | 303 STAINLESS STEEL | |
| LAS-Q5-55 | 55 | 28,50 | 27,50 | 303 STAINLESS STEEL | |
| LAS-Q5-60 | 60 | 31,00 | 30,00 | 303 STAINLESS STEEL | |
| LAS-Q5-64 | 64 | 33,00 | 32,00 | 303 STAINLESS STEEL | |
| LAS-Q5-65 | 65 | 33,50 | 32,50 | 303 STAINLESS STEEL | |
| LAS-Q5-70 | 70 | 36,00 | 35,00 | 303 STAINLESS STEEL | |
| LAS-Q5-72 | 72 | 37,00 | 36,00 | 303 STAINLESS STEEL | |
| LAS-Q5-75 | 75 | 38,50 | 37,50 | 303 STAINLESS STEEL | |
| LAS-Q5-80 | 80 | 41,00 | 40,00 | 303 STAINLESS STEEL | |
| LAS-Q5-84 | 84 | 43,00 | 42,00 | 303 STAINLESS STEEL | |
| LAS-Q5-85 | 85 | 43,50 | 42,50 | 303 STAINLESS STEEL | |
| LAS-Q5-90 | 90 | 46,00 | 45,00 | 303 STAINLESS STEEL | |
| LAS-Q5-95 | 95 | 48,50 | 47,50 | 303 STAINLESS STEEL | |
| LAS-Q5-96 | 96 | 49,00 | 48,00 | 303 STAINLESS STEEL | |
| LAS-Q5-100 | 100 | 51,00 | 50,00 | 303 STAINLESS STEEL | |
| LAS-Q5-105 | 105 | 53,50 | 52,50 | 303 STAINLESS STEEL | |
| LAS-Q5-108 | 108 | 55,00 | 54,00 | 303 STAINLESS STEEL | |
| LAS-Q5-110 | 110 | 56,00 | 55,00 | 303 STAINLESS STEEL | |
| LAS-Q5-120 | 120 | 61,00 | 60,00 | 303 STAINLESS STEEL | |
| LAS-Q5-128 | 128 | 65,00 | 64,00 | 303 STAINLESS STEEL | |
| LAS-Q5-168 | 168 | 85,00 | 84,00 | 303 STAINLESS STEEL | |
| LAS-Q5-192 | 192 | 97,00 | 96,00 | 303 STAINLESS STEEL | |
