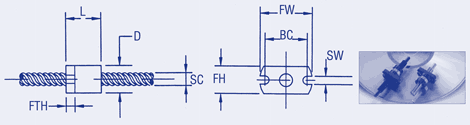

Low Drag Torque Anti-Backlash	SELECT= Screw Size SC = Screw Diameter D = Nut Diameter L = Nut Length FH = Flange Height FW = Flange Width FTH = Flange Thickness S = Slot Width BC = Bolt Circle Diameter LE = Lead DY = Dynamic Load DT= Drag Torque EFF = Efficiency
Material: Polyacetal, Engineered plastic. Includes integrally molded flange.

SELECT= Screw Size
SC = Screw Diameter
D = Nut Diameter
L = Nut Length
FH = Flange Height
FW = Flange Width
FTH = Flange Thickness
S = Slot Width
BC = Bolt Circle Diameter
LE = Lead
DY = Dynamic Load
DT= Drag Torque
EFF = Efficiency

Part		Screw Size	Screw Diameter	Nut Diameter	Nut Length	Flange Height	Flange Width	Flange Thickness	Slot Width	Bolt Circle Diameter	Lead	Dynamic Load	Drag Torque	Efficiency
Buy	View			.40000	.50000	.40000	.75000	.13000	.12000	.60000		5.00000	.5
	MAH-A6-1	1/8	.125	.40	.50	.40	.75	.13	.120	.600	.012	5	.5	26
	MAH-A6-2	1/8	.125	.40	.50	.40	.75	.13	.120	.600	.024	5	.5	44
	MAH-A6-3	1/8	.125	.40	.50	.40	.75	.13	.120	.600	.024	5	.5	43
	MAH-A6-4	1/8	.125	.40	.50	.40	.75	.13	.120	.600	.048	5	.5	61
	MAH-A6-5	1/8	.125	.40	.50	.40	.75	.13	.120	.600	.048	5	.5	62
	MAH-A6-6	1/8	.125	.40	.50	.40	.75	.13	.120	.600	.075	5	.5	70
	MAH-A6-7	1/8	.125	.40	.50	.40	.75	.13	.120	.600	.096	5	.5	75
	MAH-A6-8	1/8	.125	.40	.50	.40	.75	.13	.120	.600	.096	5	.5	75
	MAH-A6-9	1/8	.125	.40	.50	.40	.75	.13	.120	.600	.375	5	.5	85
	MAH-A7-1	3/16	.188	.40	.50	.40	.75	.13	.120	.600	.024	5	.5	31
	MAH-A7-2	3/16	.188	.40	.50	.40	.75	.13	.120	.600	.031	5	.5	39
	MAH-A7-3	3/16	.188	.40	.50	.40	.75	.13	.120	.600	.048	5	.5	50
	MAH-A7-4	3/16	.188	.40	.50	.40	.75	.13	.120	.600	.050	5	.5	52
	MAH-A7-5	3/16	.188	.40	.50	.40	.75	.13	.120	.600	.096	5	.5	66
	MAH-A7-6	3/16	.188	.40	.50	.40	.75	.13	.120	.600	.188	5	.5	78
	MAH-A7-7	3/16	.188	.40	.50	.40	.75	.13	.120	.600	.192	5	.5	78
	MAH-A7-8	3/16	.188	.40	.50	.40	.75	.13	.120	.600	.250	5	.5	81
	MAH-A7-9	3/16	.188	.40	.50	.40	.75	.13	.120	.600	.375	5	.5	84
