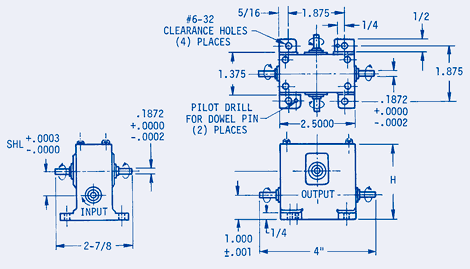

Worm & Wheel Boxes,Precision,Medium Duty 3/16 Shaft,64 Pitch

Worm & Wheel Boxes,Precision,Medium Duty 3/16 Shaft,64 Pitch
  • R= Reduction
  • B= Type of Bearing
  • SHL = Shaft Location
  • H = Height
Maxiumum backlash 30 minutes. Worms - stainless steel, worm wheels - bronze, housing - cast aluminum (anodized), shafts - stainless steel, Mil spec grease lubrication.
  • R= Reduction
  • B= Type of Bearing
  • SHL = Shaft Location
  • H = Height
Part Reduction Type of Bearing Shaft Location Height
Buy View
GMX-E5-1 15:1 Ball Bearing Units .7190 2-11/32
GMX-E5-2 20:1 Ball Bearing Units .8753 2-5/8
GMX-E5-3 25:1 Ball Bearing Units 1.0315 2-31/32
GMX-E5-4 30:1 Ball Bearing Units 1.1878 3-1/4
GMX-E5-5 30:1 Ball Bearing Units .7190 2-11/32
GMX-E5-6 40:1 Ball Bearing Units .8753 2-5/8
GMX-E5-7 50:1 Ball Bearing Units 1.0315 2-31/32
GMX-E5-8 60:1 Ball Bearing Units 1.1878 3-1/4
GMX-E5-9 60:1 Ball Bearing Units .7190 2-11/32
GMX-E5-10 80:1 Ball Bearing Units .8753 2-5/8
GMX-E5-11 100:1 Ball Bearing Units 1.0315 2-31/32
GMX-E5-12 120:1 Ball Bearing Units 1.1878 3-1/4
GMX-S5-21 15:1 Bronze Bearing Units .7190 2-11/32
GMX-S5-22 20:1 Bronze Bearing Units .8753 2-5/8
GMX-S5-23 25:1 Bronze Bearing Units 1.0315 2-31/32
GMX-S5-24 30:1 Bronze Bearing Units 1.1878 3-1/4
GMX-S5-25 30:1 Bronze Bearing Units .7190 2-11/32
GMX-S5-26 40:1 Bronze Bearing Units .8753 2-5/8
GMX-S5-27 50:1 Bronze Bearing Units 1.0315 2-31/32
GMX-S5-28 60:1 Bronze Bearing Units 1.1878 3-1/4
GMX-S5-29 60:1 Bronze Bearing Units .7190 2-11/32
GMX-S5-30 80:1 Bronze Bearing Units .8753 2-5/8
GMX-S5-31 100:1 Bronze Bearing Units 1.0315 2-31/32
GMX-S5-32 120:1 Bronze Bearing Units 1.1878 3-1/4
