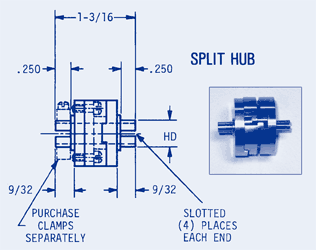

Oldham Coupling Split Hub (150 oz-in)
|
|
| 150 oz.-in. torque, shaft to shaft misalignment .015, angular misalignment 1 degree. Maxiumum backlahs 8'. maximum RPM 2,000. | |
- SH = Shaft size
- MAT= Material
- B1 = Bore 1
- B2 = Bore 2
- H1 = Hub 1
- H2 = Hub 2
| Part | Shaft size | Material | Bore 1 | Bore 2 | Hub 1 | Hub 2 | |
|---|---|---|---|---|---|---|---|
| Buy | View | 303 Stainless Steel | |||||
| CBS-A2-1 | 0.12-0.12 | 303 Stainless Steel | .1200 | .1200 | .188 | .188 | |
| CBS-A2-2 | 0.12-1/8 | 303 Stainless Steel | .1200 | .1248 | .188 | .188 | |
| CBS-A2-3 | 0.12-3/16 | 303 Stainless Steel | .1200 | .1873 | .188 | .250 | |
| CBS-A2-4 | 0.12-1/4 | 303 Stainless Steel | .1200 | .2498 | .188 | .312 | |
| CBS-A2-5 | 1/8-1/8 | 303 Stainless Steel | .1248 | .1248 | .188 | .188 | |
| CBS-A2-6 | 1/8-3/16 | 303 Stainless Steel | .1248 | .1873 | .188 | .250 | |
| CBS-A2-7 | 1/8-1/4 | 303 Stainless Steel | .1248 | .2498 | .188 | .312 | |
| CBS-A2-8 | 3/16-3/16 | 303 Stainless Steel | .1873 | .1873 | .250 | .250 | |
| CBS-A2-9 | 3/16-1/4 | 303 Stainless Steel | .1873 | .2498 | .250 | .312 | |
| CBS-A2-10 | 1/4-1/4 | 303 Stainless Steel | .2498 | .2498 | .312 | .312 | |
