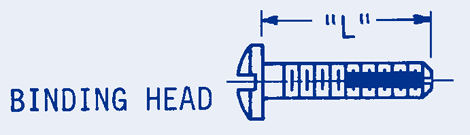

Locking Machine Screws - Binding Head, Inch
|
|
| Material: stainless steel. Class 2A thread. | |
- TH= Thread
- L = Length
| Part | Thread | Length | |
|---|---|---|---|
| Buy | View | ||
| DJX-A1-1 | #0-80 | 1/8 | |
| DJX-A1-2 | #0-80 | 3/16 | |
| DJX-A1-3 | #0-80 | 1/4 | |
| DJX-A1-4 | #0-80 | 5/16 | |
| DJX-A1-5 | #0-80 | 3/8 | |
| DJX-A1-6 | #0-80 | 1/2 | |
| DJX-A2-2 | #2-56 | 3/16 | |
| DJX-A2-3 | #2-56 | 1/4 | |
| DJX-A2-4 | #2-56 | 5/16 | |
| DJX-A2-5 | #2-56 | 3/8 | |
| DJX-A2-6 | #2-56 | 1/2 | |
| DJX-A3-2 | #4-40 | 3/16 | |
| DJX-A3-3 | #4-40 | 1/4 | |
| DJX-A3-4 | #4-40 | 5/16 | |
| DJX-A3-5 | #4-40 | 3/8 | |
| DJX-A3-6 | #4-40 | 1/2 | |
| DJX-A3-7 | #4-40 | 5/8 | |
| DJX-A4-2 | #6-32 | 3/16 | |
| DJX-A4-3 | #6-32 | 1/4 | |
| DJX-A4-4 | #6-32 | 5/16 | |
| DJX-A4-5 | #6-32 | 3/8 | |
| DJX-A4-6 | #6-32 | 1/2 | |
| DJX-A4-7 | #6-32 | 5/8 | |
| DJX-A4-8 | #6-32 | 3/4 | |
| DJX-A5-3 | #8-32 | 1/4 | |
| DJX-A5-4 | #8-32 | 5/16 | |
| DJX-A5-5 | #8-32 | 3/8 | |
| DJX-A5-6 | #8-32 | 1/2 | |
| DJX-A5-7 | #8-32 | 5/8 | |
| DJX-A5-8 | #8-32 | 3/4 | |
| DJX-A5-9 | #8-32 | 1 | |
| DJX-A6-3 | #10-24 | 1/4 | |
| DJX-A6-4 | #10-24 | 5/16 | |
| DJX-A6-5 | #10-24 | 3/8 | |
| DJX-A6-6 | #10-24 | 1/2 | |
| DJX-A6-7 | #10-24 | 5/8 | |
| DJX-A6-8 | #10-24 | 3/4 | |
| DJX-A6-9 | #10-24 | 1 | |
| DJX-A7-3 | #10-32 | 1/4 | |
| DJX-A7-4 | #10-32 | 5/16 | |
| DJX-A7-5 | #10-32 | 3/8 | |
| DJX-A7-6 | #10-32 | 1/2 | |
| DJX-A7-7 | #10-32 | 5/8 | |
| DJX-A7-8 | #10-32 | 3/4 | |
| DJX-A7-9 | #10-32 | 1 | |
| DJX-A8-5 | 1/4-20 | 3/8 | |
| DJX-A8-6 | 1/4-20 | 1/2 | |
| DJX-A8-7 | 1/4/20 | 5/8 | |
| DJX-A8-8 | 1/4-20 | 3/4 | |
| DJX-A8-9 | 1/4-20 | 1 | |
