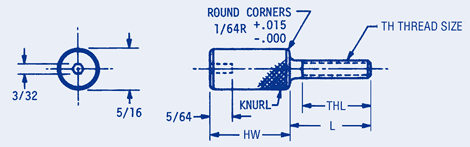

Knurled Thumb Screws Socket Heavy Head 5/16 Head size
|
|
| Material: 303 stainless steel | |
- TH= Thread Size
- L = Length
- THL = Thread Length
- HW = Head Width
| Part | Thread Size | Length | Thread Length | Head Width | |
|---|---|---|---|---|---|
| Buy | View | ||||
| JKS-D1-1 | # 4-40 | 1/2 | 7/16 | 1/2 | |
| JKS-D1-2 | # 4-40 | 3/4 | 5/8 | 1/2 | |
| JKS-D1-3 | # 6-32 | 1/2 | 7/16 | 1/2 | |
| JKS-D1-4 | # 6-32 | 3/4 | 5/8 | 1/2 | |
| JKS-D1-5 | # 6-32 | 1 | 13/16 | 1/2 | |
| JKS-D1-6 | # 8-32 | 1/2 | 7/16 | 1/2 | |
| JKS-D1-7 | # 8-32 | 3/4 | 5/8 | 1/2 | |
| JKS-D1-8 | # 8-32 | 1 | 13/16 | 1/2 | |
| JKS-D1-9 | #10-24 | 1/2 | 7/16 | 3/16 | |
| JKS-D1-10 | # 10-24 | 3/4 | 5/8 | 3/16 | |
| JKS-D1-11 | # 10-24 | 1 | 13/16 | 3/16 | |
| JKS-D1-12 | #10-24 | 1 1/4 | 1 | 3/16 | |
| JKS-D1-13 | # 10-32 | 1/2 | 7/16 | 3/16 | |
| JKS-D1-14 | # 10-32 | 3/4 | 5/8 | 3/16 | |
| JKS-D1-15 | # 10-32 | 1 | 13/16 | 3/16 | |
| JKS-D1-16 | # 10-32 | 1 1/4 | 1 | 3/16 | |
