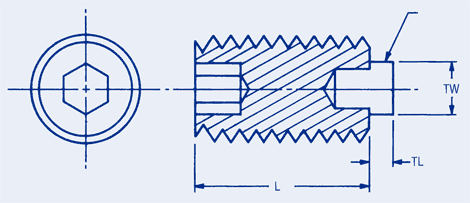

Brass Tip Set Screws, Hex Socket Drive, Metric
|
|
| Alloy Steel screws are Heat Treated with a Black Oxide Finish. | |
- M= Material
- L = Length
- TW = Tip Width
- TL = Tip Length
- TH= Thread
| Part | Material | Length | Tip Width | Tip Length | Thread | |
|---|---|---|---|---|---|---|
| Buy | View | |||||
| DEX-M1-3 | 300 Series Stainless Steel | 3.0 | 1.6 | .8 | M3 | |
| DEX-M1-4 | 300 Series Stainless Steel | 6.0 | 1.6 | .8 | M3 | |
| DEX-M1-6 | 300 Series Stainless Steel | 4.0 | 2.4 | 1.2 | M4 | |
| DEX-M1-7 | 300 Series Stainless Steel | 6.0 | 2.4 | 1.2 | M4 | |
| DEX-M1-8 | 300 Series Stainless Steel | 10.0 | 2.4 | 1.2 | M4 | |
| DEX-M1-9 | 300 Series Stainless Steel | 6.0 | 3.2 | 1.6 | M5 | |
| DEX-M1-10 | 300 Series Stainless Steel | 10.0 | 3.2 | 1.6 | M5 | |
| DEX-M1-11 | 300 Series Stainless Steel | 16.0 | 3.2 | 1.6 | M5 | |
| DEX-M1-12 | Alloy steel | 6.0 | 3.2 | 1.6 | M6 | |
| DEX-M1-13 | Alloy steel | 10.0 | 3.2 | 1.6 | M6 | |
| DEX-M1-14 | Alloy steel | 16.0 | 3.2 | 1.6 | M6 | |
| DEX-M1-15 | Alloy steel | 25.0 | 3.2 | 1.6 | M6 | |
| DEX-M1-16 | Alloy steel | 6.0 | 4.8 | 1.6 | M8 | |
| DEX-M1-17 | Alloy steel | 10.0 | 4.8 | 1.6 | M8 | |
| DEX-M1-18 | Alloy steel | 16.0 | 4.8 | 1.6 | M8 | |
| DEX-M1-19 | Alloy steel | 25.0 | 4.8 | 1.6 | M8 | |
| DEX-M1-20 | Alloy steel | 10.0 | 4.8 | 2.4 | M10 | |
| DEX-M1-21 | Alloy steel | 16.0 | 4.8 | 2.4 | M10 | |
| DEX-M1-22 | Alloy steel | 25.0 | 4.8 | 2.4 | M10 | |
| DEX-M1-23 | 300 Series Stainless Steel | 8.0 | 1.6 | .8 | M3 | |
| DEX-M1-24 | 300 Series Stainless Steel | 10.0 | 1.6 | .8 | M3 | |
