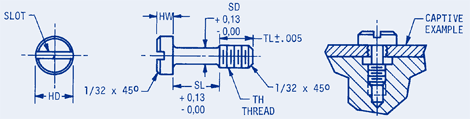

Captive Screw Slotted and Socket Head, Metric
|
|
| Material: 303 Stainless Steel | |
- SL = Shoulder Length
- SD = Shoulder Diameter
- TL = Thread Length
- HW = Head Width
- HD = Head Diameter
- TH = Thread
- HS = Head Sytle
| Part | Shoulder Length | Shoulder Diameter | Thread Length | Head Width | Head Diameter | Thread | Head Sytle | |
|---|---|---|---|---|---|---|---|---|
| Buy | View | |||||||
| DCS-M1-1 | 6.75 | 2.14 | 4.50 | 2.0 | 5.2 | M3 | Slotted Head | |
| DCS-M1-2 | 8.25 | 2.14 | 4.50 | 2.0 | 5.2 | M3 | Slotted Head | |
| DCS-M1-3 | 9.75 | 2.89 | 6.00 | 2.8 | 7.0 | M4 | Slotted Head | |
| DCS-M1-4 | 11.75 | 2.89 | 6.00 | 2.8 | 7.0 | M4 | Slotted Head | |
| DCS-M1-5 | 12.75 | 2.89 | 6.00 | 2.8 | 7.0 | M4 | Slotted Head | |
| DCS-M1-6 | 13.25 | 3.77 | 7.50 | 3.5 | 9.0 | M5 | Slotted Head | |
| DCS-M1-7 | 14.25 | 3.77 | 7.50 | 3.5 | 9.0 | M5 | Slotted Head | |
| DCS-M2-1 | 6.75 | 2.14 | 4.50 | 2.0 | 5.2 | M3 | Socket Head | |
| DCS-M2-2 | 8.25 | 2.14 | 4.50 | 2.0 | 5.2 | M3 | Socket Head | |
| DCS-M2-3 | 9.75 | 2.89 | 6.00 | 2.8 | 7.0 | M4 | Socket Head | |
| DCS-M2-4 | 11.75 | 2.89 | 6.00 | 2.8 | 7.0 | M4 | Socket Head | |
| DCS-M2-5 | 12.75 | 2.89 | 6.00 | 2.8 | 7.0 | M4 | Socket Head | |
| DCS-M2-6 | 13.25 | 3.77 | 7.50 | 3.5 | 9.0 | M5 | Socket Head | |
| DCS-M2-7 | 14.25 | 3.77 | 7.50 | 3.5 | 9.0 | M5 | Socket Head | |
