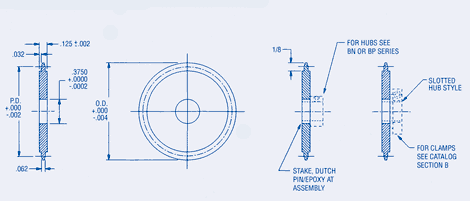

Miniature Chain Sprockets Hubless .1475 pitch
|
|
| Aluminum Sprockets are chromic acid anodized before gear cutting. | |
- PD = Pitch Diameter
- OD = Outside Diameter
- T = Number of Teeth
- M= Material
| Part | Pitch Diameter | Outside Diameter | Number of Teeth | Material | |
|---|---|---|---|---|---|
| Buy | View | ||||
| FDA-A4-27 | 1.270 | 1.322 | 27 | 2024-T4 Aluminum | |
| FDA-A4-28 | 1.317 | 1.369 | 28 | 2024-T4 Aluminum | |
| FDA-A4-29 | 1.364 | 1.416 | 29 | 2024-T4 Aluminum | |
| FDA-A4-30 | 1.411 | 1.463 | 30 | 2024-T4 Aluminum | |
| FDA-A4-31 | 1.458 | 1.510 | 31 | 2024-T4 Aluminum | |
| FDA-A4-32 | 1.505 | 1.557 | 32 | 2024-T4 Aluminum | |
| FDA-A4-33 | 1.552 | 1.604 | 33 | 2024-T4 Aluminum | |
| FDA-A4-34 | 1.598 | 1.650 | 34 | 2024-T4 Aluminum | |
| FDA-A4-35 | 1.645 | 1.697 | 35 | 2024-T4 Aluminum | |
| FDA-A4-36 | 1.692 | 1.744 | 36 | 2024-T4 Aluminum | |
| FDA-A4-38 | 1.786 | 1.838 | 38 | 2024-T4 Aluminum | |
| FDA-A4-40 | 1.880 | 1.932 | 40 | 2024-T4 Aluminum | |
| FDA-A4-42 | 1.974 | 2.026 | 42 | 2024-T4 Aluminum | |
| FDA-A4-44 | 2.068 | 2.120 | 44 | 2024-T4 Aluminum | |
| FDA-A4-45 | 2.114 | 2.166 | 45 | 2024-T4 Aluminum | |
| FDA-A4-48 | 2.255 | 2.307 | 48 | 2024-T4 Aluminum | |
| FDA-A4-50 | 2.349 | 2.401 | 50 | 2024-T4 Aluminum | |
| FDA-A4-52 | 2.443 | 2.495 | 52 | 2024-T4 Aluminum | |
| FDA-A4-54 | 2.537 | 2.589 | 54 | 2024-T4 Aluminum | |
| FDA-A4-55 | 2.584 | 2.636 | 55 | 2024-T4 Aluminum | |
| FDA-A4-56 | 2.631 | 2.683 | 56 | 2024-T4 Aluminum | |
| FDA-A4-60 | 2.818 | 2.870 | 60 | 2024-T4 Aluminum | |
| FDA-A4-65 | 3.053 | 3.105 | 65 | 2024-T4 Aluminum | |
| FDA-A4-70 | 3.288 | 3.340 | 70 | 2024-T4 Aluminum | |
| FDA-A4-72 | 3.382 | 3.434 | 72 | 2024-T4 Aluminum | |
| FDA-A4-75 | 3.522 | 3.574 | 75 | 2024-T4 Aluminum | |
| FDA-A4-80 | 3.757 | 3.809 | 80 | 2024-T4 Aluminum | |
| FDA-A4-85 | 3.992 | 4.044 | 85 | 2024-T4 Aluminum | |
| FDN-A4-27 | 1.270 | 1.322 | 27 | Nylon | |
| FDN-A4-28 | 1.317 | 1.369 | 28 | Nylon | |
| FDN-A4-29 | 1.364 | 1.416 | 29 | Nylon | |
| FDN-A4-30 | 1.411 | 1.463 | 30 | Nylon | |
| FDN-A4-31 | 1.458 | 1.510 | 31 | Nylon | |
| FDN-A4-32 | 1.505 | 1.557 | 32 | Nylon | |
| FDN-A4-33 | 1.552 | 1.604 | 33 | Nylon | |
| FDN-A4-34 | 1.598 | 1.650 | 34 | Nylon | |
| FDN-A4-35 | 1.645 | 1.697 | 35 | Nylon | |
| FDN-A4-36 | 1.692 | 1.744 | 36 | Nylon | |
| FDN-A4-38 | 1.786 | 1.838 | 38 | Nylon | |
| FDN-A4-40 | 1.880 | 1.932 | 40 | Nylon | |
| FDN-A4-42 | 1.974 | 2.026 | 42 | Nylon | |
| FDN-A4-44 | 2.068 | 2.120 | 44 | Nylon | |
| FDN-A4-45 | 2.114 | 2.166 | 45 | Nylon | |
| FDN-A4-48 | 2.255 | 2.307 | 48 | Nylon | |
| FDN-A4-50 | 2.349 | 2.401 | 50 | Nylon | |
| FDN-A4-52 | 2.443 | 2.495 | 52 | Nylon | |
| FDN-A4-54 | 2.537 | 2.589 | 54 | Nylon | |
| FDN-A4-55 | 2.584 | 2.636 | 55 | Nylon | |
| FDN-A4-56 | 2.631 | 2.683 | 56 | Nylon | |
| FDN-A4-60 | 2.818 | 2.870 | 60 | Nylon | |
| FDN-A4-65 | 3.053 | 3.105 | 65 | Nylon | |
| FDN-A4-70 | 3.288 | 3.340 | 70 | Nylon | |
| FDN-A4-72 | 3.382 | 3.434 | 72 | Nylon | |
| FDN-A4-75 | 3.522 | 3.574 | 75 | Nylon | |
| FDN-A4-80 | 3.757 | 3.809 | 80 | Nylon | |
| FDN-A4-85 | 3.992 | 4.044 | 85 | Nylon | |
| FDS-A4-27 | 1.270 | 1.322 | 27 | 303 Stainless Steel | |
| FDS-A4-28 | 1.317 | 1.369 | 28 | 303 Stainless Steel | |
| FDS-A4-29 | 1.364 | 1.416 | 29 | 303 Stainless Steel | |
| FDS-A4-30 | 1.411 | 1.463 | 30 | 303 Stainless Steel | |
| FDS-A4-31 | 1.458 | 1.510 | 31 | 303 Stainless Steel | |
| FDS-A4-32 | 1.505 | 1.557 | 32 | 303 Stainless Steel | |
| FDS-A4-33 | 1.552 | 1.604 | 33 | 303 Stainless Steel | |
| FDS-A4-34 | 1.598 | 1.650 | 34 | 303 Stainless Steel | |
| FDS-A4-35 | 1.645 | 1.697 | 35 | 303 Stainless Steel | |
| FDS-A4-36 | 1.692 | 1.744 | 36 | 303 Stainless Steel | |
| FDS-A4-38 | 1.786 | 1.838 | 38 | 303 Stainless Steel | |
| FDS-A4-40 | 1.880 | 1.932 | 40 | 303 Stainless Steel | |
| FDS-A4-42 | 1.974 | 2.026 | 42 | 303 Stainless Steel | |
| FDS-A4-44 | 2.068 | 2.120 | 44 | 303 Stainless Steel | |
| FDS-A4-45 | 2.114 | 2.166 | 45 | 303 Stainless Steel | |
| FDS-A4-48 | 2.255 | 2.307 | 48 | 303 Stainless Steel | |
| FDS-A4-50 | 2.349 | 2.401 | 50 | 303 Stainless Steel | |
| FDS-A4-52 | 2.443 | 2.495 | 52 | 303 Stainless Steel | |
| FDS-A4-54 | 2.537 | 2.589 | 54 | 303 Stainless Steel | |
| FDS-A4-55 | 2.584 | 2.636 | 55 | 303 Stainless Steel | |
| FDS-A4-56 | 2.631 | 2.683 | 56 | 303 Stainless Steel | |
| FDS-A4-60 | 2.818 | 2.870 | 60 | 303 Stainless Steel | |
| FDS-A4-65 | 3.053 | 3.105 | 65 | 303 Stainless Steel | |
| FDS-A4-70 | 3.288 | 3.340 | 70 | 303 Stainless Steel | |
| FDS-A4-72 | 3.382 | 3.434 | 72 | 303 Stainless Steel | |
| FDS-A4-75 | 3.522 | 3.574 | 75 | 303 Stainless Steel | |
| FDS-A4-80 | 3.757 | 3.809 | 80 | 303 Stainless Steel | |
| FDS-A4-85 | 3.992 | 4.044 | 85 | 303 Stainless Steel | |
