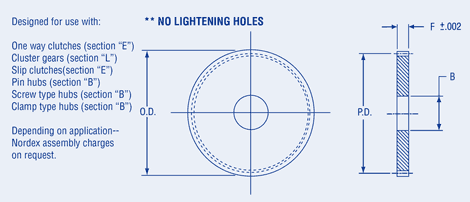

Spur Gear-Hubless-96 Pitch
|
|
| AGMA Quality 10 gears. 20 degree pressure angle. Aluminum gears are anodized before gear cutting. | |
- T= Number of Teeth
- PD = Pitch Diameter
- B = Bore
- F = Face Width
- OD = Outside Diameter
- M= Material
| Part | Number of Teeth | Pitch Diameter | Bore | Face Width | Outside Diameter | Material | |
|---|---|---|---|---|---|---|---|
| Buy | View | .37500 | |||||
| LCA-J1-58 | 58 | .6041 | .3750 | .062 | .625 | 2024-T4 Aluminum | |
| LCA-J1-59 | 59 | .6145 | .3750 | .062 | .635 | 2024-T4 Aluminum | |
| LCA-J1-60 | 60 | .6250 | .3750 | .062 | .646 | 2024-T4 Aluminum | |
| LCA-J1-61 | 61 | .6354 | .3750 | .062 | .656 | 2024-T4 Aluminum | |
| LCA-J1-62 | 62 | .6458 | .3750 | .062 | .667 | 2024-T4 Aluminum | |
| LCA-J1-63 | 63 | .6562 | .3750 | .062 | .677 | 2024-T4 Aluminum | |
| LCA-J1-64 | 64 | .6666 | .3750 | .062 | .688 | 2024-T4 Aluminum | |
| LCA-J1-65 | 65 | .6770 | .3750 | .062 | .698 | 2024-T4 Aluminum | |
| LCA-J1-66 | 66 | .6875 | .3750 | .062 | .708 | 2024-T4 Aluminum | |
| LCA-J1-72 | 72 | .7500 | .3750 | .062 | .771 | 2024-T4 Aluminum | |
| LCA-J1-84 | 84 | .8750 | .3750 | .062 | .896 | 2024-T4 Aluminum | |
| LCA-J1-96 | 96 | 1.0000 | .3750 | .062 | 1.021 | 2024-T4 Aluminum | |
| LCA-J1-100 | 100 | 1.0416 | .3750 | .062 | 1.063 | 2024-T4 Aluminum | |
| LCA-J1-108 | 108 | 1.1250 | .3750 | .062 | 1.146 | 2024-T4 Aluminum | |
| LCA-J1-116 | 116 | 1.2083 | .3750 | .062 | 1.229 | 2024-T4 Aluminum | |
| LCA-J1-120 | 120 | 1.2500 | .3750 | .062 | 1.271 | 2024-T4 Aluminum | |
| LCA-J1-127 | 127 | 1.3229 | .3750 | .062 | 1.344 | 2024-T4 Aluminum | |
| LCA-J1-132 | 132 | 1.3750 | .3750 | .062 | 1.396 | 2024-T4 Aluminum | |
| LCA-J1-144 | 144 | 1.5000 | .3750 | .062 | 1.521 | 2024-T4 Aluminum | |
| LCA-J1-156 | 156 | 1.6250 | .3750 | .062 | 1.646 | 2024-T4 Aluminum | |
| LCA-J1-168 | 168 | 1.7500 | .3750 | .062 | 1.771 | 2024-T4 Aluminum | |
| LCA-J1-180 | 180 | 1.8750 | .3750 | .062 | 1.896 | 2024-T4 Aluminum | |
| LCA-J1-192 | 192 | 2.0000 | .3750 | .062 | 2.021 | 2024-T4 Aluminum | |
| LCA-J1-216 | 216 | 2.2500 | .3750 | .062 | 2.271 | 2024-T4 Aluminum | |
| LCA-J1-228 | 228 | 2.3750 | .3750 | .062 | 2.396 | 2024-T4 Aluminum | |
| LCA-J2-58 | 58 | .6041 | .3750 | .125 | .625 | 2024-T4 Aluminum | |
| LCA-J2-59 | 59 | .6145 | .3750 | .125 | .635 | 2024-T4 Aluminum | |
| LCA-J2-60 | 60 | .6250 | .3750 | .125 | .646 | 2024-T4 Aluminum | |
| LCA-J2-61 | 61 | .6354 | .3750 | .125 | .656 | 2024-T4 Aluminum | |
| LCA-J2-62 | 62 | .6458 | .3750 | .125 | .667 | 2024-T4 Aluminum | |
| LCA-J2-63 | 63 | .6562 | .3750 | .125 | .677 | 2024-T4 Aluminum | |
| LCA-J2-64 | 64 | .6666 | .3750 | .125 | .688 | 2024-T4 Aluminum | |
| LCA-J2-65 | 65 | .6770 | .3750 | .125 | .698 | 2024-T4 Aluminum | |
| LCA-J2-66 | 66 | .6875 | .3750 | .125 | .708 | 2024-T4 Aluminum | |
| LCA-J2-72 | 72 | .7500 | .3750 | .125 | .771 | 2024-T4 Aluminum | |
| LCA-J2-84 | 84 | .8750 | .3750 | .125 | .896 | 2024-T4 Aluminum | |
| LCA-J2-96 | 96 | 1.0000 | .3750 | .125 | 1.021 | 2024-T4 Aluminum | |
| LCA-J2-100 | 100 | 1.0416 | .3750 | .125 | 1.063 | 2024-T4 Aluminum | |
| LCA-J2-108 | 108 | 1.1250 | .3750 | .125 | 1.146 | 2024-T4 Aluminum | |
| LCA-J2-116 | 116 | 1.2083 | .3750 | .125 | 1.229 | 2024-T4 Aluminum | |
| LCA-J2-120 | 120 | 1.2500 | .3750 | .125 | 1.271 | 2024-T4 Aluminum | |
| LCA-J2-127 | 127 | 1.3220 | .3750 | .125 | 1.344 | 2024-T4 Aluminum | |
| LCA-J2-132 | 132 | 1.3750 | .3750 | .125 | 1.396 | 2024-T4 Aluminum | |
| LCA-J2-144 | 144 | 1.5000 | .3750 | .125 | 1.521 | 2024-T4 Aluminum | |
| LCA-J2-156 | 156 | 1.6250 | .3750 | .125 | 1.646 | 2024-T4 Aluminum | |
| LCA-J2-168 | 168 | 1.7500 | .3750 | .125 | 1.771 | 2024-T4 Aluminum | |
| LCA-J2-180 | 180 | 1.8750 | .3750 | .125 | 1.896 | 2024-T4 Aluminum | |
| LCA-J2-192 | 192 | 2.0000 | .3750 | .125 | 2.021 | 2024-T4 Aluminum | |
| LCA-J2-216 | 216 | 2.2500 | .3750 | .125 | 2.271 | 2024-T4 Aluminum | |
| LCA-J2-228 | 228 | 2.3750 | .3750 | .125 | 2.396 | 2024-T4 Aluminum | |
| LCA-J2-240 | 240 | 2.5000 | .3750 | .125 | 2.521 | 2024-T4 Aluminum | |
| LCA-J2-264 | 264 | 2.7500 | .3750 | .125 | 2.771 | 2024-T4 Aluminum | |
| LCA-J2-288 | 288 | 3.0000 | .3750 | .125 | 3.021 | 2024-T4 Aluminum | |
| LCA-J2-336 | 336 | 3.5000 | .3750 | .125 | 3.521 | 2024-T4 Aluminum | |
| LCA-J2-384 | 384 | 4.0000 | .3750 | .125 | 4.021 | 2024-T4 Aluminum | |
| LCA-J3-96 | 96 | 1.0000 | .3750 | .093 | 1.021 | 2024-T4 Aluminum | |
| LCA-J3-100 | 100 | 1.0416 | .3750 | .093 | 1.063 | 2024-T4 Aluminum | |
| LCA-J3-105 | 105 | 1.0938 | .3750 | .093 | 1.115 | 2024-T4 Aluminum | |
| LCA-J3-108 | 108 | 1.1250 | .3750 | .093 | 1.146 | 2024-T4 Aluminum | |
| LCA-J3-110 | 110 | 1.1458 | .3750 | .093 | 1.167 | 2024-T4 Aluminum | |
| LCA-J3-120 | 120 | 1.2500 | .3750 | .093 | 1.271 | 2024-T4 Aluminum | |
| LCA-J3-125 | 125 | 1.3020 | .3750 | .093 | 1.323 | 2024-T4 Aluminum | |
| LCA-J3-132 | 132 | 1.3750 | .3750 | .093 | 1.396 | 2024-T4 Aluminum | |
| LCA-J3-140 | 140 | 1.4583 | .3750 | .093 | 1.479 | 2024-T4 Aluminum | |
| LCA-J3-144 | 144 | 1.5000 | .3750 | .093 | 1.521 | 2024-T4 Aluminum | |
| LCA-J3-150 | 150 | 1.5625 | .3750 | .093 | 1.583 | 2024-T4 Aluminum | |
| LCA-J3-160 | 160 | 1.6667 | .3750 | .093 | 1.688 | 2024-T4 Aluminum | |
| LCA-J3-180 | 180 | 1.8750 | .3750 | .093 | 1.896 | 2024-T4 Aluminum | |
| LCA-J3-190 | 190 | 1.9792 | .3750 | .093 | 2.000 | 2024-T4 Aluminum | |
| LCA-J3-192 | 192 | 2.0000 | .3750 | .093 | 2.021 | 2024-T4 Aluminum | |
| LCS-J1-58 | 58 | .6041 | .3750 | .062 | .625 | 303 Stainless Steel | |
| LCS-J1-59 | 59 | .6145 | .3750 | .062 | .635 | 303 Stainless Steel | |
| LCS-J1-60 | 60 | .6250 | .3750 | .062 | .646 | 303 Stainless Steel | |
| LCS-J1-61 | 61 | .6354 | .3750 | .062 | .656 | 303 Stainless Steel | |
| LCS-J1-62 | 62 | .6458 | .3750 | .062 | .667 | 303 Stainless Steel | |
| LCS-J1-63 | 63 | .6562 | .3750 | .062 | .677 | 303 Stainless Steel | |
| LCS-J1-64 | 64 | .6666 | .3750 | .062 | .688 | 303 Stainless Steel | |
| LCS-J1-65 | 65 | .6770 | .3750 | .062 | .698 | 303 Stainless Steel | |
| LCS-J1-66 | 66 | .6875 | .3750 | .062 | .708 | 303 Stainless Steel | |
| LCS-J1-72 | 72 | .7500 | .3750 | .062 | .771 | 303 Stainless Steel | |
| LCS-J1-84 | 84 | .8750 | .3750 | .062 | .896 | 303 Stainless Steel | |
| LCS-J1-96 | 96 | 1.0000 | .3750 | .062 | 1.021 | 303 Stainless Steel | |
| LCS-J1-100 | 100 | 1.0416 | .3750 | .062 | 1.063 | 303 Stainless Steel | |
| LCS-J1-108 | 108 | 1.1250 | .3750 | .062 | 1.146 | 303 Stainless Steel | |
| LCS-J1-116 | 116 | 1.2083 | .3750 | .062 | 1.229 | 303 Stainless Steel | |
| LCS-J1-120 | 120 | 1.2500 | .3750 | .062 | 1.271 | 303 Stainless Steel | |
| LCS-J1-127 | 127 | 1.3229 | .3750 | .062 | 1.344 | 303 Stainless Steel | |
| LCS-J1-132 | 132 | 1.3750 | .3750 | .062 | 1.396 | 303 Stainless Steel | |
| LCS-J1-144 | 144 | 1.5000 | .3750 | .062 | 1.521 | 303 Stainless Steel | |
| LCS-J1-156 | 156 | 1.6250 | .3750 | .062 | 1.646 | 303 Stainless Steel | |
| LCS-J1-168 | 168 | 1.7500 | .3750 | .062 | 1.771 | 303 Stainless Steel | |
| LCS-J1-180 | 180 | 1.8750 | .3750 | .062 | 1.896 | 303 Stainless Steel | |
| LCS-J1-192 | 192 | 2.0000 | .3750 | .062 | 2.021 | 303 Stainless Steel | |
| LCS-J1-216 | 216 | 2.2500 | .3750 | .062 | 2.271 | 303 Stainless Steel | |
| LCS-J1-228 | 228 | 2.3750 | .3750 | .062 | 2.396 | 303 Stainless Steel | |
| LCS-J2-58 | 58 | .6041 | .3750 | .125 | .625 | 303 Stainless Steel | |
| LCS-J2-59 | 59 | .6145 | .3750 | .125 | .635 | 303 Stainless Steel | |
| LCS-J2-60 | 60 | .6250 | .3750 | .125 | .646 | 303 Stainless Steel | |
| LCS-J2-61 | 61 | .6354 | .3750 | .125 | .656 | 303 Stainless Steel | |
| LCS-J2-62 | 62 | .6458 | .3750 | .125 | .667 | 303 Stainless Steel | |
| LCS-J2-63 | 63 | .6562 | .3750 | .125 | .677 | 303 Stainless Steel | |
| LCS-J2-64 | 64 | .6666 | .3750 | .125 | .688 | 303 Stainless Steel | |
| LCS-J2-65 | 65 | .6770 | .3750 | .125 | .698 | 303 Stainless Steel | |
| LCS-J2-66 | 66 | .6875 | .3750 | .125 | .708 | 303 Stainless Steel | |
| LCS-J2-72 | 72 | .7500 | .3750 | .125 | .771 | 303 Stainless Steel | |
| LCS-J2-84 | 84 | .8750 | .3750 | .125 | .896 | 303 Stainless Steel | |
| LCS-J2-96 | 96 | 1.0000 | .3750 | .125 | 1.021 | 303 Stainless Steel | |
| LCS-J2-100 | 100 | 1.0416 | .3750 | .125 | 1.063 | 303 Stainless Steel | |
| LCS-J2-108 | 108 | 1.1250 | .3750 | .125 | 1.146 | 303 Stainless Steel | |
| LCS-J2-116 | 116 | 1.2083 | .3750 | .125 | 1.229 | 303 Stainless Steel | |
| LCS-J2-120 | 120 | 1.2500 | .3750 | .125 | 1.271 | 303 Stainless Steel | |
| LCS-J2-127 | 127 | 1.3220 | .3750 | .125 | 1.344 | 303 Stainless Steel | |
| LCS-J2-132 | 132 | 1.3750 | .3750 | .125 | 1.396 | 303 Stainless Steel | |
| LCS-J2-144 | 144 | 1.5000 | .3750 | .125 | 1.521 | 303 Stainless Steel | |
| LCS-J2-156 | 156 | 1.6250 | .3750 | .125 | 1.646 | 303 Stainless Steel | |
| LCS-J2-168 | 168 | 1.7500 | .3750 | .125 | 1.771 | 303 Stainless Steel | |
| LCS-J2-180 | 180 | 1.8750 | .3750 | .125 | 1.896 | 303 Stainless Steel | |
| LCS-J2-192 | 192 | 2.0000 | .3750 | .125 | 2.021 | 303 Stainless Steel | |
| LCS-J2-216 | 216 | 2.2500 | .3750 | .125 | 2.271 | 303 Stainless Steel | |
| LCS-J2-228 | 228 | 2.3750 | .3750 | .125 | 2.396 | 303 Stainless Steel | |
| LCS-J2-240 | 240 | 2.5000 | .3750 | .125 | 2.521 | 303 Stainless Steel | |
| LCS-J2-264 | 264 | 2.7500 | .3750 | .125 | 2.771 | 303 Stainless Steel | |
| LCS-J2-288 | 288 | 3.0000 | .3750 | .125 | 3.021 | 303 Stainless Steel | |
| LCS-J2-336 | 336 | 3.5000 | .3750 | .125 | 3.521 | 303 Stainless Steel | |
| LCS-J2-384 | 384 | 4.0000 | .3750 | .125 | 4.021 | 303 Stainless Steel | |
| LCS-J3-96 | 96 | 1.0000 | .3750 | .093 | 1.021 | 303 Stainless Steel | |
| LCS-J3-100 | 100 | 1.0416 | .3750 | .093 | 1.063 | 303 Stainless Steel | |
| LCS-J3-105 | 105 | 1.0938 | .3750 | .093 | 1.115 | 303 Stainless Steel | |
| LCS-J3-108 | 108 | 1.1250 | .3750 | .093 | 1.146 | 303 Stainless Steel | |
| LCS-J3-110 | 110 | 1.1458 | .3750 | .093 | 1.167 | 303 Stainless Steel | |
| LCS-J3-120 | 120 | 1.2500 | .3750 | .093 | 1.271 | 303 Stainless Steel | |
| LCS-J3-125 | 125 | 1.3020 | .3750 | .093 | 1.323 | 303 Stainless Steel | |
| LCS-J3-132 | 132 | 1.3750 | .3750 | .093 | 1.396 | 303 Stainless Steel | |
| LCS-J3-140 | 140 | 1.4583 | .3750 | .093 | 1.479 | 303 Stainless Steel | |
| LCS-J3-144 | 144 | 1.5000 | .3750 | .093 | 1.521 | 303 Stainless Steel | |
| LCS-J3-150 | 150 | 1.5625 | .3750 | .093 | 1.583 | 303 Stainless Steel | |
| LCS-J3-160 | 160 | 1.6667 | .3750 | .093 | 1.688 | 303 Stainless Steel | |
| LCS-J3-180 | 180 | 1.8750 | .3750 | .093 | 1.896 | 303 Stainless Steel | |
| LCS-J3-190 | 190 | 1.9792 | .3750 | .093 | 2.000 | 303 Stainless Steel | |
| LCS-J3-192 | 192 | 2.0000 | .3750 | .093 | 2.021 | 303 Stainless Steel | |
