Spur Gear-Pin Hub 20 Pitch
|
|
| 20 degree pressure angle 6-32 set screw. AGMA Quality 10. Aluminum anodized before gear cutting. | |

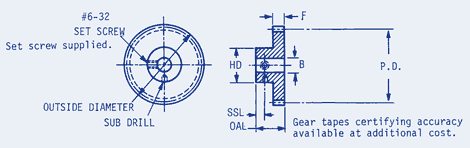

- T= Number of Teeth
- PD = Pitch Diameter
- B = Bore
- F = Face Width
- OD = Outside Diameter
- HD = Hub Diameter
- OAL = Over All Length
- SSL = Set Screw Location
- M= Material
| Part | Number of Teeth | Pitch Diameter | Bore | Face Width | Outside Diameter | Hub Diameter | Over All Length | Set Screw Location | Material | |
|---|---|---|---|---|---|---|---|---|---|---|
| Buy | View | |||||||||
| LAA-B3-14 | 14 | .700 | .2498 | .187 | .800 | .50000 | .43700 | .12000 | 2024-T4 Aluminum | |
| LAA-B3-15 | 15 | .750 | .2498 | .187 | .850 | .50000 | .43700 | .12000 | 2024-T4 Aluminum | |
| LAA-B3-16 | 16 | .800 | .2498 | .187 | .900 | .50000 | .43700 | .12000 | 2024-T4 Aluminum | |
| LAA-B3-18 | 18 | .900 | .2498 | .187 | 1.000 | .50000 | .43700 | .12000 | 2024-T4 Aluminum | |
| LAA-B3-20 | 20 | 1.000 | .2498 | .187 | 1.100 | .50000 | .43700 | .12000 | 2024-T4 Aluminum | |
| LAA-B3-24 | 24 | 1.200 | .2498 | .187 | 1.300 | .50000 | .43700 | .12000 | 2024-T4 Aluminum | |
| LAA-B3-25 | 25 | 1.250 | .2498 | .187 | 1.350 | .50000 | .43700 | .12000 | 2024-T4 Aluminum | |
| LAA-B3-28 | 28 | 1.400 | .2498 | .187 | 1.500 | .50000 | .43700 | .12000 | 2024-T4 Aluminum | |
| LAA-B3-30 | 30 | 1.500 | .2498 | .187 | 1.600 | .50000 | .43700 | .12000 | 2024-T4 Aluminum | |
| LAA-B3-33 | 33 | 1.650 | .2498 | .187 | 1.750 | .50000 | .43700 | .12000 | 2024-T4 Aluminum | |
| LAA-B3-36 | 36 | 1.800 | .2498 | .187 | 1.900 | .50000 | .43700 | .12000 | 2024-T4 Aluminum | |
| LAA-B3-40 | 40 | 2.000 | .2498 | .187 | 2.100 | .50000 | .43700 | .12000 | 2024-T4 Aluminum | |
| LAA-B3-42 | 42 | 2.100 | .2498 | .187 | 2.200 | .50000 | .43700 | .12000 | 2024-T4 Aluminum | |
| LAA-B3-48 | 48 | 2.400 | .2498 | .187 | 2.500 | .50000 | .43700 | .12000 | 2024-T4 Aluminum | |
| LAA-B3-50 | 50 | 2.500 | .2498 | .187 | 2.600 | .50000 | .43700 | .12000 | 2024-T4 Aluminum | |
| LAA-B3-54 | 54 | 2.700 | .2498 | .187 | 2.800 | .50000 | .43700 | .12000 | 2024-T4 Aluminum | |
| LAA-B3-60 | 60 | 3.000 | .2498 | .187 | 3.100 | .50000 | .43700 | .12000 | 2024-T4 Aluminum | |
| LAA-B3-66 | 66 | 3.300 | .2498 | .187 | 3.400 | .50000 | .43700 | .12000 | 2024-T4 Aluminum | |
| LAA-B3-70 | 70 | 3.500 | .2498 | .187 | 3.600 | .50000 | .43700 | .12000 | 2024-T4 Aluminum | |
| LAA-B3-80 | 80 | 4.000 | .2498 | .187 | 4.100 | .50000 | .43700 | .12000 | 2024-T4 Aluminum | |
| LAB-B1-12 | 12 | .600 | .3750 | .375 | .700 | .75000 | .75000 | .19000 | Bronze | |
| LAB-B1-14 | 14 | .700 | .3750 | .375 | .800 | .75000 | .75000 | .19000 | Bronze | |
| LAB-B1-15 | 15 | .750 | .3750 | .375 | .850 | .75000 | .75000 | .19000 | Bronze | |
| LAB-B1-16 | 16 | .800 | .3750 | .375 | .900 | .75000 | .75000 | .19000 | Bronze | |
| LAB-B1-18 | 18 | .900 | .3750 | .375 | 1.000 | .75000 | .75000 | .19000 | Bronze | |
| LAB-B1-20 | 20 | 1.000 | .3750 | .375 | 1.100 | .75000 | .75000 | .19000 | Bronze | |
| LAB-B1-24 | 24 | 1.200 | .3750 | .375 | 1.300 | .75000 | .75000 | .19000 | Bronze | |
| LAB-B1-28 | 28 | 1.400 | .3750 | .375 | 1.500 | .75000 | .75000 | .19000 | Bronze | |
| LAB-B1-30 | 30 | 1.500 | .3750 | .375 | 1.600 | .75000 | .75000 | .19000 | Bronze | |
| LAB-B1-36 | 36 | 1.800 | .3750 | .375 | 1.900 | .75000 | .75000 | .19000 | Bronze | |
| LAS-B1-12 | 12 | .600 | .3750 | .375 | .700 | .75000 | .75000 | .19000 | 303 Stainless Steel | |
| LAS-B1-14 | 14 | .700 | .3750 | .375 | .800 | .75000 | .75000 | .19000 | 303 Stainless Steel | |
| LAS-B1-15 | 15 | .750 | .3750 | .375 | .850 | .75000 | .75000 | .19000 | 303 Stainless Steel | |
| LAS-B1-16 | 16 | .800 | .3750 | .375 | .900 | .75000 | .75000 | .19000 | 303 Stainless Steel | |
| LAS-B1-18 | 18 | .900 | .3750 | .375 | 1.000 | .75000 | .75000 | .19000 | 303 Stainless Steel | |
| LAS-B1-20 | 20 | 1.000 | .3750 | .375 | 1.100 | .75000 | .75000 | .19000 | 303 Stainless Steel | |
| LAS-B1-24 | 24 | 1.200 | .3750 | .375 | 1.300 | .75000 | .75000 | .19000 | 303 Stainless Steel | |
| LAS-B1-28 | 28 | 1.400 | .3750 | .375 | 1.500 | .75000 | .75000 | .19000 | 303 Stainless Steel | |
| LAS-B1-30 | 30 | 1.500 | .3750 | .375 | 1.600 | .75000 | .75000 | .19000 | 303 Stainless Steel | |
| LAS-B1-36 | 36 | 1.800 | .3750 | .375 | 1.900 | .75000 | .75000 | .19000 | 303 Stainless Steel | |
| LAS-B2-14 | 14 | .700 | .3123 | .250 | .800 | .75000 | .62500 | .18000 | 303 Stainless Steel | |
| LAS-B2-15 | 15 | .750 | .3123 | .250 | .850 | .75000 | .62500 | .18000 | 303 Stainless Steel | |
| LAS-B2-16 | 16 | .800 | .3123 | .250 | .900 | .75000 | .62500 | .18000 | 303 Stainless Steel | |
| LAS-B2-18 | 18 | .900 | .3123 | .250 | 1.000 | .75000 | .62500 | .18000 | 303 Stainless Steel | |
| LAS-B2-20 | 20 | 1.000 | .3123 | .250 | 1.100 | .75000 | .62500 | .18000 | 303 Stainless Steel | |
| LAS-B2-24 | 24 | 1.200 | .3123 | .250 | 1.300 | .75000 | .62500 | .18000 | 303 Stainless Steel | |
| LAS-B2-25 | 25 | 1.250 | .3123 | .250 | 1.350 | .75000 | .62500 | .18000 | 303 Stainless Steel | |
| LAS-B2-28 | 28 | 1.400 | .3123 | .250 | 1.500 | .75000 | .62500 | .18000 | 303 Stainless Steel | |
| LAS-B2-30 | 30 | 1.500 | .3123 | .250 | 1.600 | .75000 | .62500 | .18000 | 303 Stainless Steel | |
| LAS-B2-33 | 33 | 1.650 | .3123 | .250 | 1.750 | .75000 | .62500 | .18000 | 303 Stainless Steel | |
| LAS-B2-36 | 36 | 1.800 | .3123 | .250 | 1.900 | .75000 | .62500 | .18000 | 303 Stainless Steel | |
| LAS-B2-40 | 40 | 2.000 | .3123 | .250 | 2.100 | .75000 | .62500 | .18000 | 303 Stainless Steel | |
| LAS-B2-42 | 42 | 2.100 | .3123 | .250 | 2.200 | .75000 | .62500 | .18000 | 303 Stainless Steel | |
| LAS-B2-48 | 48 | 2.400 | .3123 | .250 | 2.500 | .75000 | .62500 | .18000 | 303 Stainless Steel | |
| LAS-B2-50 | 50 | 2.500 | .3123 | .250 | 2.600 | .75000 | .62500 | .18000 | 303 Stainless Steel | |
| LAS-B2-54 | 54 | 2.700 | .3123 | .250 | 2.800 | .75000 | .62500 | .18000 | 303 Stainless Steel | |
| LAS-B2-60 | 60 | 3.000 | .3123 | .250 | 3.100 | .75000 | .62500 | .18000 | 303 Stainless Steel | |
| LAS-B2-66 | 66 | 3.300 | .3123 | .250 | 3.400 | .75000 | .62500 | .18000 | 303 Stainless Steel | |
| LAS-B2-70 | 70 | 3.500 | .3123 | .250 | 3.600 | .75000 | .62500 | .18000 | 303 Stainless Steel | |
| LAS-B2-80 | 80 | 4.000 | .3123 | .250 | 4.100 | .75000 | .62500 | .18000 | 303 Stainless Steel | |
| LAS-B3-14 | 14 | .700 | .2498 | .187 | .800 | .50000 | .43700 | .12000 | 303 Stainless Steel | |
| LAS-B3-15 | 15 | .750 | .2498 | .187 | .850 | .50000 | .43700 | .12000 | 303 Stainless Steel | |
| LAS-B3-16 | 16 | .800 | .2498 | .187 | .900 | .50000 | .43700 | .12000 | 303 Stainless Steel | |
| LAS-B3-18 | 18 | .900 | .2498 | .187 | 1.000 | .50000 | .43700 | .12000 | 303 Stainless Steel | |
| LAS-B3-20 | 20 | 1.000 | .2498 | .187 | 1.100 | .50000 | .43700 | .12000 | 303 Stainless Steel | |
| LAS-B3-24 | 24 | 1.200 | .2498 | .187 | 1.300 | .50000 | .43700 | .12000 | 303 Stainless Steel | |
| LAS-B3-25 | 25 | 1.250 | .2498 | .187 | 1.350 | .50000 | .43700 | .12000 | 303 Stainless Steel | |
| LAS-B3-28 | 28 | 1.400 | .2498 | .187 | 1.500 | .50000 | .43700 | .12000 | 303 Stainless Steel | |
| LAS-B3-30 | 30 | 1.500 | .2498 | .187 | 1.600 | .50000 | .43700 | .12000 | 303 Stainless Steel | |
| LAS-B3-33 | 33 | 1.650 | .2498 | .187 | 1.750 | .50000 | .43700 | .12000 | 303 Stainless Steel | |
| LAS-B3-36 | 36 | 1.800 | .2498 | .187 | 1.900 | .50000 | .43700 | .12000 | 303 Stainless Steel | |
| LAS-B3-40 | 40 | 2.000 | .2498 | .187 | 2.100 | .50000 | .43700 | .12000 | 303 Stainless Steel | |
| LAS-B3-42 | 42 | 2.100 | .2498 | .187 | 2.200 | .50000 | .43700 | .12000 | 303 Stainless Steel | |
| LAS-B3-48 | 48 | 2.400 | .2498 | .187 | 2.500 | .50000 | .43700 | .12000 | 303 Stainless Steel | |
| LAS-B3-50 | 50 | 2.500 | .2498 | .187 | 2.600 | .50000 | .43700 | .12000 | 303 Stainless Steel | |
| LAS-B3-54 | 54 | 2.700 | .2498 | .187 | 2.800 | .50000 | .43700 | .12000 | 303 Stainless Steel | |
| LAS-B3-60 | 60 | 3.000 | .2498 | .187 | 3.100 | .50000 | .43700 | .12000 | 303 Stainless Steel | |
| LAS-B3-66 | 66 | 3.300 | .2498 | .187 | 3.400 | .50000 | .43700 | .12000 | 303 Stainless Steel | |
| LAS-B3-70 | 70 | 3.500 | .2498 | .187 | 3.600 | .50000 | .43700 | .12000 | 303 Stainless Steel | |
| LAS-B3-80 | 80 | 4.000 | .2498 | .187 | 4.100 | .50000 | .43700 | .12000 | 303 Stainless Steel | |
| LAS-B4-24 | 24 | 1.200 | .4998 | .375 | 1.300 | 1.00000 | .87500 | .25000 | 303 Stainless Steel | |
| LAS-B4-25 | 25 | 1.250 | .4998 | .375 | 1.350 | 1.00000 | .87500 | .25000 | 303 Stainless Steel | |
| LAS-B4-28 | 28 | 1.400 | .4998 | .375 | 1.500 | 1.00000 | .87500 | .25000 | 303 Stainless Steel | |
| LAS-B4-30 | 30 | 1.500 | .4998 | .375 | 1.600 | 1.00000 | .87500 | .25000 | 303 Stainless Steel | |
| LAS-B4-35 | 35 | 1.750 | .4998 | .375 | 1.850 | 1.00000 | .87500 | .25000 | 303 Stainless Steel | |
| LAS-B4-38 | 38 | 1.900 | .4998 | .375 | 2.000 | 1.00000 | .87500 | .25000 | 303 Stainless Steel | |
| LAS-B4-40 | 40 | 2.000 | .4998 | .375 | 2.100 | 1.00000 | .87500 | .25000 | 303 Stainless Steel | |
| LAS-B4-45 | 45 | 2.250 | .4998 | .375 | 2.350 | 1.00000 | .87500 | .25000 | 303 Stainless Steel | |
| LAS-B4-50 | 50 | 2.500 | .4998 | .375 | 2.600 | 1.00000 | .87500 | .25000 | 303 Stainless Steel | |
| LAS-B4-55 | 55 | 2.750 | .4998 | .375 | 2.850 | 1.00000 | .87500 | .25000 | 303 Stainless Steel | |
| LAS-B4-60 | 60 | 3.000 | .4998 | .375 | 3.100 | 1.00000 | .87500 | .25000 | 303 Stainless Steel | |
| LAS-B4-65 | 65 | 3.250 | .4998 | .375 | 3.350 | 1.00000 | .87500 | .25000 | 303 Stainless Steel | |
| LAS-B4-70 | 70 | 3.500 | .4998 | .375 | 3.600 | 1.00000 | .87500 | .25000 | 303 Stainless Steel | |
| LAS-B4-75 | 75 | 3.750 | .4998 | .375 | 3.850 | 1.00000 | .87500 | .25000 | 303 Stainless Steel | |
| LAS-B4-80 | 80 | 4.000 | .4998 | .375 | 4.100 | 1.00000 | .87500 | .25000 | 303 Stainless Steel | |
