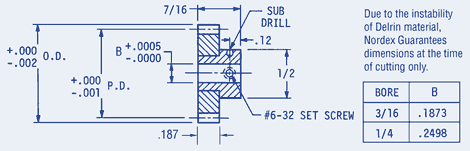

Spur Gears-Hub Style, Delrin® /st.st. hub 32 Pitch
|
|
| 20 degree pressure angle, Quality AGMA 10. Aluminum gears are anodized before gear cutting. | |
- T = Number of Teeth
- B = Bore
- OD = Outside Diameter
- PD = Pitch Diameter
- M1 = Gear Material
- M2 = Hub Material
| Part | Number of Teeth | Bore | Outside Diameter | Pitch Diameter | Gear Material | Hub Material | |
|---|---|---|---|---|---|---|---|
| Buy | View | Delrin | 303 Stainless Steel | ||||
| LLE-D2-20 | 20 | .1873 | .688 | .6250 | Delrin | 303 Stainless Steel | |
| LLE-D2-21 | 21 | .1873 | .719 | .6563 | Delrin | 303 Stainless Steel | |
| LLE-D2-22 | 22 | .1873 | .750 | .6875 | Delrin | 303 Stainless Steel | |
| LLE-D2-23 | 23 | .1873 | .781 | .7188 | Delrin | 303 Stainless Steel | |
| LLE-D2-24 | 24 | .1873 | .813 | .7500 | Delrin | 303 Stainless Steel | |
| LLE-D2-25 | 25 | .1873 | .844 | .7813 | Delrin | 303 Stainless Steel | |
| LLE-D2-26 | 26 | .1873 | .875 | .8125 | Delrin | 303 Stainless Steel | |
| LLE-D2-28 | 28 | .1873 | .938 | .8750 | Delrin | 303 Stainless Steel | |
| LLE-D2-30 | 30 | .1873 | 1.000 | .9375 | Delrin | 303 Stainless Steel | |
| LLE-D2-32 | 32 | .1873 | 1.063 | 1.0000 | Delrin | 303 Stainless Steel | |
| LLE-D2-36 | 36 | .1873 | 1.188 | 1.1250 | Delrin | 303 Stainless Steel | |
| LLE-D2-40 | 40 | .1873 | 1.313 | 1.2500 | Delrin | 303 Stainless Steel | |
| LLE-D2-42 | 42 | .1873 | 1.375 | 1.3125 | Delrin | 303 Stainless Steel | |
| LLE-D2-44 | 44 | .1873 | 1.438 | 1.3750 | Delrin | 303 Stainless Steel | |
| LLE-D2-46 | 46 | .1873 | 1.500 | 1.4375 | Delrin | 303 Stainless Steel | |
| LLE-D2-48 | 48 | .1873 | 1.563 | 1.5000 | Delrin | 303 Stainless Steel | |
| LLE-D2-50 | 50 | .1873 | 1.625 | 1.5625 | Delrin | 303 Stainless Steel | |
| LLE-D2-52 | 52 | .1873 | 1.688 | 1.6250 | Delrin | 303 Stainless Steel | |
| LLE-D2-56 | 56 | .1873 | 1.813 | 1.7500 | Delrin | 303 Stainless Steel | |
| LLE-D2-60 | 60 | .1873 | 1.938 | 1.8750 | Delrin | 303 Stainless Steel | |
| LLE-D2-63 | 63 | .1873 | 2.031 | 1.9688 | Delrin | 303 Stainless Steel | |
| LLE-D2-64 | 64 | .1873 | 2.063 | 2.0000 | Delrin | 303 Stainless Steel | |
| LLE-D2-66 | 66 | .1873 | 2.125 | 2.0625 | Delrin | 303 Stainless Steel | |
| LLE-D2-69 | 69 | .1873 | 2.219 | 2.1563 | Delrin | 303 Stainless Steel | |
| LLE-D2-72 | 72 | .1873 | 2.313 | 2.2500 | Delrin | 303 Stainless Steel | |
| LLE-D2-75 | 75 | .1873 | 2.406 | 2.3438 | Delrin | 303 Stainless Steel | |
| LLE-D2-80 | 80 | .1873 | 2.563 | 2.5000 | Delrin | 303 Stainless Steel | |
| LLE-D2-84 | 84 | .1873 | 2.688 | 2.6250 | Delrin | 303 Stainless Steel | |
| LLE-D2-88 | 88 | .1873 | 2.813 | 2.7500 | Delrin | 303 Stainless Steel | |
| LLE-D2-92 | 92 | .1873 | 2.938 | 2.8750 | Delrin | 303 Stainless Steel | |
| LLE-D3-20 | 20 | .2498 | .688 | .6250 | Delrin | 303 Stainless Steel | |
| LLE-D3-21 | 21 | .2498 | .719 | .6563 | Delrin | 303 Stainless Steel | |
| LLE-D3-22 | 22 | .2498 | .750 | .6875 | Delrin | 303 Stainless Steel | |
| LLE-D3-23 | 23 | .2498 | .781 | .7188 | Delrin | 303 Stainless Steel | |
| LLE-D3-24 | 24 | .2498 | .813 | .7500 | Delrin | 303 Stainless Steel | |
| LLE-D3-25 | 25 | .2498 | .844 | .7813 | Delrin | 303 Stainless Steel | |
| LLE-D3-26 | 26 | .2498 | .875 | .8125 | Delrin | 303 Stainless Steel | |
| LLE-D3-28 | 28 | .2498 | .938 | .8750 | Delrin | 303 Stainless Steel | |
| LLE-D3-30 | 30 | .2498 | 1.000 | .9375 | Delrin | 303 Stainless Steel | |
| LLE-D3-32 | 32 | .2498 | 1.063 | 1.0000 | Delrin | 303 Stainless Steel | |
| LLE-D3-36 | 36 | .2498 | 1.188 | 1.1250 | Delrin | 303 Stainless Steel | |
| LLE-D3-40 | 40 | .2498 | 1.313 | 1.2500 | Delrin | 303 Stainless Steel | |
| LLE-D3-42 | 42 | .2498 | 1.375 | 1.3125 | Delrin | 303 Stainless Steel | |
| LLE-D3-44 | 44 | .2498 | 1.438 | 1.3750 | Delrin | 303 Stainless Steel | |
| LLE-D3-46 | 46 | .2498 | 1.500 | 1.4375 | Delrin | 303 Stainless Steel | |
| LLE-D3-48 | 48 | .2498 | 1.563 | 1.5000 | Delrin | 303 Stainless Steel | |
| LLE-D3-50 | 50 | .2498 | 1.625 | 1.5625 | Delrin | 303 Stainless Steel | |
| LLE-D3-52 | 52 | .2498 | 1.688 | 1.6250 | Delrin | 303 Stainless Steel | |
| LLE-D3-56 | 56 | .2498 | 1.813 | 1.7500 | Delrin | 303 Stainless Steel | |
| LLE-D3-60 | 60 | .2498 | 1.938 | 1.8750 | Delrin | 303 Stainless Steel | |
| LLE-D3-63 | 63 | .2498 | 2.031 | 1.9688 | Delrin | 303 Stainless Steel | |
| LLE-D3-64 | 64 | .2498 | 2.063 | 2.0000 | Delrin | 303 Stainless Steel | |
| LLE-D3-66 | 66 | .2498 | 2.125 | 2.0625 | Delrin | 303 Stainless Steel | |
| LLE-D3-69 | 69 | .2498 | 2.219 | 2.1563 | Delrin | 303 Stainless Steel | |
| LLE-D3-72 | 72 | .2498 | 2.313 | 2.2500 | Delrin | 303 Stainless Steel | |
| LLE-D3-75 | 75 | .2498 | 2.406 | 2.3438 | Delrin | 303 Stainless Steel | |
| LLE-D3-80 | 80 | .2498 | 2.563 | 2.5000 | Delrin | 303 Stainless Steel | |
| LLE-D3-84 | 84 | .2498 | 2.688 | 2.6250 | Delrin | 303 Stainless Steel | |
| LLE-D3-88 | 88 | .2498 | 2.813 | 2.7500 | Delrin | 303 Stainless Steel | |
| LLE-D3-92 | 92 | .2498 | 2.938 | 2.8750 | Delrin | 303 Stainless Steel | |
