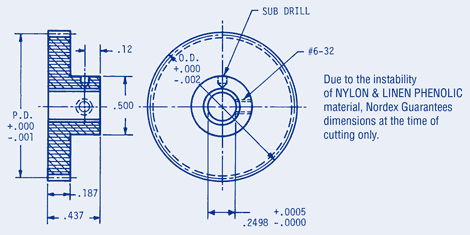

Spur Gear Hub Style Nylon & Linen phenolic 24 Pitch 1/4 Bore
|
|
| LLL series Linen Phenolic LLN series Nylon with st.st. bore sleeve AGMA Quality 10. 20 degree pressure angle. | |
- T = Number of Teeth
- PD = Pitch Diameter
- OD = Outside Diameter
| Part | Number of Teeth | Pitch Diameter | Outside Diameter | |
|---|---|---|---|---|
| Buy | View | |||
| LLL-C3-15 | 15 | .6250 | .708 | |
| LLL-C3-16 | 16 | .6666 | .750 | |
| LLL-C3-17 | 17 | .7083 | .792 | |
| LLL-C3-18 | 18 | .7500 | .833 | |
| LLL-C3-19 | 19 | .7916 | .875 | |
| LLL-C3-20 | 20 | .8333 | .917 | |
| LLL-C3-21 | 21 | .8750 | .958 | |
| LLL-C3-22 | 2 | .9166 | 1.000 | |
| LLL-C3-23 | 23 | .9583 | 1.042 | |
| LLL-C3-24 | 24 | 1.0000 | 1.083 | |
| LLL-C3-30 | 30 | 1.2500 | 1.333 | |
| LLL-C3-36 | 36 | 1.5000 | 1.583 | |
| LLL-C3-42 | 42 | 1.7500 | 1.833 | |
| LLL-C3-48 | 48 | 2.0000 | 2.083 | |
| LLL-C3-54 | 54 | 2.2500 | 2.333 | |
| LLL-C3-60 | 60 | 2.5000 | 2.583 | |
| LLN-C3-15 | 15 | .6250 | .708 | |
| LLN-C3-16 | 16 | .6666 | .750 | |
| LLN-C3-17 | 17 | .7083 | .792 | |
| LLN-C3-18 | 18 | .7500 | .833 | |
| LLN-C3-19 | 19 | .7916 | .875 | |
| LLN-C3-20 | 20 | .8333 | .917 | |
| LLN-C3-21 | 21 | .8750 | .958 | |
| LLN-C3-22 | 22 | .9166 | 1.000 | |
| LLN-C3-23 | 23 | .9583 | 1.042 | |
| LLN-C3-24 | 24 | 1.0000 | 1.083 | |
| LLN-C3-30 | 30 | 1.2500 | 1.333 | |
| LLN-C3-36 | 36 | 1.5000 | 1.583 | |
| LLN-C3-42 | 42 | 1.7500 | 1.833 | |
| LLN-C3-48 | 48 | 2.0000 | 2.083 | |
| LLN-C3-54 | 54 | 2.2500 | 2.333 | |
| LLN-C3-60 | 60 | 2.5000 | 2.583 | |
